air handling units: vallox

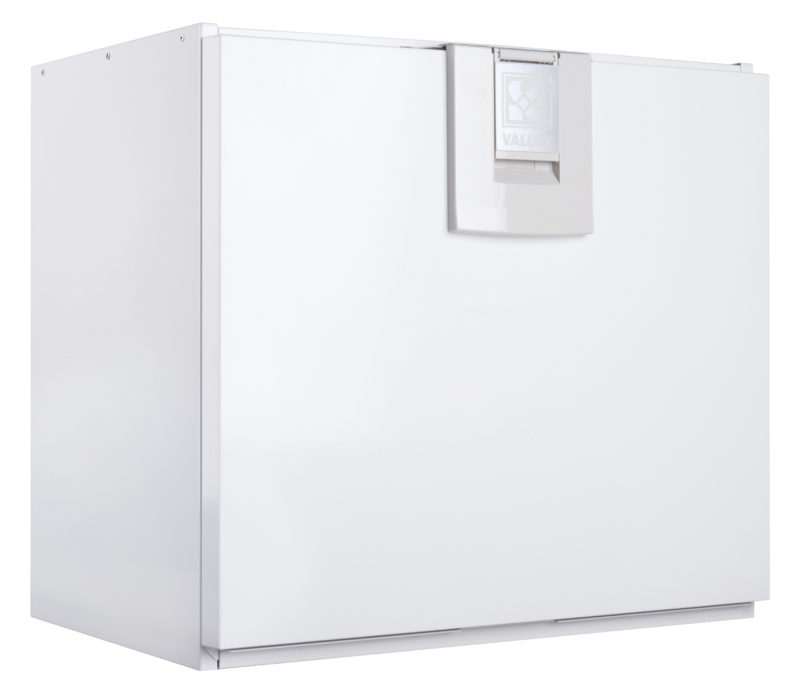

VALLOX 096 MV air handling unit
Vallox 096 MV is MyVallox product family’s smallest unit when compared with airflows, but with it’s features it’s as big as all the rest of MyVallox products. Built-in humidity sensor controls ventilation automatically. Changing between different operation states is done by using a clear and easy to use MyVallox Control -controller.
- Maximum living area m²: 130
- Annual efficiency class of heat recovery: A+
- Maximum living area m²: 130
- Annual efficiency class of heat recovery: A+
- Annual efficiency: 75 %
- Specific fan power class: B
- Specific fan power (SFP): 1 kW/(m3/s)
- Maximum extract air: 95 l/s, 100 Pa
- Maximum supply air: 92 l/s, 100 Pa
- Duct outlets: 4 x 125 mm
- Dimensions: 600 mm x 545 mm x 428 mm
- Weight incl. package: 53 kg
- Electrical connection: 230 V, 50 Hz, 5,1 A (plug)
- External control modes: 0-10 VDC, LAN, mobdus
- Extract air fan power: 0,119 kW 0,9 A EC
- Supply air fan power: 0,119 kW 0,9 A EC

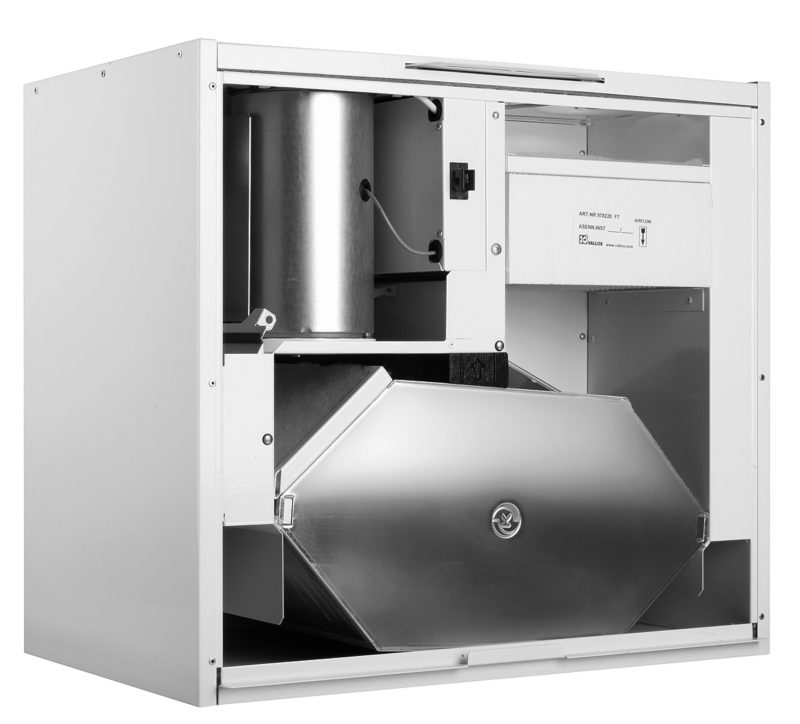

- Heat recovery cell: Cross-counter Flow
- Heat recovery bypass: Automatic
- Preheating: –
- Post-heating: Electric, 900 W
- Additional heating: –
- Type number: 3722
- Filters, supply air: G4 + F7
- Filters, extract air: G4
- Filter package: number 27
