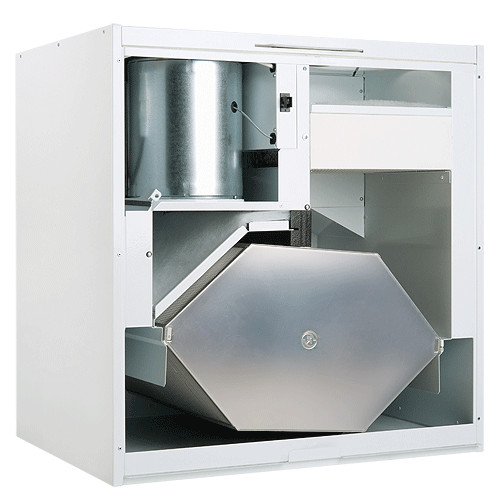

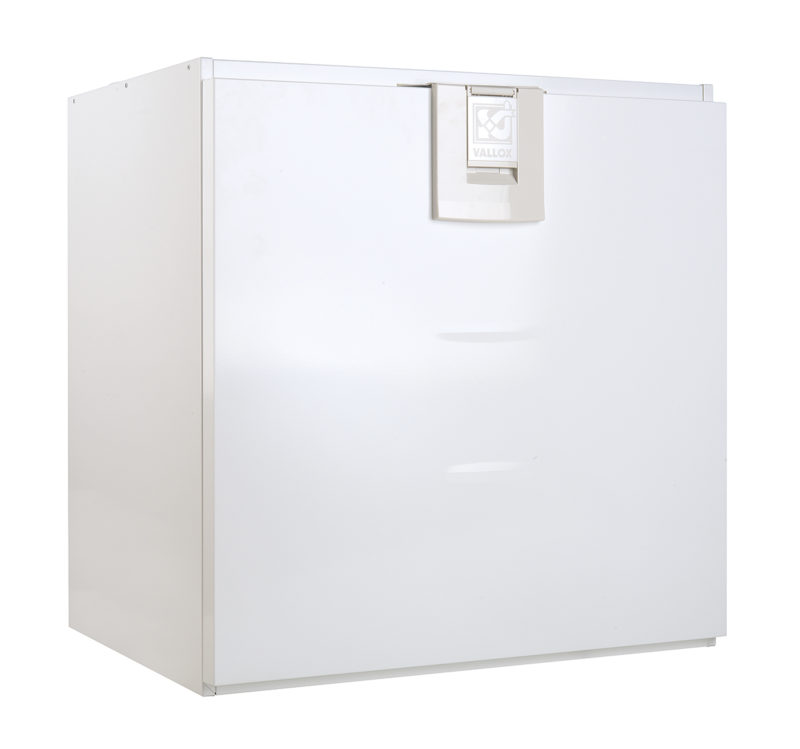

VALLOX 145 MV Air handling unit
Vallox 145 MV is a new era ventilation unit for large houses (max 250 m2). With built-in humidity sensor, unit will increase ventilation airflow if indoor humidity raises. Vallox 145 MV is equipped with graphical MyVallox Control -controller, but it can be controlled with LAN or through MyVallox Cloud -service also – where ever you are. This A+ energy class unit is for persons who require the best possible quality.
- Maximum living area m²: 250
- Annual efficiency class of heat recovery: A+
- Annual efficiency: 75 %
- Specific fan power class: A
- Specific fan power (SFP): 0,9 kW/(m3/s)
- Maximum extract air: 155 l/s, 100 Pa
- Maximum supply air: 150 l/s, 100 Pa
- Duct outlets: 4 x 200 mm
- Dimensions: 717 mm x 748 mm x 578 mm
- Weight incl. package: 88 kg
- Electrical connection: 230 V, 50 Hz, 11,9 A (plugg)
- External control modes: 0-10 VDC, LAN, Modbus
- Extract air fan power: 0,175 kW 1,25A EC
- Supply air fan power: 0,175 kW 1,25A EC
- Heat recovery cell: Cross-counter flow
- Heat recovery bypass: Automatic
- Preheating: –
- Post-heating: Electric, 900 W
- Additional heating: Electric, 1500 W
- Type number: 3712
- Filters, supply air: G4 + F7
- Filters, extract air: G4
- Filter package: number 28
