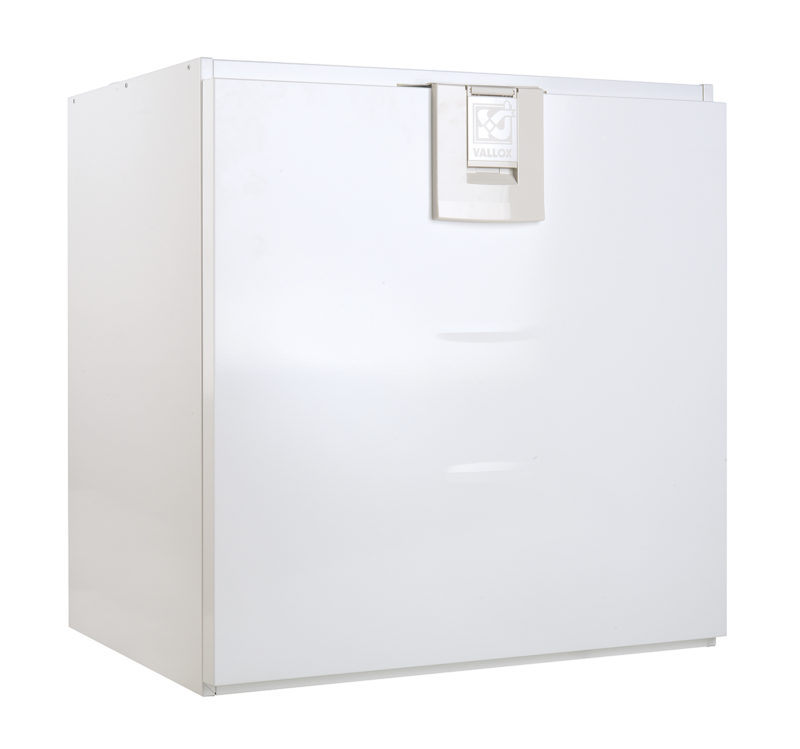

Vallox 245 MV Air handling unit
Energy-efficient air handling unit with recuperator
The Vallox 245 MV unit is designed for larger single-family houses (400 m2). Equipped with a humidity sensor, the control panel guarantees automatic operation when the humidity increases.
The Vallox 245 MV is equipped with the MyVallox control panel. Thanks to this, access to the ventilation unit via the Internet is possible. Vallox 245 MV is an energy-saving unit. SFP (specific fan power) is only 0.7 kWh / m2 / s. Additional high savings are also ensured by high temperature efficiency.
Features:
- Vallox 245 MV recuperator is designed for houses with an area of approx. 400 m2
- integrated humidity sensor
- 1500 W secondary electric heater

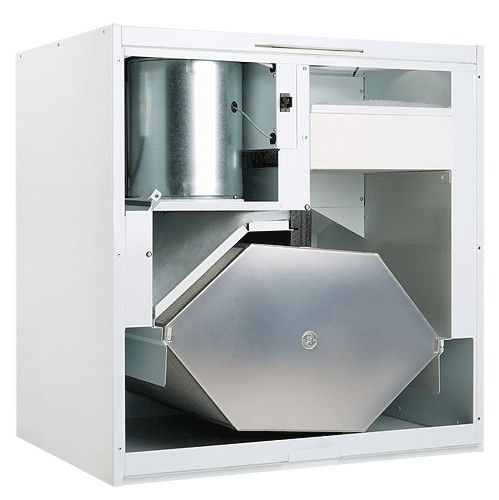

- counter-current aluminum heat exchanger
- automatic by-pass exchanger
- MyVallox Control electronic control panel with
the possibility of remote control via the Internet
- EC fans – direct current
- exhaust air: 1008 m3 / h
- intake air: 936 m3 / h
| For rooms: 400 m^2 |
| Heat recovery class: A+ |
| Heat recovery efficiency: > 85 % |
| Electricity outlay: < 0,36 Wh/m3 |
| Specific fan power (SFP): 0,7 kW/(m3/s) |
| Exhaust air: 936 m3/h, 100 Pa |
| Intake air: 943 m3/h, 100 Pa |
| Connectors: 4 x 250 mm |
| Dimensions: 1038 mm x 1241 mm x 773 mm |
| Gross weight: 200 kg |
| Electrical connection: 230 V, 50 Hz, 14,5 A |
| Exhaust fan: 0,17 kW 1,25 A EC |
| Intake fan: 0,17 kW 1,25 A EC |
| Heat exchanger: Countercurrent |
| Bypass heat exchanger: automatic |
| Initial heater: – |
| Secondary heater: electric, 1500 W |
| Additional heater: water, 3000W |
| Supply air filters: G4 + F7 |
| Extract filters: G4 |
| Filter set: number 29 |
