chimney elements: chimney systems

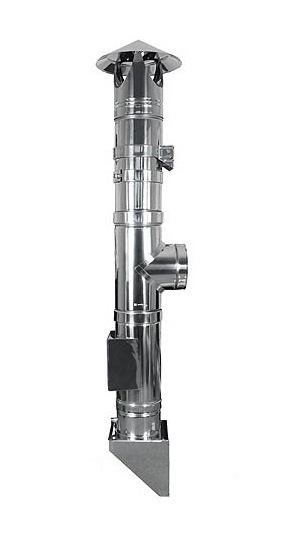

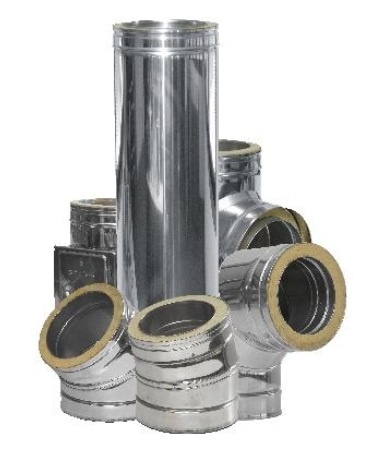

TWIN-WALL CHIMNEY
Usage:
– domestic installations C.O. and hot water
– industrial heating / domestic heating
– baking ovens
– open fireplaces
– hot air generators
– ventilation and smoke removal
Chimney systems are available on request. Detailed information is available from our sales representatives.
| Inner diameter Ø [mm] | 80 | 100 | 130 | 150 | 180 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Outer diameter Ø [mm] | 140 | 160 | 190 | 210 | 240 | 260 | 310 | 360 | 425 | 475 | 525 | 575 | 625 | 675 |

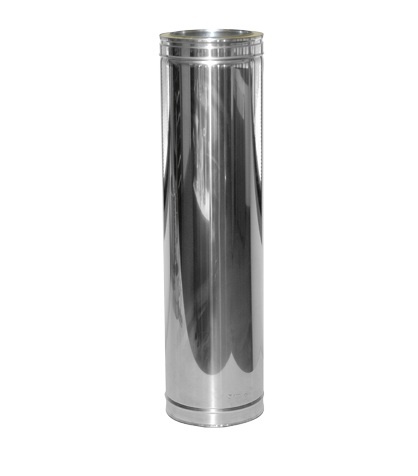

| Pipe weight 940 mm [kg] | 3,6 | 4,3 | 5,2 | 5,8 | 6,7 | 7,3 | 8,8 | 10,4 | 15,2 | 17,1 | 19,0 | 20,9 | 22,9 | 24,8 |
| Insulation [mm] | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 37,5 | 37,5 | 37,5 | 37,5 | 37,5 | 37,5 |
| Thickness of stainless steel [mm] | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
