fire dampers: rectangular dampers

KWP

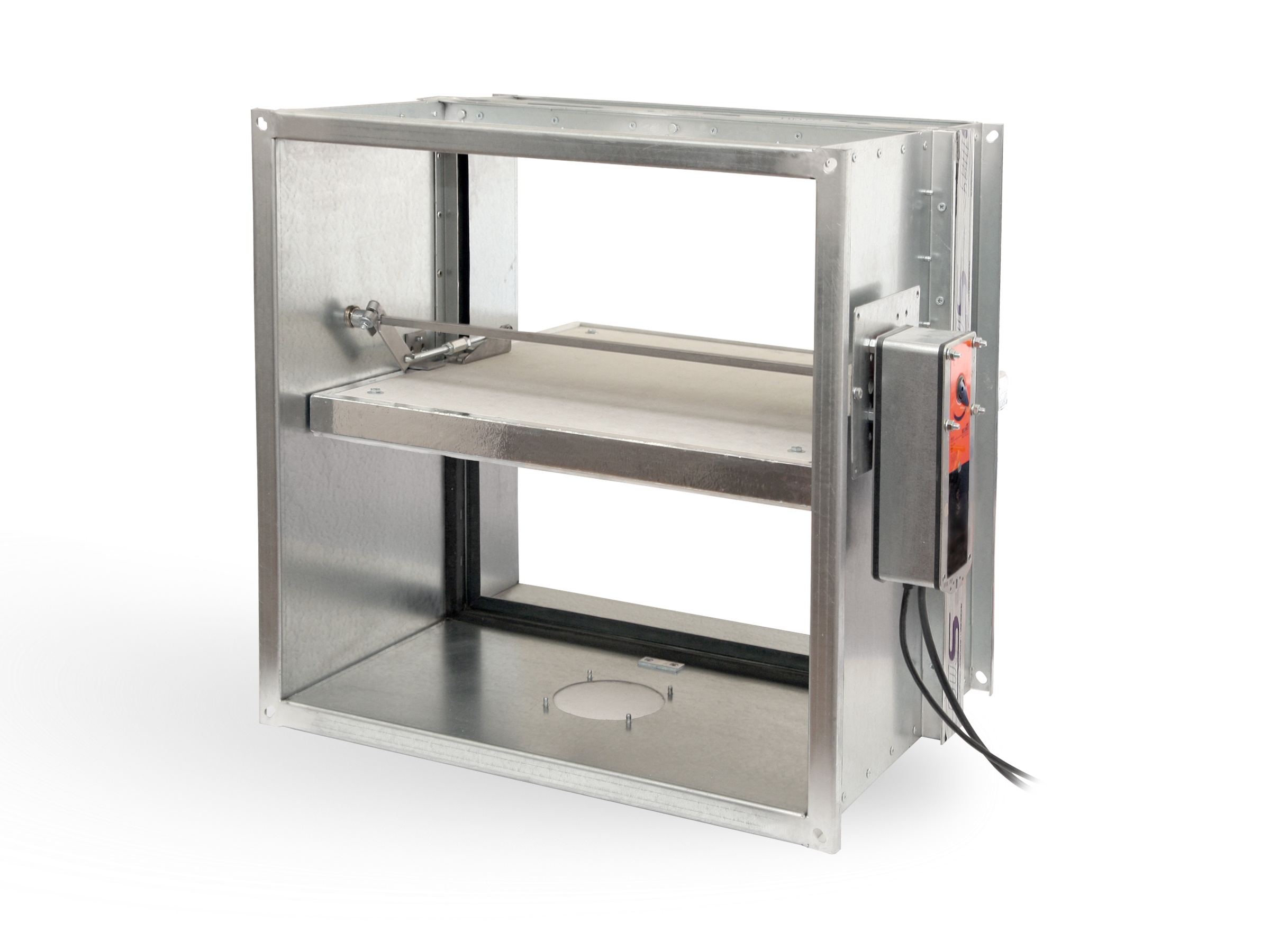

KWP fire dampers are designed for installation in ventilation systems as shut-off divisions, separating the zone covered by fire from the rest of the building. Depending on the installed drive, the flaps can work as shut-off fire dampers, fire or mixed ventilation flaps.

KWP are symmetrical dampers designed for horizontal installation (in walls) and vertical (ceilings). They can be installed in all types of building partitions (rigid partitions), including plasterboard walls as well as outside partitions.

These dampers are based on one unified connection. After connecting the appropriate element to it, a flap with a specific function is achieved. The damper has two inspection openings at the top and bottom, which means that there is no need to mount inspection covers on the channels before the flaps, for periodic inspections and testing. There is no need to specify a service page.

types of flaps:

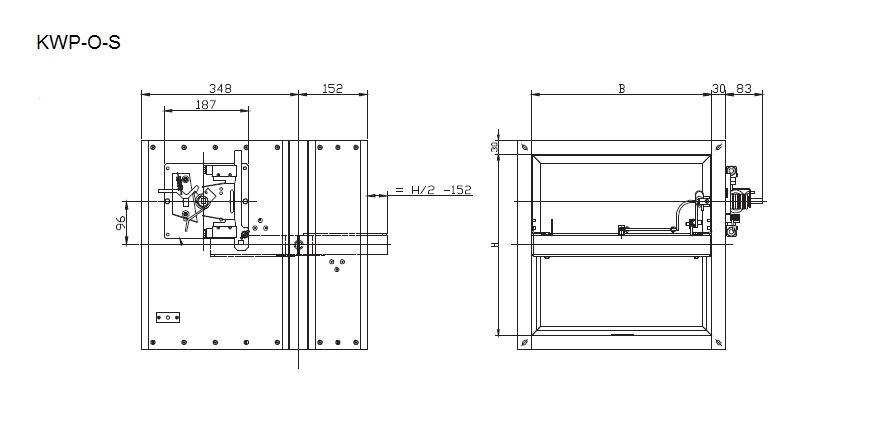

– KWP-O-S – fire damper for ventilation ducts with spring drive, without comfort function.

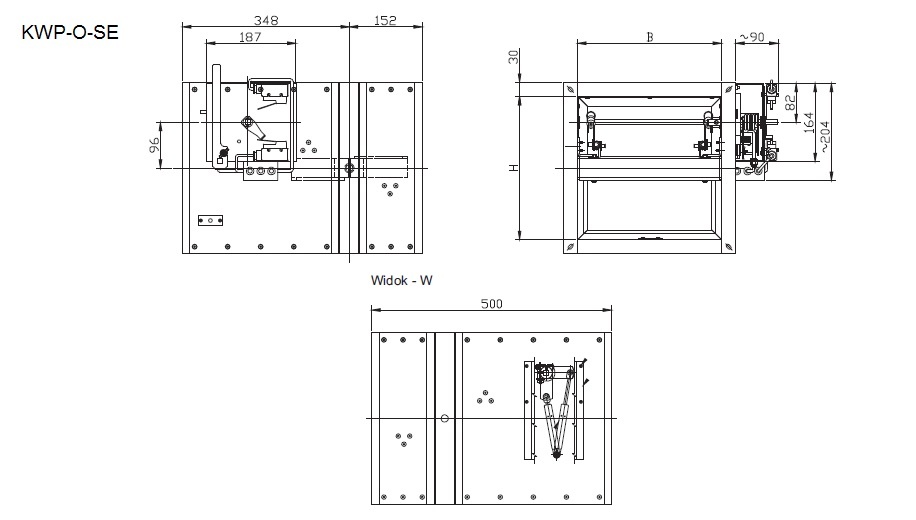

– KWP-O-SE – fire damper for ventilation ducts with spring, with separation of safety functions from the comfort function. The drive system is a spring mechanism with an electromagnet for remote release. To get the comfort function, you must additionally install the BL 24-48 SMY or BL 110-230 SMY actuator for remote opening.

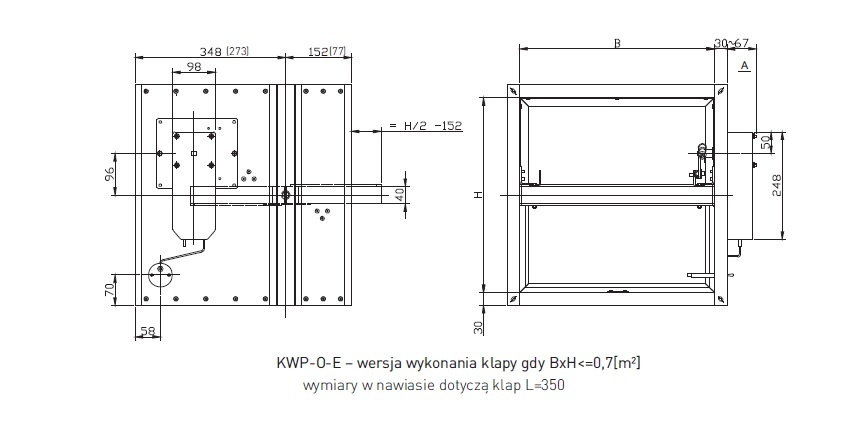

– KWP-O-E – fire damper for ventilation ducts with an actuator with a return spring, with a combined safety function and a comfort function. The control system is the BELIMO electric actuator of the BLF or BF series, or their counterparts from GRUNER or SIEMENS

– KWP-OM-E – fire damper for ventilation ducts, with actuators with return spring, with combined safety function and comfort function, with the possibility of using in mixed installations, where the damper can be used to regulate air flow or pressure regulation during normal operation general ventilation. The drive system is the BELIMO electric actuator of the BLF or BF series. The KWP-OM-E dampers can be installed with explosion proof actuators.

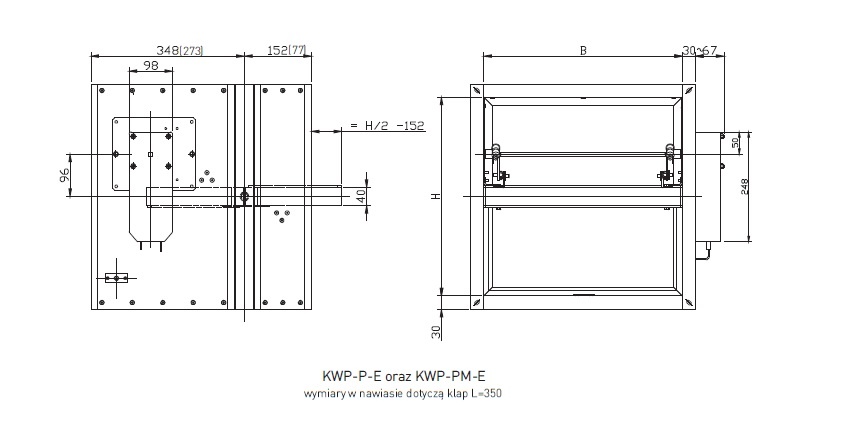

– KWP-P-E – flap for fire ventilation (normally closed). These dampers do not have thermal switches, and the electric actuators used in them do not have a return spring. The control system is the BELIMO BLE or BE series electric actuator.

– KWP-PM-E – flap for fire ventilation (normally closed) with the possibility of using in mixed installations, where the flap can be used for periodic ventilation or pressure regulation during normal operation of general ventilation. The drive system is an electric actuator from BELIMO series BLE or BE.

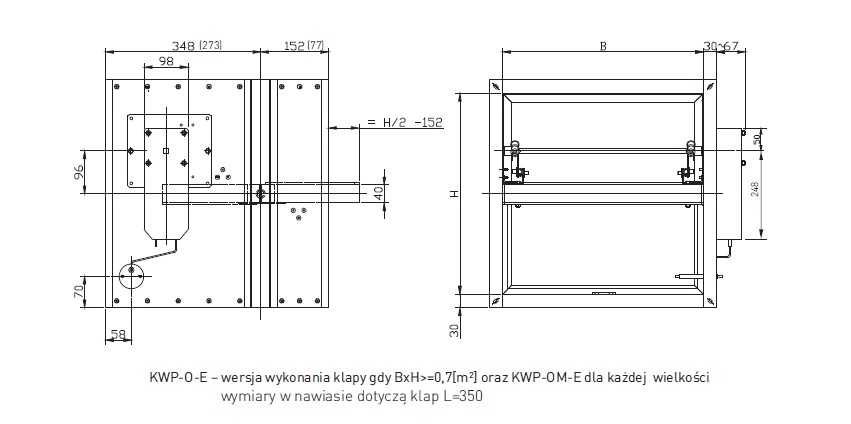

Fire resistance: EIS120 and EIS120 AA for KWP-P-E and KWP-PM-E flaps

Technical approval: AT-15-7401 / 2008

Certificate of Conformity: ITB-1610 / W

Hygienic Certificate: HK / B / 1301/01/2007

Note! Valuation of flaps on individual order.

The standard length of KWP dampers is L = 350 and L = 500. The custom-made manufacturer performs any intermediate quantity within the limits of the type series.

free cross section (m2)
B/H 200 250 300 350 400 450 500 550 …
200 0,019 0,027 0,035 0,043 0,051
250 0,025 0,035 0,046 0,056 0,067 0,077 0,088
300 0,031 0,044 0,057 0,070 0,083 0,096 0,109 0,122
350 0,037 0,052 0,068 0,083 0,099 0,114 0,130 0,145
400 0,043 0,061 0,079 0,097 0,115 0,133 0,151 0,169
450 0,049 0,069 0,090 0,110 0,131 0,151 0,172 0,192
500 0,055 0,078 0,101 0,124 0,147 0,170 0,193 0,216
550 0,061 0,086 0,112 0,137 0,163 0,188 0,214 0,239
600 0,067 0,095 0,123 0,151 0,179 0,207 0,235 0,263
650 0,103 0,134 0,164 0,195 0,225 0,256 0,286
700 0,112 0,145 0,178 0,211 0,244 0,277 0,310
750 0,120 0,156 0,191 0,227 0,262 0,298 0,333
800 0,167 0,205 0,243 0,281 0,319 0,357
850 0,178 0,218 0,259 0,299 0,340 0,380
900 0,189 0,232 0,275 0,318 0,361 0,404
950 0,245 0,291 0,336 0,382 0,427
1000 0,259 0,307 0,355 0,403 0,451
1050 0,272 0,323 0,373 0,424 0,474
1100 0,339 0,392 0,445 0,498
1150 0,355 0,410 0,466 0,521
1200 0,371 0,429 0,487 0,545
1250 0,447 0,508 0,568
1300 0,466 0,529 0,592
1350 0,484 0,550 0,615
1400 0,571 0,639
1450 0,592 0,662
1500 0,613 0,686



free cross section (m2)
B/H 600 650 700 750 800 850 900 950 1000
200
250
300 0,135
350 0,161 0,176 0,192
400 0,187 0,205 0,223 0,241 0,259
450 0,213 0,233 0,254 0,274 0,295 0,315 0,336
500 0,239 0,262 0,285 0,308 0,331 0,354 0,377 0,400 0,423
550 0,265 0,290 0,316 0,341 0,367 0,392 0,418 0,443 0,469
600 0,291 0,319 0,347 0,375 0,403 0,431 0,459 0,487 0,515
650 0,317 0,347 0,378 0,408 0,439 0,469 0,500 0,530 0,561
700 0,343 0,376 0,409 0,442 0,475 0,508 0,541 0,574 0,607
750 0,369 0,404 0,440 0,475 0,511 0,546 0,582 0,617 0,653
800 0,395 0,433 0,471 0,509 0,547 0,585 0,623 0,661 0,699
850 0,421 0,461 0,502 0,542 0,583 0,623 0,664 0,704 0,745
900 0,447 0,490 0,533 0,576 0,619 0,662 0,705 0,748 0,791
950 0,473 0,518 0,564 0,609 0,655 0,700 0,746 0,791 0,837
1000 0,499 0,547 0,595 0,643 0,691 0,739 0,787 0,835 0,883
1050 0,525 0,575 0,626 0,676 0,727 0,777 0,828 0,878 0,929
1100 0,551 0,604 0,657 0,710 0,763 0,816 0,869 0,922 0,975
1150 0,577 0,632 0,688 0,743 0,799 0,854 0,910 0,965 1,021
1200 0,603 0,661 0,719 0,777 0,835 0,893 0,951 1,009 1,067
1250 0,629 0,689 0,750 0,810 0,871 0,931 0,992 1,052 1,113
1300 0,655 0,718 0,781 0,844 0,907 0,970 1,033 1,096 1,159
1350 0,681 0,746 0,812 0,877 0,943 1,008 1,074 1,139 1,205
1400 0,707 0,775 0,843 0,911 0,979 1,047 1,115 1,183 1,251
1450 0,733 0,803 0,874 0,944 1,015 1,085 1,156 1,226 1,297
1500 0,759 0,832 0,905 0,978 1,051 1,124 1,197 1,270 1,343





 KWP Weight L=500 (kg)
H/B 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
200 15,2 18,1 21,1 24,1 27,1
300 18,1 21,4 24,7 28,1 31,4 34,7 38,1 41,4
400 21,0 24,7 28,3 32,0 35,7 41,4 43,0 46,7 50,4 54,1 57,7
500 27,9 31,9 36,0 40,0 44,0 48,0 52,0 56,0 60,1 64,1 68,1 72,1 76,1
600 31,2 35,5 39,9 44,3 48,6 53,0 57,3 61,7 66,0 70,4 74,7 79,1
700 39,1 43,8 48,5 53,2 57,9 65,9 70,9 72,0 76,7 81,4
800 42,7 47,8 52,8 57,9 62,9 67,9 73,0 78,0 83,1
900 51,7 57,1 62,5 67,9 73,2 78,6 84,0
1000 55,7 61,4 67,1 72,8 78,5 84,3





KWP Weight L=350 (kg)
H/B 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
200 13,3 15,7 18,2 20,7 23,3
300 15,7 18,5 21,3 24,3 27,1 29,9 32,8 35,6
400 18,1 21,3 24,5 27,7 30,9 36,1 37,2 40,5 43,7 46,9 50,0
500 24,1 27,6 31,2 34,7 38,2 41,8 45,3 48,8 52,4 55,9 59,5 63,0 66,5
600 26,9 30,7 34,6 38,5 42,4 46,3 50,1 54,0 57,8 61,8 65,6 69,5
700 33,8 34,1 42,3 46,5 50,7 58,2 62,7 63,4 67,6 71,8
800 36,9 41,6 46,1 50,7 55,2 59,7 64,4 68,9 73,5
900 37,1 50,7 54,8 59,7 64,6 69,5 74,4
1000 40,6 53,7 58,9 64,2 69,4 74,7
