air conditioner units: wall mounted

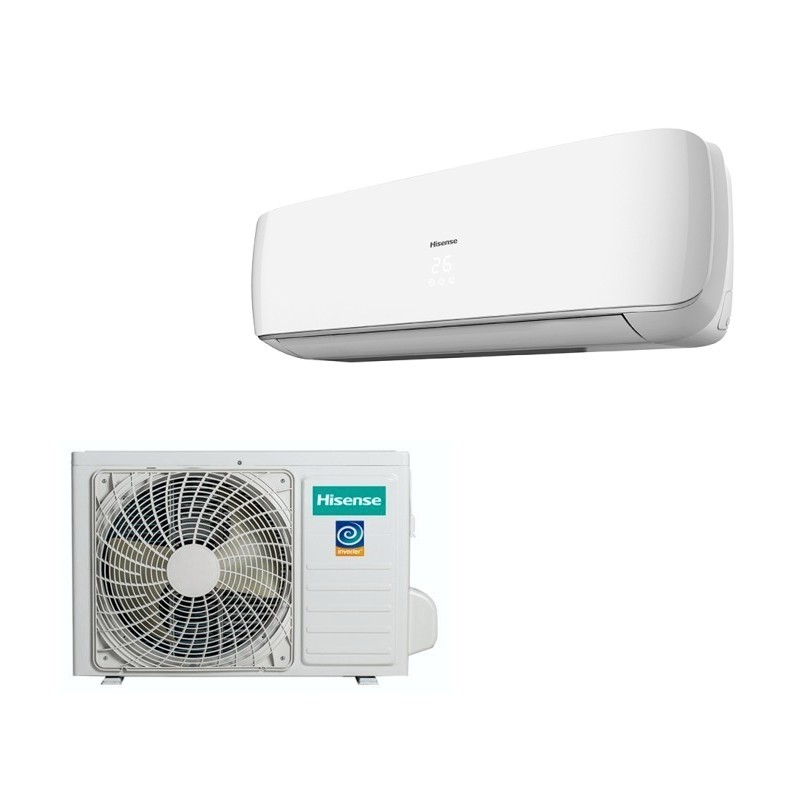

Hisense Mini Apple Pie
AS-09UR4SVETG6, AS-12UR4SVETG6
AS-18UR4SFATG6, AS-24UR4SDBTG6
Split type wall unit with I Feel function

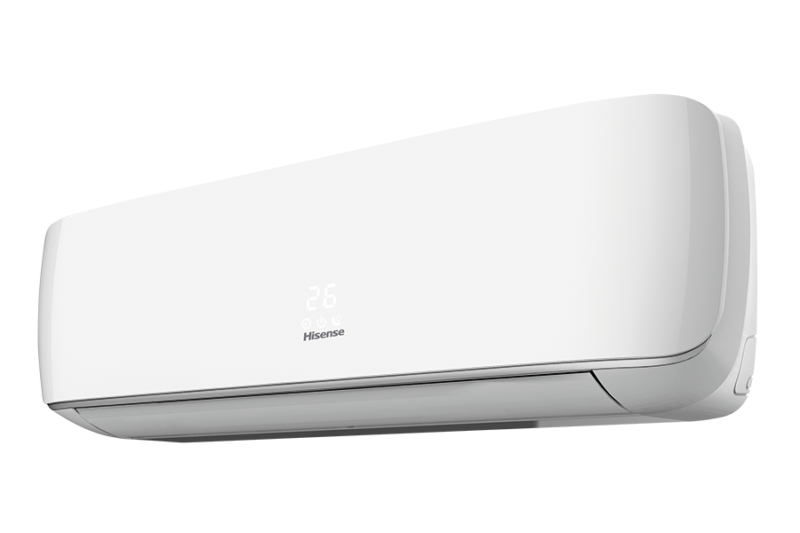

The Apple Pie Hisense mini wall air conditioner features a super-slim unit design and a modern casing. Delicate, hidden display fits the latest design standards.

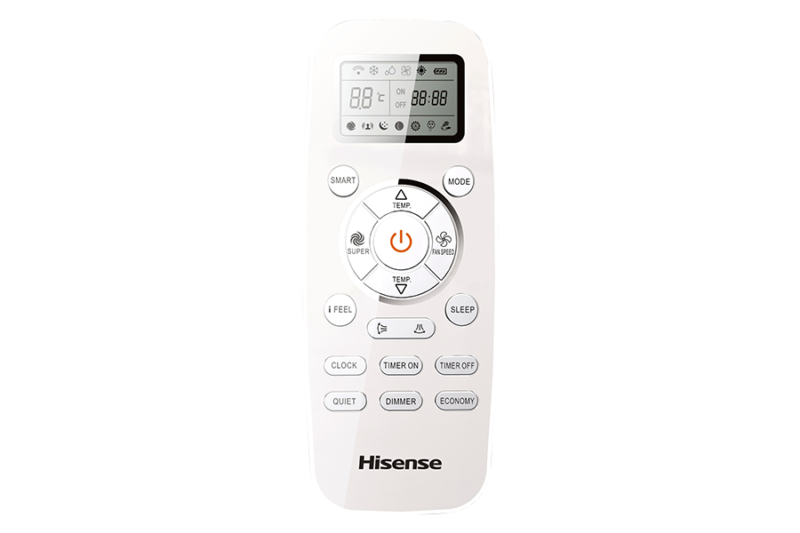

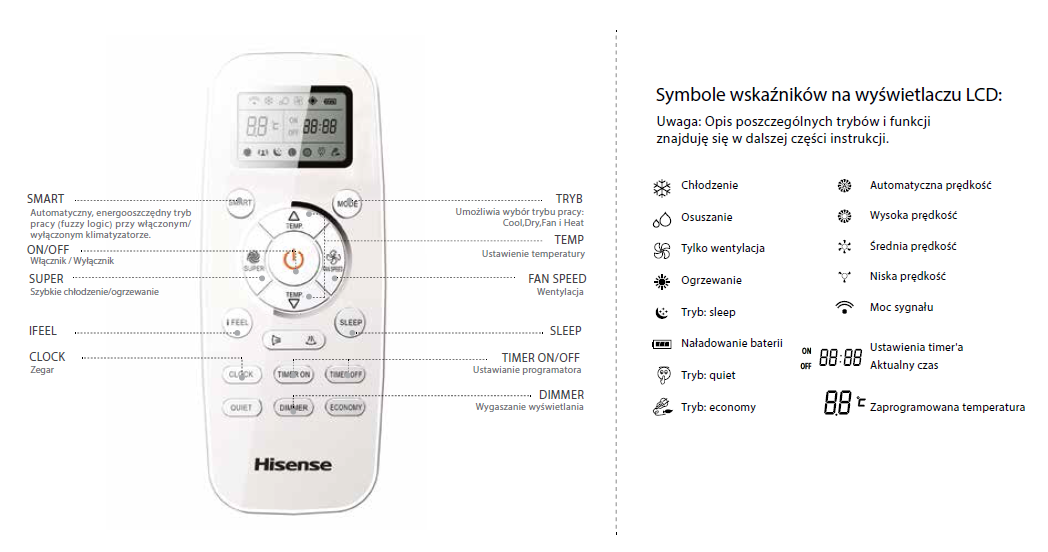

The Mini Apple Pie is equipped with the I Feel function based on the actual temperature reading sent automatically by the wireless remote controller.
Power consumption in standby mode drops to 1W.
The Mini Apple Pie air conditioner uses a 4-in-1 air filter: a catechin filter (removes unpleasant odors), ion-silver (elimination of bacteria and other microorganisms), HEPA (pollen removal), an aromatic filter (the ability to apply your favorite fragrances)
The most important features:
– quick cooling and heating
– power consumption in standby mode: 1W
– autodiagnostics and protection automation
– high density filter
– automatic defrost
– optional silent operation mode and four night work curves (work modes adapted to different needs of users)
– Optional air conditioner Mini Apple Pie can be equipped with a Wi-Fi module controlled by smartphones with the Android or IOS operating system
– energy class in A ++ cooling mode, in heating mode A
– coolant R-410A
| Model | AS-09UR4SVETG6 | AS-12UR4SVETG6 | AS-18UR4SFATG6 | AS-24UR4SDBTG6 | ||
| cooling efficiency | W | 2600 (1600-3300) | 3500 (1600-4000) | 5000 (2500-5750) | 6500 (2300-7300) | |
| heating efficiency | W | 2800 (1600-3000) | 3800 (1600-4100) | 5300 (2250-6250) | 6800 (2300-8000) | |
| SEER | 6,1 | 6,1 | 6,1 | 6,3 | ||
| SCOP | 3,8 | 3,8 | 3,8 | 3,8 | ||
| Classes | cooling | A++ | A++ | A++ | A++ | |
| heating | A | A | A | A | ||
| Air flow | inside unit | m3/h | 500 | 600 | 900 | 1100 |
| Noise | inside unit (high/medium/low/silent) | db(A) | 40/37/33/26 | 40/37/33/26 | 46/43/39/35 | 50/45/40/36 |
| outside unit | db(A) | 55 | 55 | 58 | 59 | |
| Rated current | cooling heating | A | 3,7/3,5 | 4,7/4,6 | 6,9/6,6 | 8,7/8,4 |
| Inside unit sizes | Width x height x depth | mm | 850 x 270 x 208 | 850 x 270 x 208 | 960 x 315 x 230 | 1131 x 315 x 230 |
| Outside unit sizes | Width x height x depth | mm | 715 x 482 x 240 | 715 x 482 x 240 | 830 x 634 x 287 | 884 x 793 x 366 |
| Weight | inside/outside unit | kg | 8,5 / 28 | 8,5 / 29 | 12 / 38 | 13 / 56 |
