air conditioner units: consoles

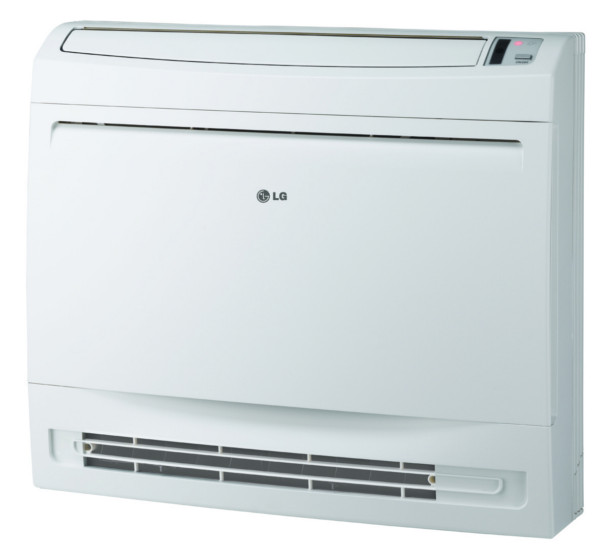

Consoles Split LG
CQ09/CQ12/CQ18
LG consoles ensure optimum airflow for cooling and heating.

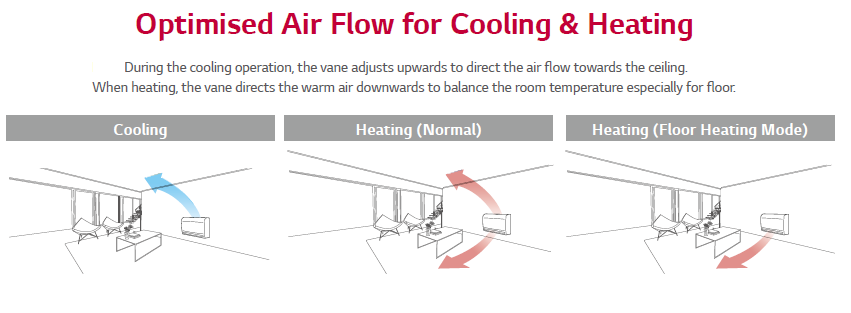

In cooling mode, the blinds are in the upper position to direct the air flow towards the ceiling. During the heating, the blinds direct the warm air down to obtain a homogeneous room temperature, especially at the floor.
Consoles quickly heat the floor thanks to their powerful efficiency and heating efficiency. Using the lower airflow in the floor heating mode they are able to reach the set temperature in less than 9 minutes.

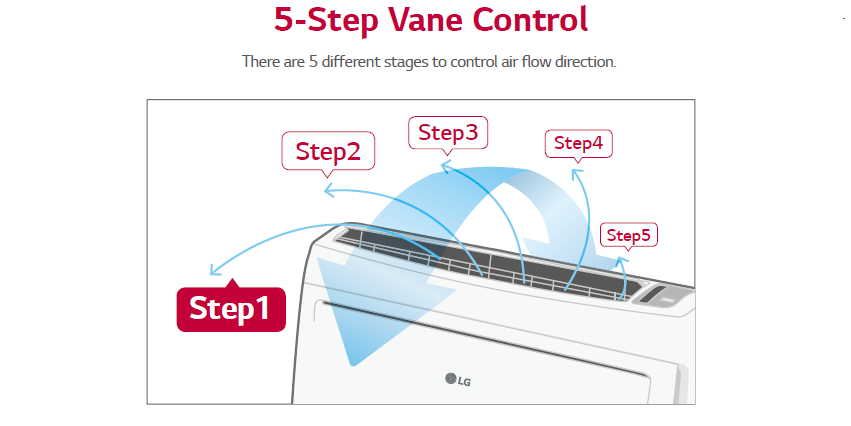

A wide, 5-degree vertical airflow control allows precise settings.

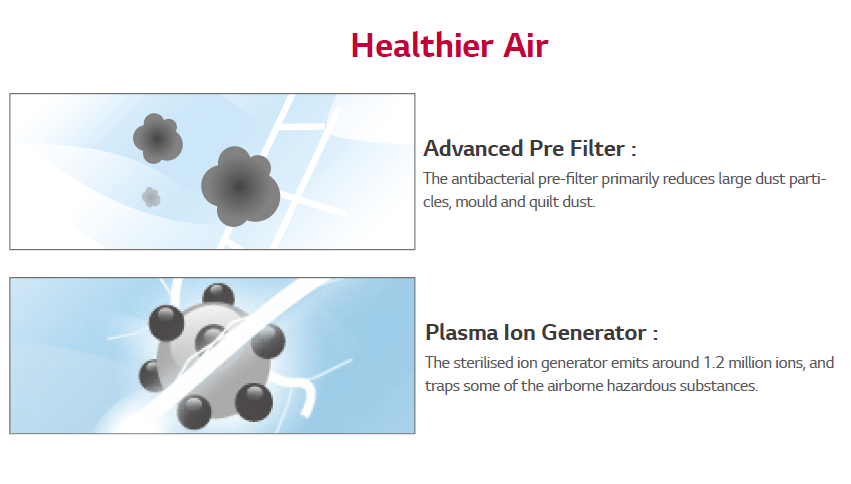

W konsolach zastosowano 3 etapowy system filtrowania powietrza, dzięki czemu powietrze w pomieszczeniu jest zdrowsze, czyste, wolne od alergenów.
The Split air conditioner line was the first to adopt solutions from advanced VRF systems, which consisted of simultaneous temperature and pressure control.
The use of an additional sensor in the new LG aggregates, which directly analyzes and controls the pressure and temperature of the refrigerant, has improved the equipment parameters in terms of precision and work efficiency.
| Inside unit model | CQ09.NA0 | CQ12.NA0 | CQ18.NA0 |
| Cooling min./nom./maks. [kW] | 1,3 / 2,6 / 3,4 | 1,4 / 3,5 / 3,7 | 2,0 / 4,6 / 5,5 |
| Heating min./nom./maks. [kW] | 1,4 / 3,1 / 4,2 | 1,6 / 4,0 / 4,4 | 2,2 / 4,8 / 6,0 |
| Power [Ø/V/Hz] | 1 / 220-240 / 50 | 1 / 220-240 / 50 | 1 / 220-240 / 50 |
| SEER | 5,11 | 5,31 | 4,71 |
| SCOP | 3,81 | 3,81 | 3,81 |
| Air flow high / medium / low [m3/min] |
8,5 / 6,7 / 5,0 | 9,0 / 6,9 / 5,2 | 10,1 / 8,6 /7,2 |
| Sound power level, cooling, max [dB(A)] |
53 | 56 | 60 |
| Inside unit sizes [width x height x depth] | 700 x 600 x 210 | 700 x 600 x 210 | 700 x 600 x 210 |
| Weight [kg] | 14 | 14 | 14 |
