air conditioner units: ceiling/floor units
Mitsubishi ceilling PCA-RP

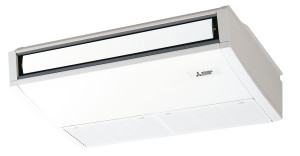

Ceilling unit PCA-RP, seria Mr. Slim
Single Split, Standard Inverter
Mr. series Slim designed for medium-sized rooms. It is perfect for commercial and technical applications.
The PCA-RP ceiling-mounted device is a unit that is ideal for use in technical rooms and server rooms with a demand for cooling power up to 3.6 kW. In combination with the Power Inverter series external devices, high efficiency is achieved. This complete series includes devices with a cooling capacity from 3.6 to 13.4 kW in seven sizes. In special combinations for technical rooms, up to 95% of power is achieved.
Areas
Technical rooms and server rooms, stores
Advantages:
- Compact and easy to install devices
- Combinations in technical rooms with an overt power of 95%
- Redundancy function with standardization of working time
 |
 |
| PAC-YT52CRA | PAR-31MAA |
| Wired controller | Wired controller Deluxe |
| Inside unit | PCA-RP35KAQ | PCA-RP50KAQ | PCA-RP60KAQ | PCA-RP71KAQ | PCA-RP100KAQ | PCA-RP125KAQ | PCA-RP140KAQ | |
| Cooling power (kW) | 3,6 (1,4-3,9) | 5,0 (2,3-5,6) | 5,7 (2,3-6,3) | 7,1 (2,8-8,1) | 9,4 (4,9-11,2) | 12,3 (5,5-14,0) | 13,6 (5,5-15,0) | |
| Heating power (kW) | 4,1 (1,7-5,0) | 5,5 (1,7-6,6) | 6,9 (2,5-8,0) | 7,9 (2,6-10,2) | 11,2 (4,5-12,5) | 14,0 (5,0-16,0) | 16,0 (5,0-18,0) | |
| SEER | Cooling | 5,9 | 5,7 | 6,0 | 6,0 | 5,1 | – | – |
| SCOP | Heating | 4,1 | 4,0 | 4,0 | 4,0 | 3,8 | – | – |
| Energy efficiency class cooling / heating | A+/A+ | A+/A+ | A+/A+ | A+/A+ | A/A | -/- | -/- | |
| Air flow (m3/h) | Low | 600 | 600 | 900 | 960 | 1320 | 1380 | 1440 |
| Medium 1 | 660 | 660 | 960 | 1080 | 1440 | 1500 | 1560 | |
| Medium 2 | 780 | 780 | 1020 | 1020 | 1560 | 1620 | 1740 | |
| High | 840 | 900 | 1140 | 1200 | 1680 | 1740 | 1920 | |
| Noice level dB(A) | Low | 31 | 32 | 33 | 35 | 37 | 39 | 41 |
| High | 39 | 40 | 40 | 41 | 43 | 45 | 48 | |
| Wymiary (mm) | Width | 960 | 960 | 1280 | 1280 | 1600 | 1600 | 1600 |
| Depth | 680 | 680 | 680 | 680 | 680 | 680 | 680 | |
| Height | 230 | 230 | 230 | 230 | 230 | 230 | 230 | |
| Weight (kg) | 24 | 25 | 32 | 32 | 36 | 38 | 39 | |
| Type | Description |
| PAC-YT52CRA | Wired controller |
| PAR-31MAA | Wired controller Deluxe |
| PAR-SL94B-E | Wireless controller |
