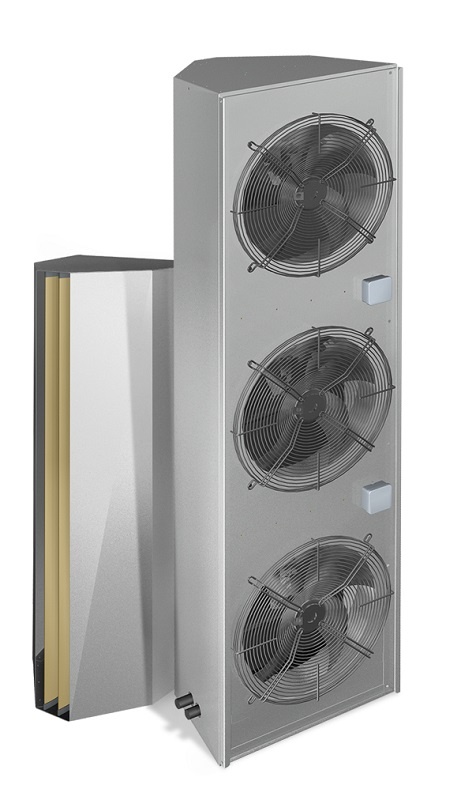

Industrial curtain GUARDPRO
GUARDPRO is a line of professional and effective devices designed to protect against heat loss of industrial facilities. The curtain, thanks to its high efficiency and the use of a modular structure, makes it possible to secure entry gates in the 3-7 m range.
The modular structure allows the curtain to be installed vertically and horizontally.
Optional curtain equipment:
– DOORSTOP door switch – switching on / off the curtain motors when opening / closing the gate (protection class IP67)
– SPEEDER speed controller – five-speed speed regulation. Control of 3, 6 or 10 fans (SPEEDER 3, SPEEDER 6, SPEEDER 10)
| Water curtain | Cold curtain | |||
| GUARDPRO 150W | GUARDPRO 200W | GUARDPRO 150C | GUARDPRO 200C | |
| Length [m] | 1,5 | 2 | 1,5 | 2 |
| Maximum height[m] | 7 | |||
| range of heating power* [kW] | 25 | 38 | – | – |
| maximum air flow [m3/h] | 6250 | 8600 | 6500 | 8800 |
| maximum working pressure [MPa] | 1,6 | – | ||
| diameter of connecting sockets [inches] | 3/4 | – | ||
| maximum water pressure drop ** [kPa] | 5,31 | 6,08 | – | |
| Voltage [V/Hz] | 400/50 | |||
| the power of the electric motor [kW] | 0,60 | 0,85 | 0,55 | 0,80 |
| maximum power consumption [A] | 1,20 | 1,70 | 1,15 | 1,65 |
| mass with water / no water [kg] | 47 | 65 | 43 | 59 |
| IP protection class | IP44 | |||
* heating power range for 90/70 ° C water temperature and inlet air temperature + 10 ° C
** maximum water pressure drop for 90/70 ° C factor parameters and inlet air temperature + 10 ° C
