Galvanized nut
Nuts made of carbon steel. Coated galvanic zinc coating with white passivation. Class of mechanical properties 6 and 8.
The INOX version is made of stainless or acid-proof steel.
On special order, it is possible to manufacture nuts with galvanic zinc coating with yellow passivation, galvanic zinc coating with black passivation or nickel coating.

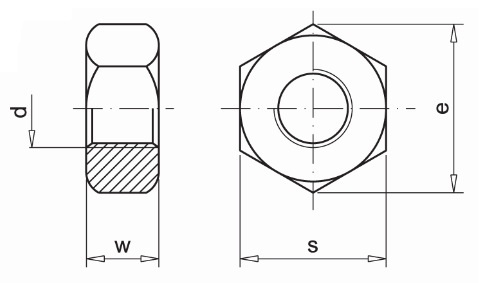

| d [mm] | s [mm] | e [mm] | w [mm] |
| M6 | 10,0 | 11,05 | 5,0 |
| M8 | 13,0 | 14,38 | 6,5 |
| M10 | 17,0 | 18,90 | 8,0 |
