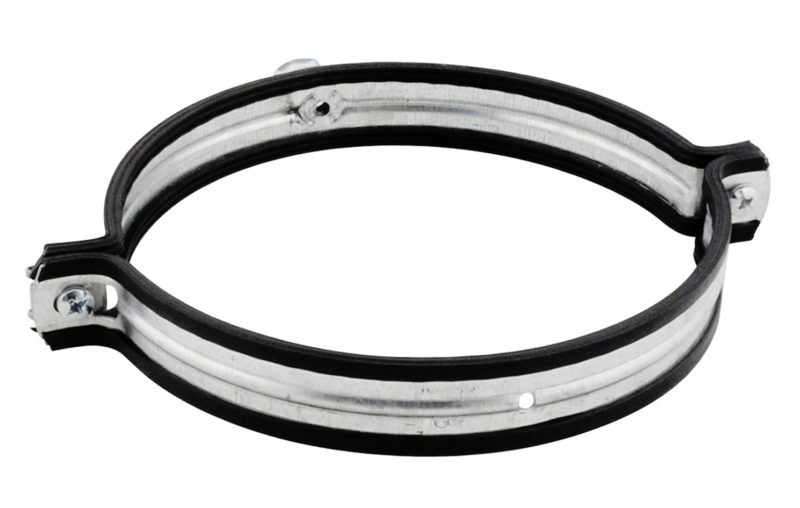

assembly materials: clips and band
BIS Aero® Walraven

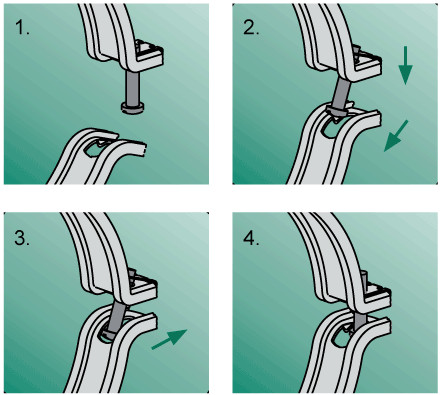

- with quick locking system
- patented design
- rubber lining is conjoined with the clamp (lining stays attached when sliding the spiral duct)
- material: pipe clamp made of steel
- pre-galvanized
- noise insulating lining made of TPE rubber, black

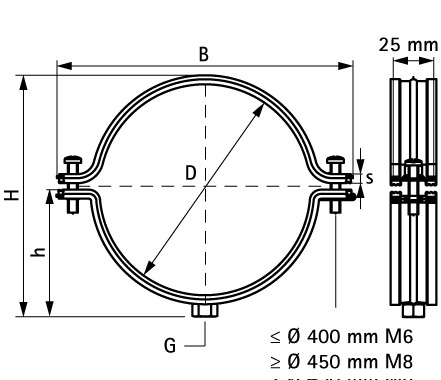

| Part No. | D(mm) | G | B(mm) | H(mm) | h(mm) | s(mm) | Fa,z(N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|
| 4115080 | 80 | M8 | 134 | 84 | 54 | 1.25 | 700 | 25 |
| 4115100 | 100 | M8 | 155 | 115 | 64 | 1.25 | 700 | 25 |
| 4115125 | 125 | M8 | 179 | 139 | 76 | 1.25 | 700 | 20 |
| 4115140 | 140 | M8 | 197 | 162 | 85 | 1.25 | 720 | 20 |
| 4115150 | 150 | M8 | 205 | 164 | 88 | 1.25 | 720 | 20 |
| 4115160 | 160 | M8 | 215 | 175 | 93 | 1.25 | 720 | 20 |
| 4115180 | 180 | M8 | 238 | 202 | 105 | 1.25 | 720 | 20 |
| 4115200 | 200 | M8 | 255 | 215 | 114 | 1.25 | 720 | 20 |
| 4115225 | 225 | M8 | 280 | 246 | 126 | 1.25 | 720 | 20 |
| 4115250 | 250 | M8 | 306 | 265 | 138 | 1.25 | 720 | 20 |
| 4115280 | 280 | M8 | 336 | 302 | 154 | 1.25 | 720 | 25 |
| 4115300 | 300 | M8 | 356 | 322 | 164 | 1.25 | 720 | 25 |
| 4115315 | 315 | M8 | 371 | 332 | 172 | 1.25 | 720 | 25 |
| 4115355 | 355 | M8 | 411 | 371 | 192 | 1.25 | 720 | 25 |
| 4115400 | 400 | M8 | 457 | 423 | 214 | 1.25 | 720 | 20 |
| 4115450 | 450 | M8/10 | 524 | 481 | 238 | 2.00 | 1,150 | 3 |
| 4115500 | 500 | M8/10 | 574 | 531 | 263 | 2.00 | 1,150 | 3 |
| 4115560 | 560 | M8/10 | 634 | 591 | 293 | 2.00 | 1,150 | 3 |
| 4115600 | 600 | M8/10 | 674 | 632 | 313 | 2.00 | 1,150 | 3 |
| 4115630 | 630 | M8/10 | 705 | 669 | 338 | 2.00 | 1,150 | 3 |
| 4115710 | 710 | – | 785 | 732 | 366 | 2.00 | 1,150 | 3 |
| 4115800 | 800 | – | 875 | 817 | 409 | 2.00 | 1,150 | 3 |
| 4115900 | 900 | – | 975 | 917 | 459 | 2.00 | 1,150 | 3 |
| 4115999 | 1,000 | – | 1,076 | 1,018 | 509 | 2.00 | 1,150 | 3 |
| 4115997 | 1,120 | – | 1,196 | 1,138 | 569 | 2.00 | 1,150 | 3 |
| 4115998 | 1,250 | – | 1,326 | 1,268 | 634 | 2.00 | 1,150 | 3 |
