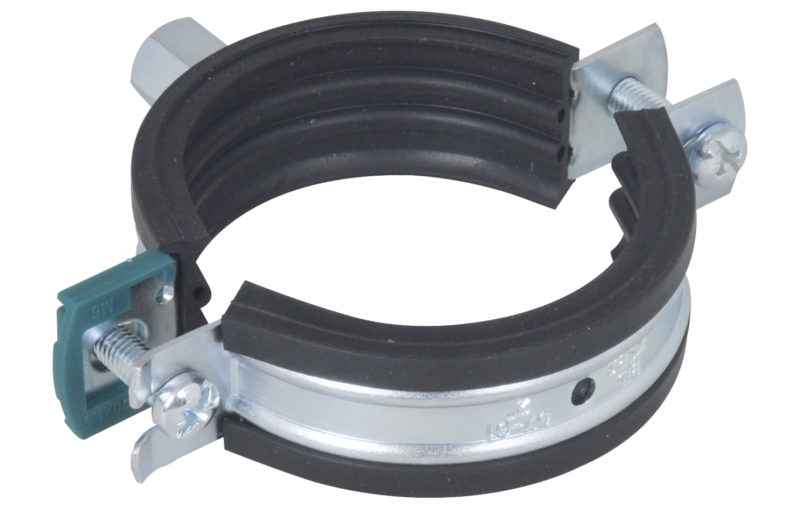

two-screw clamp

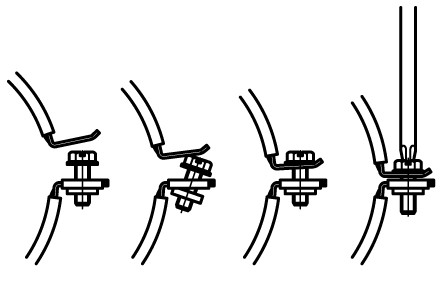

with quick locking system
material: steel
surface protection:
- product is part of the BIS UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
noise insulating lining, EPDM rubber, black
sound insulating lining according DIN 4109

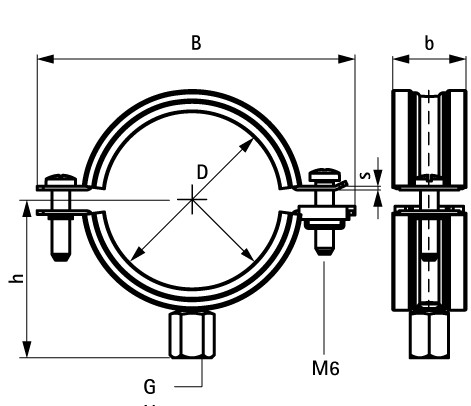

Part No.	D(mm)	D(“)	DN(mm)	G	B(mm)	h(mm)	b x s(mm)	Fa,z(N)	Pack 1
3108014	10 – 14	¼	8	M8/10	59	29	20 x 1.25	700	50
3108019	15 – 19	⅜	10	M8/10	63	31	20 x 1.25	700	50
3108023	20 – 23	½	15	M8/10	68	33	20 x 1.25	700	50
3108028	25 – 28	¾	20	M8/10	74	36	20 x 1.25	700	50
3108035	31 – 35	1	25	M8/10	80	39	20 x 1.25	700	50
3108039	36 – 39	–	–	M8/10	84	41	20 x 1.25	700	50
3108045	40 – 45	1¼	32	M8/10	91	45	20 x 1.25	700	50
3108052	48 – 52	1½	40	M8/10	97	48	20 x 1.25	700	50
3108058	54 – 58	–	–	M8/10	104	51	20 x 1.25	700	50
3108064	60 – 64	2	50	M8/10	109	54	20 x 1.25	700	50
3108070	66 – 70	–	–	M8/10	118	58	20 x 1.50	800	50
3108079	75 – 79	2½	65	M8/10	125	62	20 x 1.50	800	50
3108083	80 – 83	–	–	M8/10	131	65	20 x 1.50	800	50
3108091	88 – 91	3	80	M8/10	142	70	23 x 2.00	1,700	25
3108105	100 – 105	–	–	M8/10	155	77	23 x 2.00	1,700	25
3108115	108 – 115	4	100	M8/10	163	81	23 x 2.00	1,700	25
3108130	125 – 130	–	–	M8/10	180	89	23 x 2.00	1,700	25
3108140	133 – 140	5	125	M8/10	189	94	23 x 2.00	1,700	25
3108160	152 – 160	–	–	M8/10	208	102	23 x 2.00	1,700	25
3108169	165 – 169	6	150	M8/10	225	111	25 x 2.50	2,000	10

assembly materials: clips and band

BIS Bifix® G2 with Lining (M8/10) (BUP1000) Walraven
