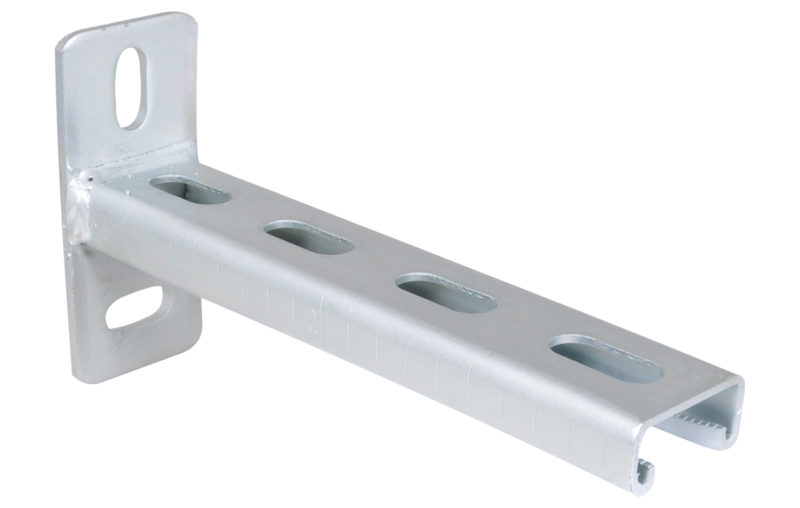

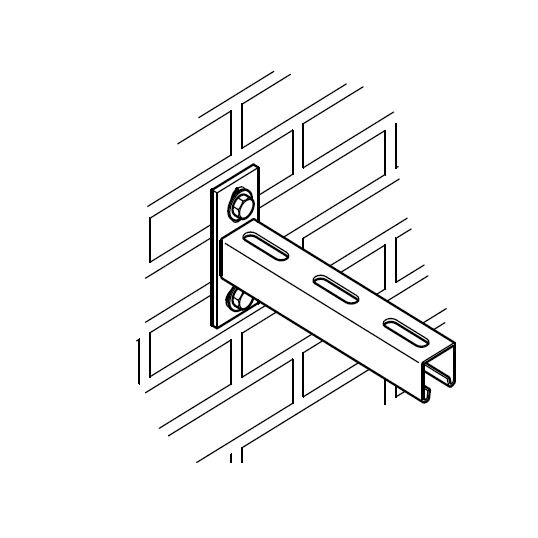

BIS RapidStrut® Cantilever Arm (BUP1000) Walraven
- wall plate welded on Strut Profile
- slots at 90° to each other to simplify fixing
- CO2 welded
- with inward formed flanges with serrated profile for extra grip
- material: steel 1.0226
- surface protection:
- product is part of the BIS UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
- tested for fire safety
- for more information about the max. allowed load (Fa,z) please refer to the loading tables or our online datasheet ‘Technical Details BIS RapidStrut®’

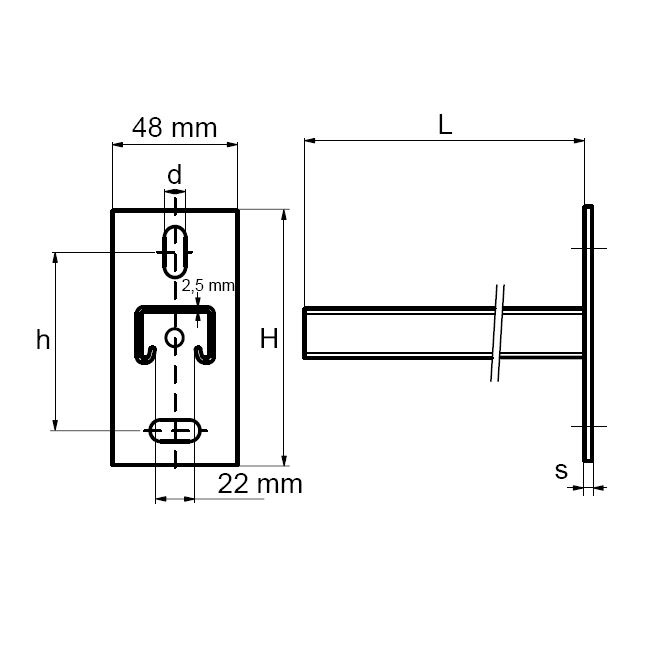

| Part No. | L | H(mm) | h(mm) | s(mm) | d1(mm) | k(mm) | From rail | Pack 1 |
|---|---|---|---|---|---|---|---|---|
| 6603831 | 200 mm | 110 | 70.0 | 5.0 | 25 x 11 | 70.0 | Strut 41x21x2.5 | 10 |
| 6603832 | 300 mm | 110 | 70.0 | 5.0 | 25 x 11 | 70.0 | Strut 41x21x2.5 | 10 |
| 6603833 | 450 mm | 110 | 70.0 | 5.0 | 25 x 11 | 70.0 | Strut 41x21x2.5 | 10 |
| 6603834 | 600 mm | 110 | 70.0 | 5.0 | 25 x 11 | 70.0 | Strut 41x21x2.5 | 10 |
| 6603923 | 300 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.0 | 10 |
| 6603926 | 450 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.0 | 10 |
| 6603928 | 600 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.0 | 8 |
| 6603861 | 150 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 10 |
| 6603870 | 200 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 10 |
| 6603862 | 300 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 10 |
| 6603871 | 400 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 10 |
| 6603863 | 450 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 10 |
| 6603873 | 500 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 10 |
| 6603864 | 600 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 8 |
| 6603865 | 750 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 8 |
| 6603866 | 1,000 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 1 |
| 6603867 | 1,200 mm | 130 | 87.5 | 7.0 | 30 x 13 | 87.5 | Strut 41x41x2.5 | 1 |
