BIS Stainless Steel Rail Prop Walraven

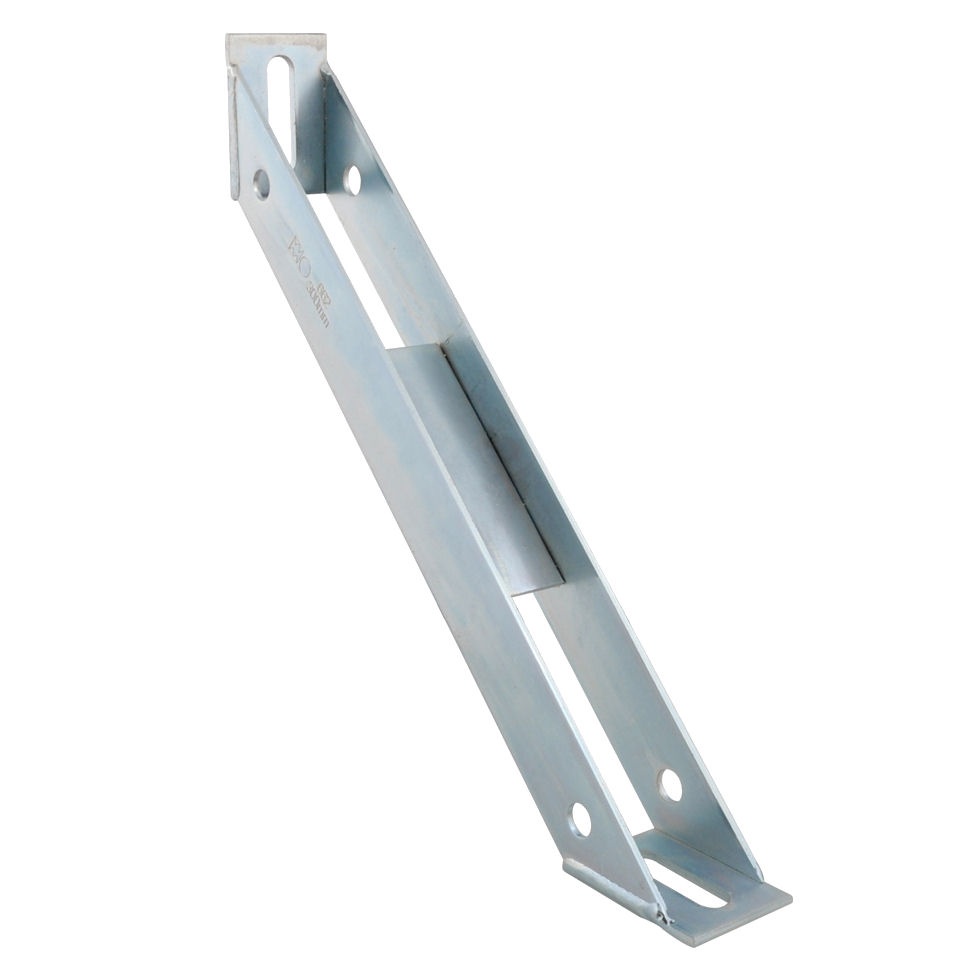

Supporting steel brackets
Elements for reinforcing wall consoles and supporting structures made of RapidStrut mounting rails. They allow you to make a “brace” at an angle of 45 °.
Made of steel coated with UltraProtect1000, which makes them ideal for both indoor and outdoor applications. The products in the UltraProtect1000 cover are covered by a 20-year manufacturer’s warranty. They have bean-hole assembly holes to facilitate assembly. Suitable for all types of rails and RapidStrut consoles.
- 45° support bracket
- for fixing support under, top or on side of a cantilever arm
- also used to strengthen rail constructions
- CO2 welded
- material: stainless steel 1.4401 (AISI 316)
| Part No. | For rails | Pack |
| 662 8 530 | Strut + WM35 | 10 |
