air-heaters: gas heaters

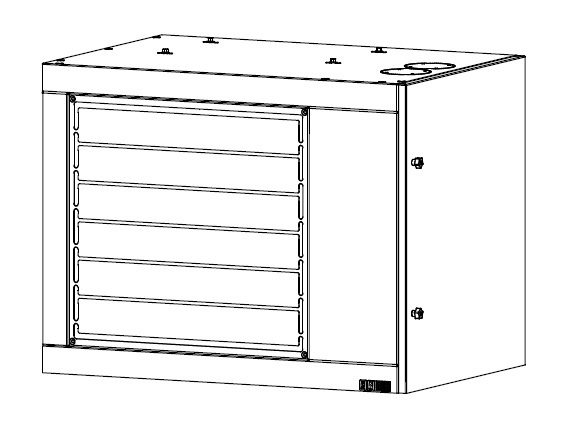

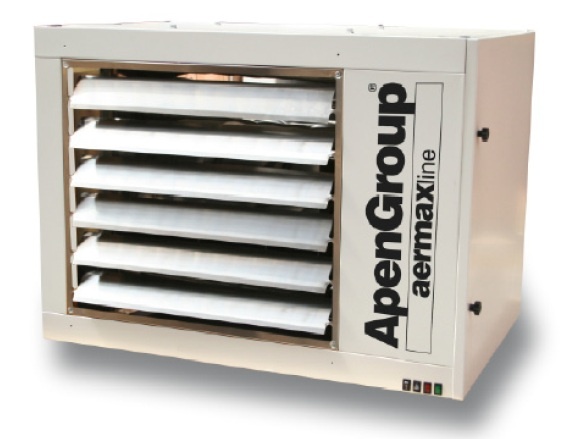

RAPID HEATER

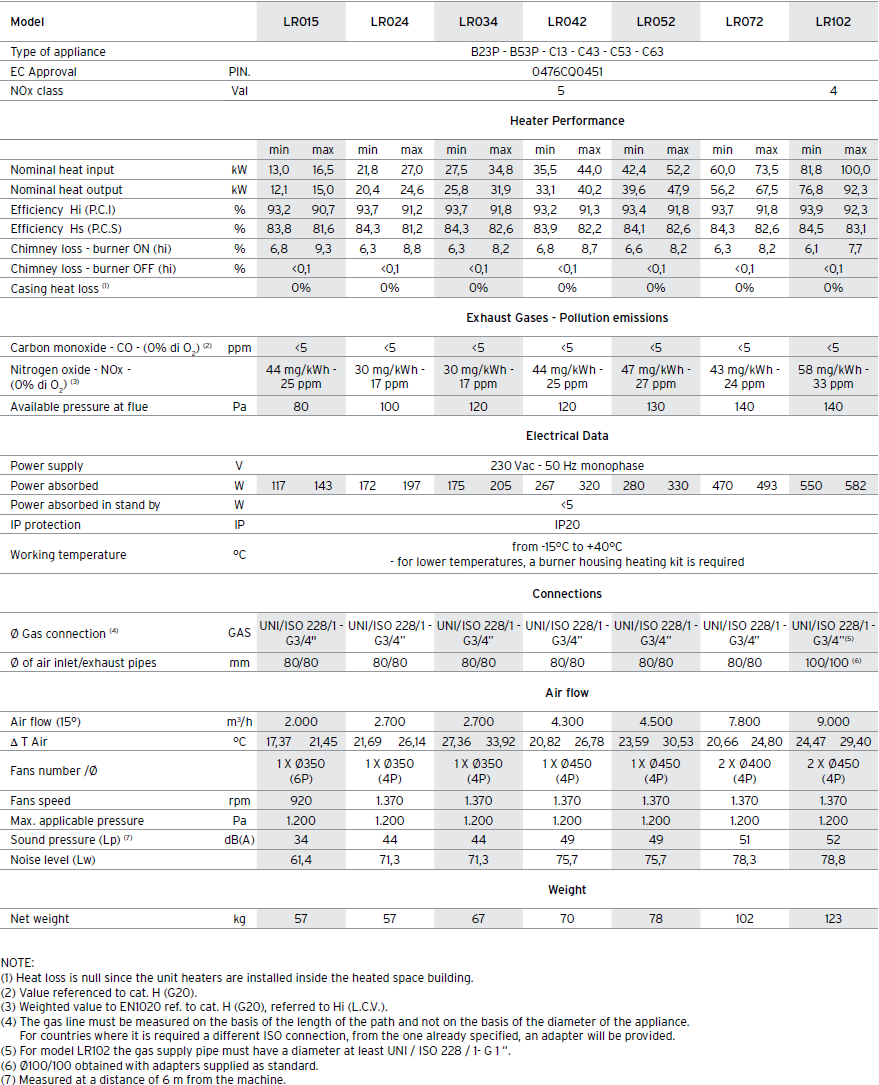

Technical Features
• Outputs range from 5 kW to 97 kW;
• Sealed combustion circuit;
• INOX AISI 441 stainless steel combustion chamber,
INOX AISI 441 stainless steel exchanger tubes and fume
collection box made of low carbon content;
• Efficiency up to 108% referred to the lower heating value (Hi);
• Premixed gas modulating burner, low NOx emissions in class 5,
in compliance with EN 1020 2009 standards;
• Electronic card with continuous modulation of power, controlled
by a microprocessor, which allows energy savings of up to 50%;
• Very high reduction of air stratification;
• An advanced technique of air/gas mixing guarantees total heater
safety;
• Safety thermostat and condensate control sensor;
• 230V/1ph/50Hz supply voltage;
• In compliance with all applicable EC regulations (0476CQ0451);
• A version of suspended heater KONDENSA serie LK with
centrifugal fan and mixing box is available upon request.
