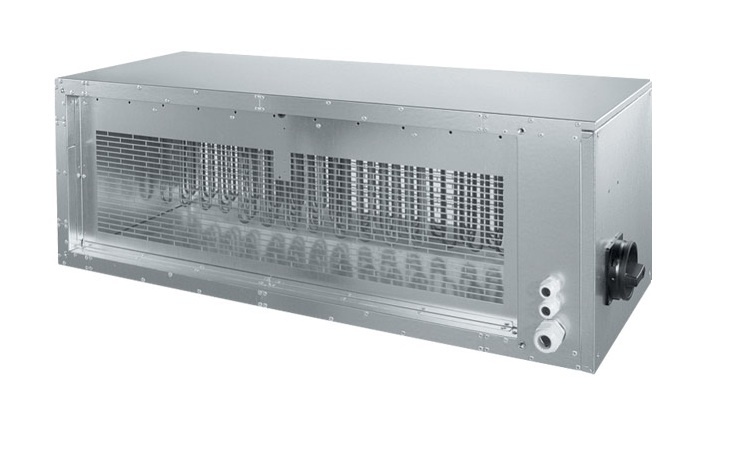

EHM Duct heater

The EHM electric heater is used for heat treatment of air in the general ventilation of residential, office, hotel, public utility, etc.

It is designed for installation in rectangular ducts. Works with SL and RLI / RLE control panels equipped with control automation.

The housing is made entirely of a steel sheet galvanized. Electric heaters are made of stainless steel. The inlet and outlet of the heater have been secured with a net to protect the knobs from damage.

Heaters come in three sizes of heating power: 9, 18 and 27 kW.

Each heater is available in the left or right version. The case has mounting holes for flange connections and a service switch with a position block.

Type Q [kW] Imax [A] U [V] weight [kg]
EHM 5025/9/3 R/L 9 14 3~400 20
EHM 5025/18/3 R/L 18 27 3~400 21,5
EHM 6030/9/3 R/L 9 14 3~400 20
EHM 6030/18/3 R/L 18 27 3~400 21,5
EHM 6030/27/ 3 R/L 27 40 3~400 23

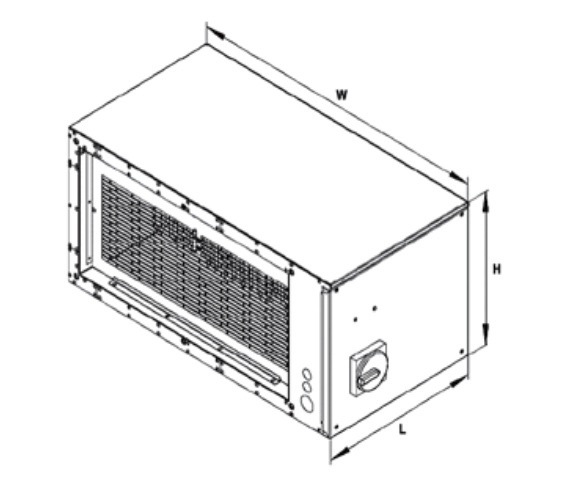

Type Dimensions [mm] W [mm] L [mm] H [mm]
EHM 5025/9/3 R/L 500×250 754 424 367
EHM 5025/18/3 R/L 500×250 754 424 367
EHM 6030/9/3 R/L 600×300 754 400 367
EHM 6030/18/3 R/L 600×300 754 400 367
EHM 6030/27/ 3 R/L 600×300 754 400 367
