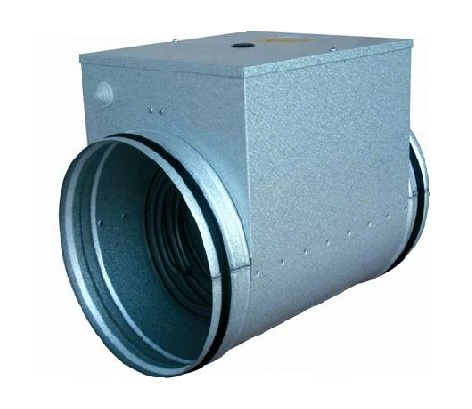

EKA-NIS Duct heater
Electric heaters for heating clean air in ventilation systems.
The casing is made of alu-zinc-coated steel with high temperature resistance. Heating elements made of stainless steel AISI 304. Two thermal protections and a terminal terminal were installed in the heaters. Rubber seals on connections. The heaters can be mounted horizontally or vertically. Maximum temperature of the output air 50 ° C.
All EKA duct heaters have a two-stage protection: the first stage switches on when the temperature reaches 50 ° C (the device resets automatically), the second stage switches on when the temperature reaches 100 ° C (the device is manually reset on the housing).
The EKA-NIS version has a built-in temperature controller. A 0-10V external control signal should be supplied to the regulator. The protection in the form of a thermo-contact with the manual return function is located on the device casing.
| Type | Diameter [mm] | Air flow [m3/h] | Rated voltage [V/50Hz] | Power [kW] | Nominal output In [A] |
| EKA 100 | 100 | 40 | 1~230 | 0,3/0,6/0,9/1,2 | 1,4/2,8/4,1/5,5 |
| EKA 125 | 125 | 70 | 1~230 | 0,3/0,6/0,9/1,2/1,5/1,8 | 1,4/2,8/4,1/5,5/6,8/8,2 |
| EKA 160 | 160 | 110 | 1~230 | 1,2/2,0/2,4 | 5,5/9,1/10,9 |
| 2~400 | 3,0/5,0/6,0 | 7,9/13,2/15,8 | |||
| 3~400 | 6,0 | 8,7 | |||
| EKA 200 | 200 | 170 | 1~230 | 1,2/2,0/2,4 | 5,5/9,1/10,9 |
| 2~400 | 3,0/5,0/6,0 | 7,9/13,2/15,8 | |||
| 3~400 | 6,0 | 8,7 | |||
| EKA 250 | 250 | 270 | 1~230 | 1,2/2,0/2,4 | 5,5/9,1/10,9 |
| 2~400 | 3,0/5,0/6,0 | 7,9/13,2/15,8 | |||
| 3~400 | 6,0 | 8,7/13,0 | |||
| EKA 315 | 315 | 415 | 1~230 | 1,2/2,0/2,4 | 5,5/9,1/10,9 |
| 2~400 | 3,0/5,0/6,0 | 7,9/13,2/15,8 | |||
| 3~400 | 6,0/9,0/12,0 | 8,7/13,0/17,3 | |||
| EKA 400 | 400 | 690 | 2~400 | 3,0/5,0/6,0 | 7,9/13,2/15,8 |
| 3~400 | 6,0/9,0/12,0 | 8,7/13,0/17,3 |
