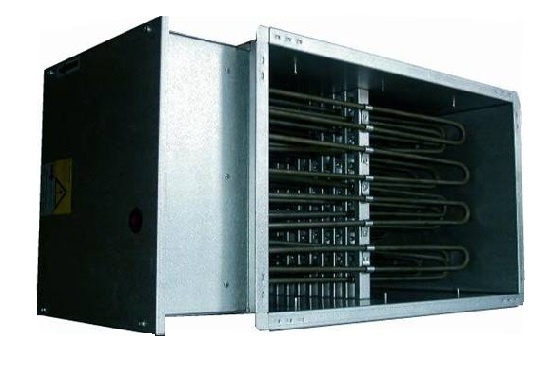

EKS electric heaters are designed for heating clean air in ventilation systems.
The heater casing is made of alu-zinc coated steel with high temperature resistance. Heating elements made of stainless steel AISI 304. Two thermal protections and a terminal terminal were installed in the heaters. For connection using PG connections, flanges or for mounting inside a ventilation unit.
The heaters can be mounted horizontally or vertically.
The maximum temperature of the outlet air is 50 ° C.
The heating power range of the EKS heaters produced varies from 0.3 KW to 300 kW.
EKS does not have an internal temperature controller. Only an external regulator is used.

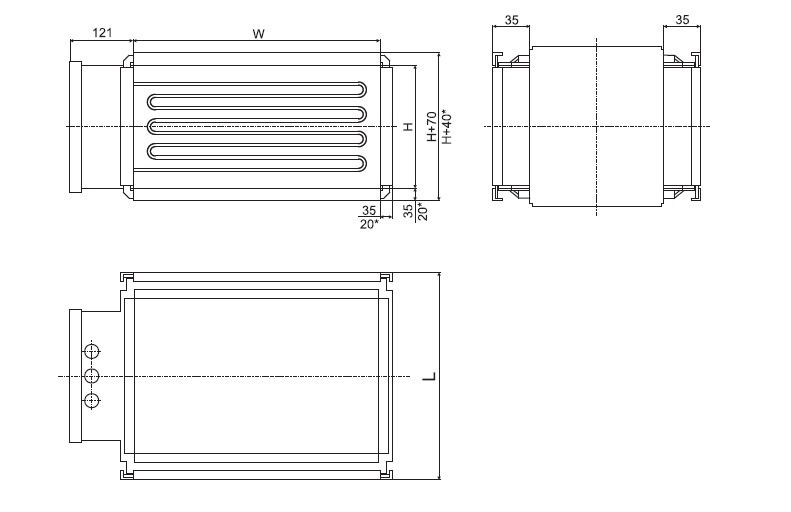

| WxH | L [mm] | Total power [kW] |
| 400×200 | 370 | 6/9/12 |
| 420 | 15 | |
| 520 | 21 | |
| 500×250 | 370 | 9/12 |
| 420 | 15 | |
| 520 | 21 | |
| 600 | 24 | |
| 820 | 36 | |
| 970 | 45 | |
| 500×300 | 370 | 9/12/15/18/21/24 |
| 440 | 27/30/33 | |
| 520 | 36 | |
| 600 | 42/45 | |
| 600×300 | 370 | 9/12/15/18/21/24 |
| 440 | 27/30/33 | |
| 520 | 36 | |
| 600 | 42/45 | |
| 600×350 | 370 | 9/12/15/18/21/24/27/30 |
| 420 | 33/36/39 | |
| 500 | 42/45 | |
| 700×400 | 370 | 9/12/15/18/21/24/27/30/33/36/42/45 |
| 440 | 51/60 | |
| 520 | 66 | |
| 800×500 | 370 | 9/12/15/18/21/24/27/30/33/36/39/42/45 |
| 420 | 51/54 | |
| 440 | 60 | |
| 500 | 66 | |
| 1000×500 | 370 | 9/12/15/18/21/24/27/30/33/36/39/42/45/51/54/60/66 |
