ventilating equipment: air intakes/exhausters

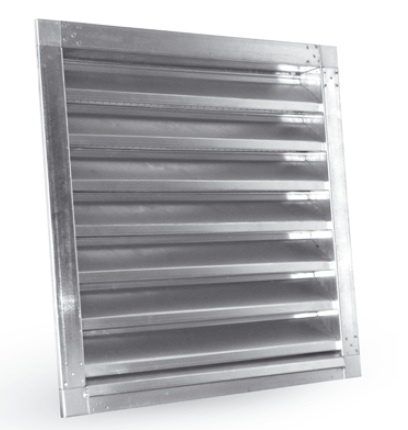

Type A Wall intake / exhaust

Ventilation intake for low and medium pressure supply and exhaust systems. Fixed blinds. It has a protection net made of galvanized wire.

Made of galvanized or acid-resistant sheet.

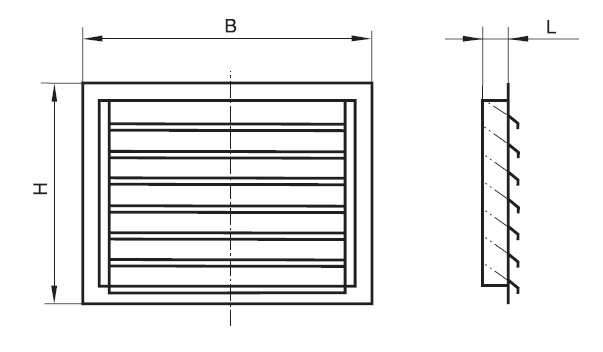

The table shows the typical dimensions of the intake. The custom-made producer provides other, non-standard dimensions.



B/H 250 400 500 630 800 1000 1250 1600 2000 L
250 + + + + + + + + + 65
400 + + + + + + + + + 65
500 + + + + + + + + + 65
630 + + + + + + + + + 65
800 + + + + + + + + + 65
1000 + + + + + + + + + 65
1250 + + + + + + + + + 65
1600 + + + + + + + + + 65
2000 + + + + + + + + + 65
