ventilating equipment: filters
Cassette filters FB, FBV
Cassette filters are used to protect cables, heat exchangers, fans, heaters, coolers, automation devices and other ventilation devices, against the influence of dust and other contaminants.
The filter element is made of synthetic nonwoven and placed in a casing in a metal frame.

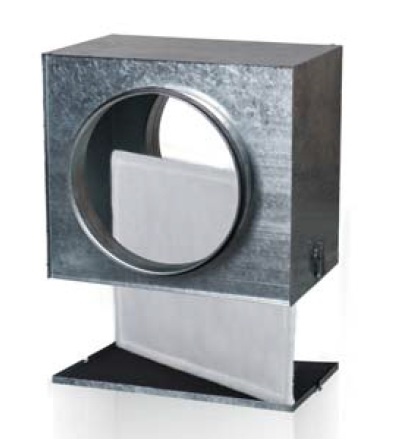

– FB – filter with a flat filter element (filtration class G4)

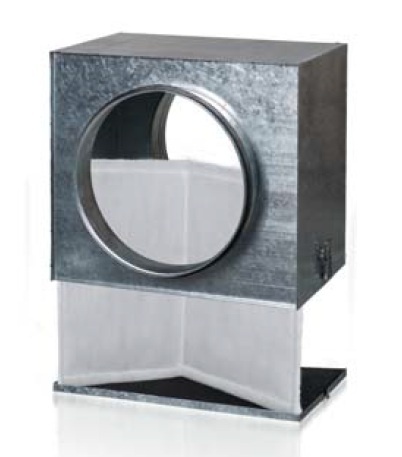

– FBV – filter with a V-shaped filter element, with an enlarged filtration field (G4 filtration classes)
Cassette with the possibility of replacing the filter cartridge.

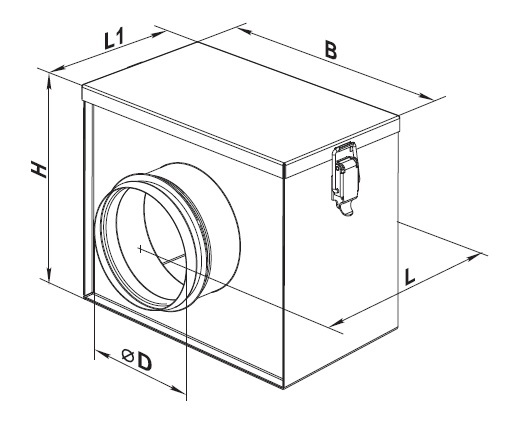

| Type | Sizes [mm] | Weight [kg] | ||||
| ØD | B | H | L | L1 | ||
| FB 100 | 99 | 210 | 175 | 215 | 123 | 1,4 |
| FB 125 | 124 | 220 | 209 | 235 | 143 | 1,7 |
| FB 150 | 149 | 270 | 237 | 250 | 158 | 2,5 |
| FB 160 | 159 | 270 | 237 | 250 | 158 | 2,3 |
| FB 200 | 199 | 320 | 279 | 275 | 183 | 3,1 |
| FB 250 | 249 | 370 | 327 | 325 | 233 | 4,5 |
| FB 315 | 314 | 430 | 392 | 425 | 333 | 6,7 |
| Type | Sizes [mm] | Weight [kg] | ||||
| ØD | B | H | L | L1 | ||
| FBV 100 | 99 | 233 | 175 | 215 | 123 | 1,4 |
| FBV 125 | 124 | 243 | 209 | 235 | 143 | 1,7 |
| FBV 150 | 149 | 293 | 237 | 250 | 158 | 2,2 |
| FBV 160 | 159 | 293 | 237 | 250 | 158 | 2,2 |
| FBV 200 | 199 | 343 | 279 | 275 | 183 | 3,1 |
| FBV 250 | 249 | 393 | 327 | 325 | 233 | 4,2 |
| FBV 315 | 314 | 453 | 392 | 425 | 333 | 6,3 |
