round ducts: segmented round fittings

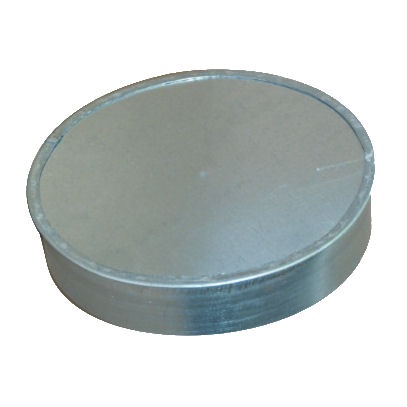

Cap DR
Caps are fittings designed for the ends of ventilation ducts in a tight manner.
- Hot galvanized steel, sendizimir process, 275 g / m2 zinc thickness.
- Connecting elements with a sheet metal lock.
- Connecting with a linear seal.
- Nipple design for direct connection to the pipe.
- Thicknesses of sheets made in accordance with the Polish Standard.
- Custom sheet thicknesses available on request.
| DN | Surface m2 | kg |
| 80 | 0,009 | 0,1 |
| 100 | 0,014 | 0,1 |
| 125 | 0,019 | 0,2 |
| 150 | 0,028 | 0,2 |
| 160 | 0,031 | 0,2 |
| 200 | 0,045 | 0,3 |
| 250 | 0,066 | 0,6 |
| 315 | 0,099 | 0,9 |
| 355 | 0,122 | 1,1 |
| 400 | 0,152 | 1,5 |
| 450 | 0,188 | 1,8 |
| 500 | 0,229 | 2,1 |
| 630 | 0,374 | 3,7 |
| 800 | 0,581 | 5,9 |
| 1000 | 0,882 | 9,6 |
| 1250 | 1,347 | 16,7 |
