cooper pipes: isulated

Armaflex DuoSolar CU

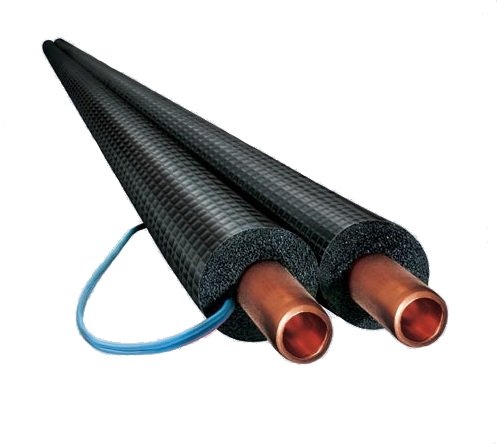

Two preinsulated copper pipes with UV-resistant rubber HT / Armaflex insulation with a new cellular microstructure. It is covered with a polyolefin-copolymer protective film that additionally protects against mechanical damage.

application:

A pipe system that connects the solar panel with a hot water tank and other applications.

material:

seamless, lead-free copper tube according to EN 1057

Outer size [mm] Thickness [mm] Insulation thickness [mm] Outer diameter with insulation [mm] Min. bending radius [mm] Max. working pressure [bar] Capacity [l/m] 10m 15m 20m 25m
CU12FEF14 12 0,8 14 2×40 48 79 0,085 – + – +
CU15FEF14 15 0,8 14 2×43 60 62 0,141 + + + +
CU18FEF14 18 1,0 14 2×46 72 65 0,201 + + + +
CU15FEF20 15 0,8 20 2×55 60 62 0,141 – + – +
CU18FEF20 18 1,0 20 2×58 72 65 0,201 – + – +
