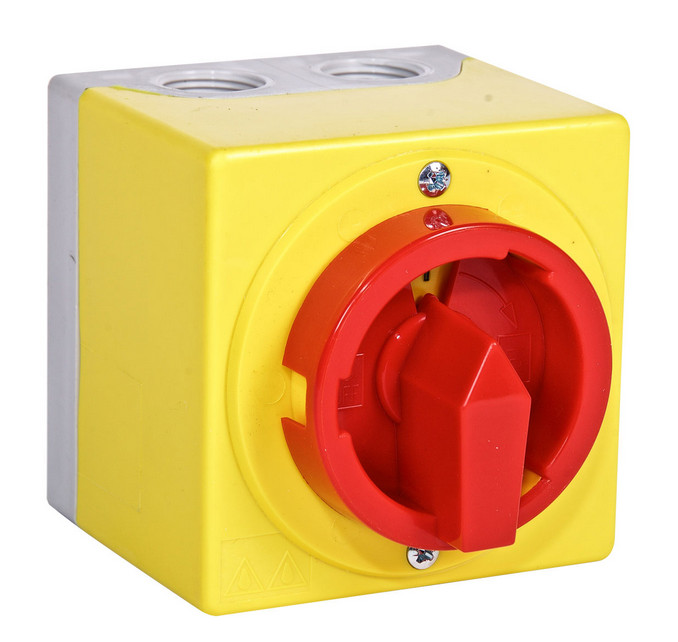

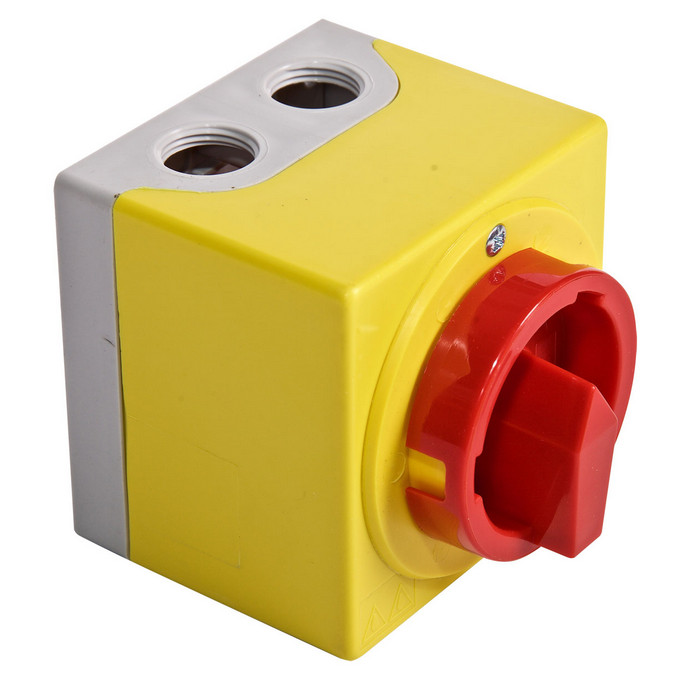

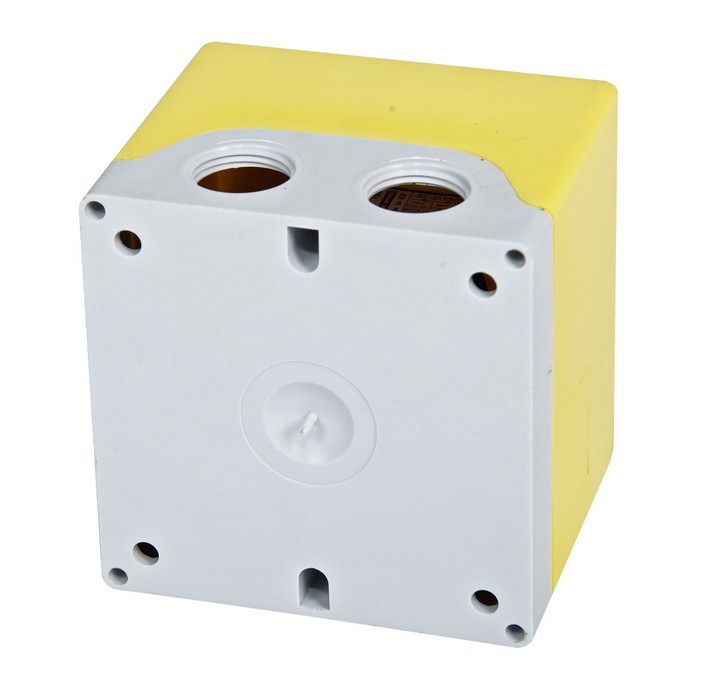

service switch GS HARMANN
A service switch for motors or other electrical devices.
Maximum load 16A.
It is possible to install a lock to prevent unauthorized activation of the device in the “0” position. Switching capacity 400V 3 ~ = 5.5 kW. Degree of protection IP55. 2 M20x1,5 end caps included.
2 M20 chokes are not supplied and should be purchased separately.
Maximum working temperature: 40 ° C

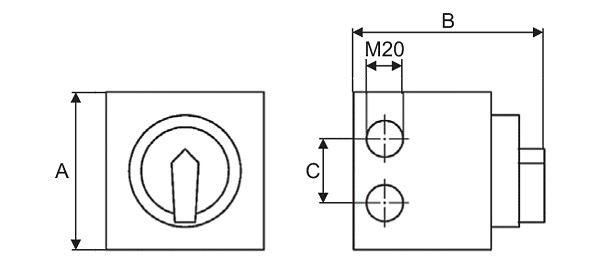

WYMIARY:
| Typ | A [mm] |
B [mm] |
C [mm] |
|---|---|---|---|
| GS 01 | 86 | 100 | 34 |
| GS 02 | 86 | 97 | 34 |
| GS 03 | 86 | 111 | 34 |
| GS 05 | 68 | 97 | 26 |
DANE TECHNICZNE:
| Type GS | Umax [V] |
Imax [A] |
main contact N/O |
secondary contact | |
|---|---|---|---|---|---|
| N/O | N/C | ||||
| GS 01 | 400 | 16 | 3 | 2 | 1 |
| GS 02 | 400 | 16 | 6 | 0 | 0 |
| GS 03 | 400 | 16 | 6 | 1 | 1 |
| GS 05 | 400 | 16 | 3 | 0 | 0 |
