Harmann, ENSO

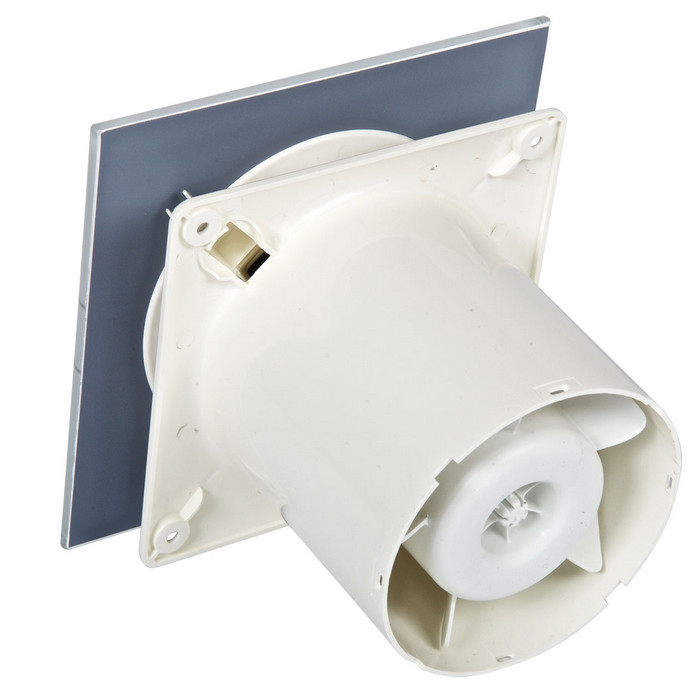

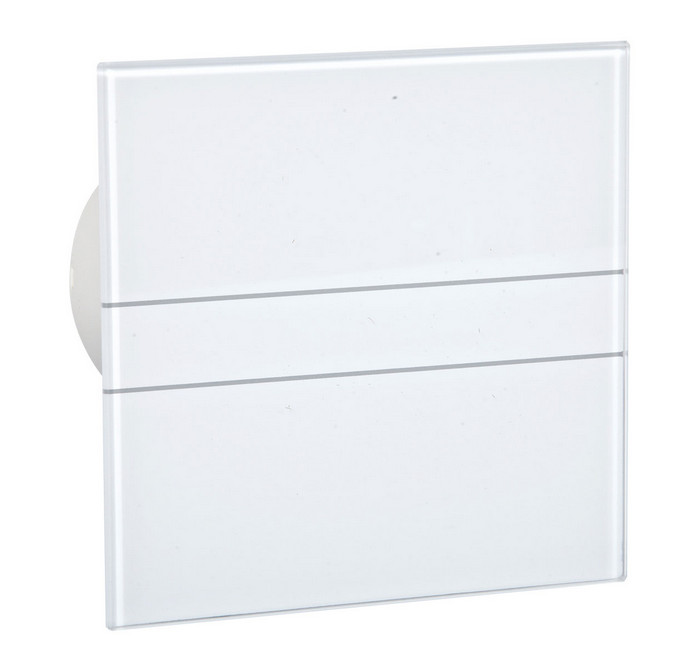

The ENSO housing fan is made of impact-resistant and UV-resistant ABS plastic in white. The cover made of glass is easy to take off and clean.

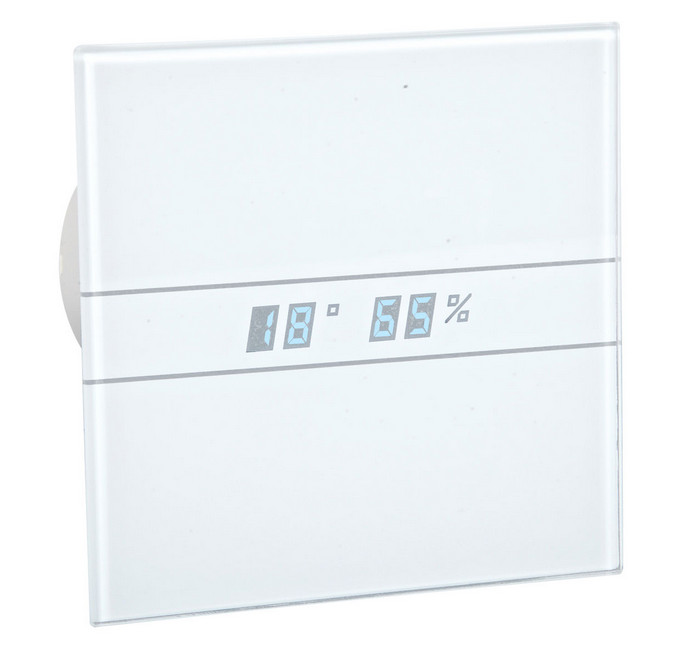

Depending on the model, ENSO fans are equipped with an adjustable time delay, a relative humidity sensor and a two-speed motor. The 100 HYGRO models as a few of such devices on the market are equipped with a display of the current temperature and humidity value located on the front panel.
Thanks to the two-speed engine, continuous operation of the device on low gear is possible. The use of a non-return valve is not required – optionally available for each model.
Axial rotor on ball bearings.
The drive is implemented by single-phase 220-240V, 50Hz electric motors with integrated thermal protection. No speed adjustment.
Degree of protection: IP44
Capacity up to 115 m3 / h

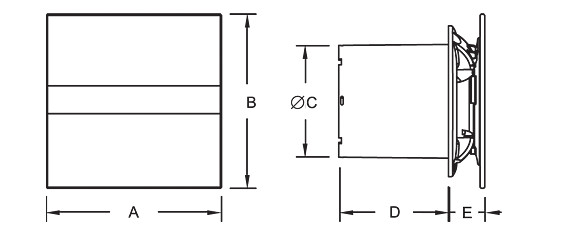

WYMIARY:
| Type | A [mm] |
B [mm] |
ØC [mm] |
D [mm] |
E [mm] |
|---|---|---|---|---|---|
| ENSO 100 | 150 | 150 | 98 | 94 | 31 |
DANE TECHNICZNE:
| Type | Q max [m3/h] |
Δp max [Pa] |
P max [W] |
U [V] |
L pA [dB(A)] |
m [kg] |
Timer | Hygrrostatic | Temp. and humidity display |
|---|---|---|---|---|---|---|---|---|---|
| ENSO 100 STD | 115 | 27 | 8 | 220-240 | 31 | 1 | – | – | – |
| ENSO 100 TIMER | 115 | 27 | 8 | 220-240 | 31 | 1 | YES | – | – |
| ENSO 100 HYGRO | 36/115 | 27 | 4/8 | 220-240 | 17/31 | 1 | YES | YES | YES |
