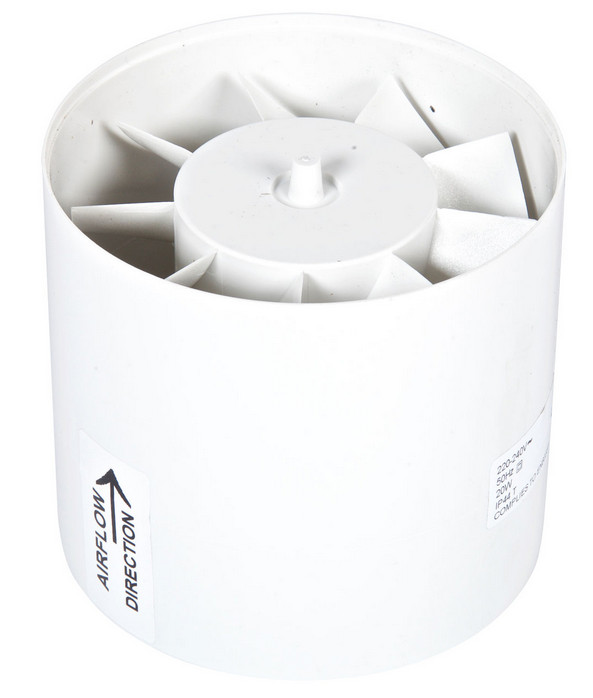

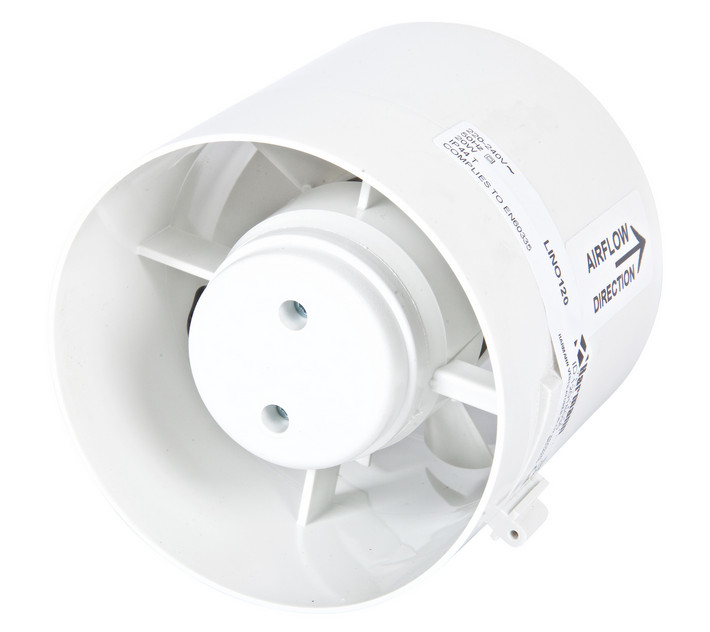

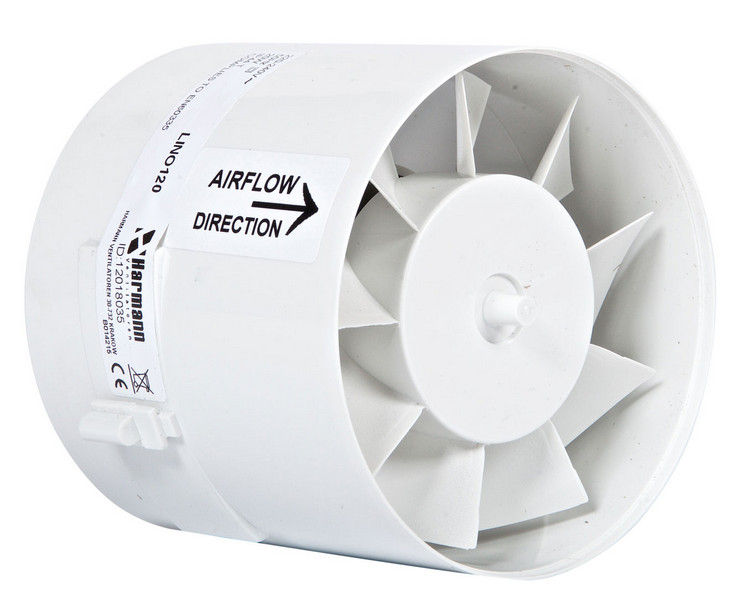

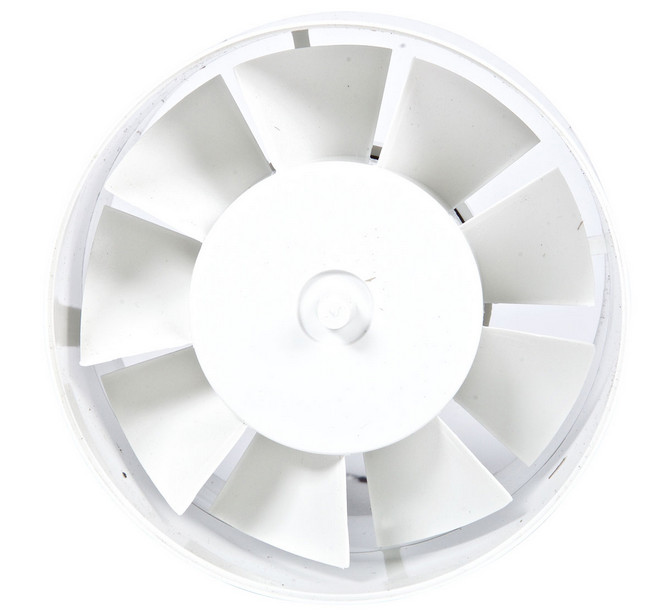

Harmann, LINO
Domestic fans for duct mounting
LINO series is especially recommended as an air extraction from showers, as an element in a duct located in a suspended ceiling, attic, etc.
They are designed for duct mounting between the exhaust grille, ventilation ducts and the ejection grille. The housing is made of impact-resistant and UV-resistant ABS plastic. Perfect for extracting air in short sections of ventilation ducts.
LINO fans are equipped with single-phase 230V, 50Hz, induction electric motors. They have protection against electric shock in class II, splash-proof protection against moisture and maintenance-free bearings. The engine speed can not be adjusted.
Degree of protection: IPX4
Capacity up to 330 m3 / h

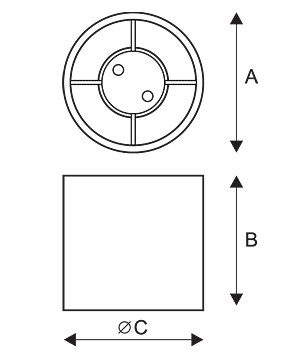

WYMIARY:
| Type | A [mm] |
B [mm] |
ØC [mm] |
|---|---|---|---|
| LINO 100 | 98 | 90 | 100 |
| LINO 120 | 116 | 99 | 118 |
| LINO 150 | 148 | 110 | 150 |
DANE TECHNICZNE:
| Type | Q max [m3/h] |
Δp max [Pa] |
P max [W] |
U [V] |
L pA [dB(A)] |
m [kg] |
|---|---|---|---|---|---|---|
| LINO 100 | 95 | 20 | 14 | 230 | 41 | 0,4 |
| LINO 120 | 180 | 35 | 15,5 | 230 | 41 | 0,5 |
| LINO 150 | 330 | 50 | 20 | 230 | 40 | 0,6 |
