ventilators: harmann: duct fans

single-pipe system LIMODOR

LIMODOR one-pipe system with a capacity of up to 100 m3 / h. A wide range of available types and versions allows you to choose the appropriate mode of operation with the possibility of individual control of individual devices or by means of a central control system for the entire building.

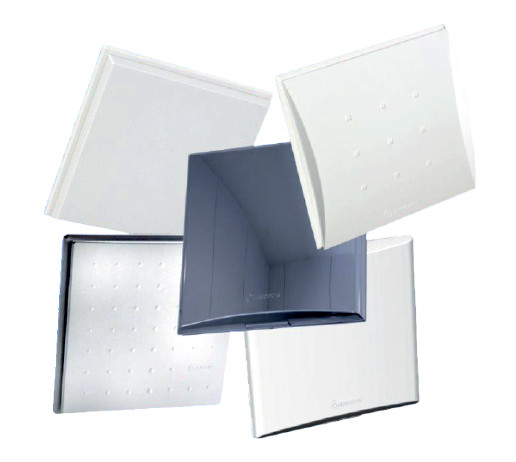

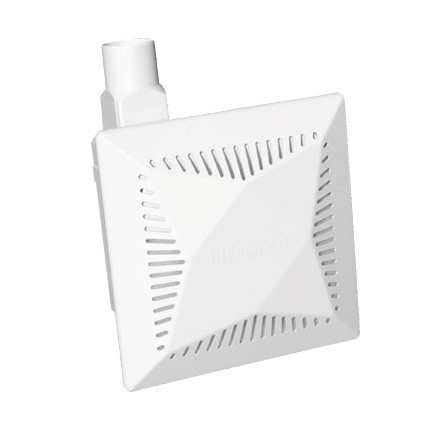

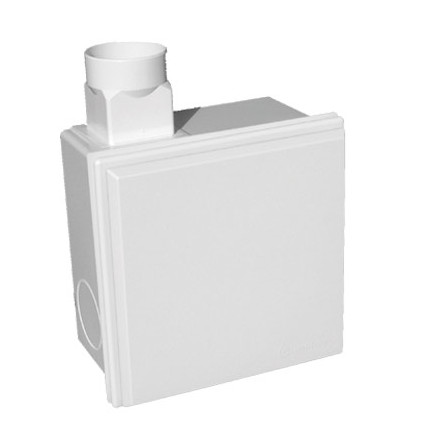

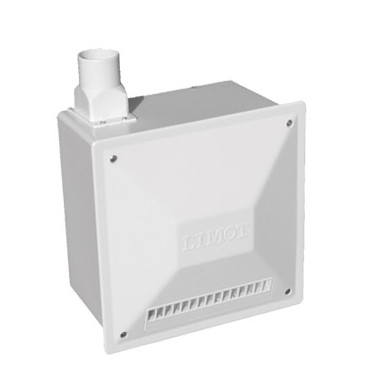

Possibility of horizontal and vertical over- and flush mounting. Modern and aesthetic front panels in 5 versions.

LF / M fans available with single-phase 230V, 50Hz single, two or three-speed motors. Degree of protection for the IP X5 motor, class II insulation – designed for installation in zone I of moist rooms, ie extract from the bathtub, shower enclosure. Engines equipped with an automatic thermal release with autorestart – they are suitable for continuous operation.

The most important features:

noise level 32 dB (A) at 60 m3 / h
surface or flush mounted horizontally or vertically
single, double or triple engines
time delay, programmer, humidity sensor, motion sensor
the possibility of connecting a second room
possibility to connect the lift from the toilet
Class G4 filter

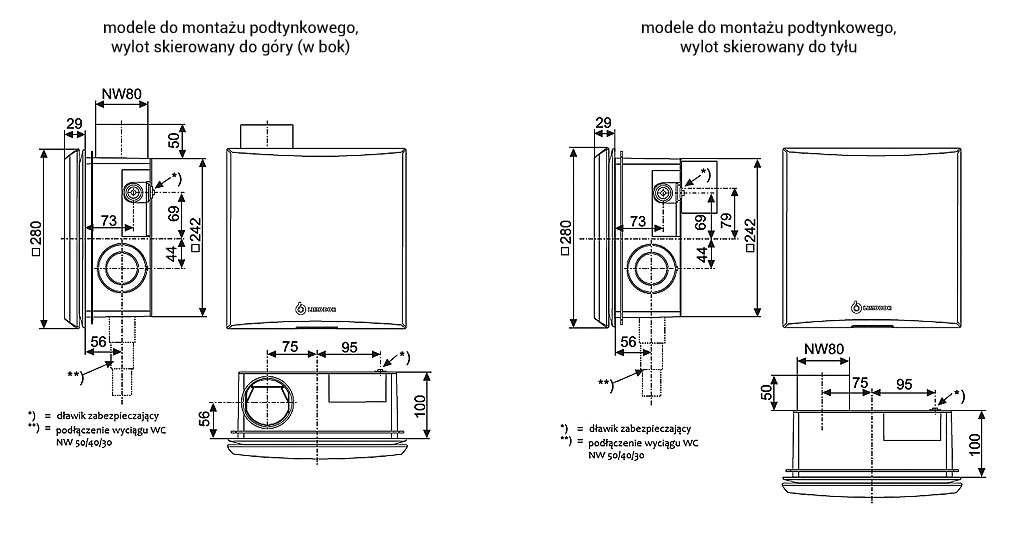

wymiary wymiary



Type Poles Q max
[m3/h]		 Δp max
[Pa]		 różnica ciśnień
[Pa]		 P max
[W]		 I max
[A]		 RPMmax
[1/min]		 L wA
[dB(A)]		 L pA *
[dB(A)]
LF/M 60 1 60 250 133/142** 11 0,075 1600 36 32
LF/M 60/40 2 60/40 250 133/142** 11/6 0,075 1600/1050 36/32 32/28
LF/M 60/30 2 60/30 250 133/142** 11/6 0,075 1600/850 36/30 32/26
LF/M 100 1 100 250 61 23 0,110 2200 42 38
LF/M 100/30 2 100/30 250 61 23/6 0,110 2200/850 42/30 38/26
LF/M 100/40 2 100/40 250 61 23/6 0,110 2200/1050 42/32 38/28
LF/M 100/60/30 3 100/60/30 250 61 23/11/6 0,110 2200/1600/850 42/36/30 38/32/26
LF/M 100/60/40 3 100/60/40 250 61 23/11/6 0,110 2200/1600/1050 42/36/32 38/32/28

* – measurement according to DIN 18017-3, point 6.2.4 and ÖNORM S 5031 based on 10 m2 of absorbing surface
** – for mounting in the ceiling



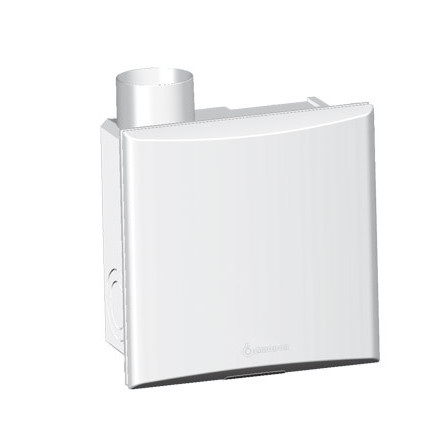

Modele do montażu podtynkowego, wylot skierowany do tyłu

Typ ilość biegów Q max
[m3/h]		 Δp max
[Pa]		 różnica ciśnień
[Pa]		 P max
[W]		 I max
[A]		 RPMmax
[1/min]		 L wA
[dB(A)]		 L pA *
[dB(A)]
LF/M 60 1 60 270 133 11 0,075 1600 36 32
LF/M 60/40 2 60/40 270 133 11/6 0,075 1600/1050 36/32 32/28
LF/M 60/30 2 60/30 270 133 11/6 0,075 1600/850 36/30 32/26
LF/M 100 1 100 280 61 23 0,110 2200 42 38
LF/M 100/30 2 100/30 280 61 23/6 0,110 2200/850 42/30 38/26
LF/M 100/40 2 100/40 280 61 23/6 0,110 2200/1050 42/32 38/28
LF/M 100/60/30 3 100/60/30 280 61 23/11/6 0,110 2200/1600/850 42/36/30 38/32/26
LF/M 100/60/40 3 100/60/40 280 61 23/11/6 0,110 2200/1600/1050 42/36/32 38/32/28

* – pomiar według DIN 18017-3, pkt. 6.2.4 oraz ÖNORM S 5031 w oparciu o 10 m2 powierzchni absorpcyjnej

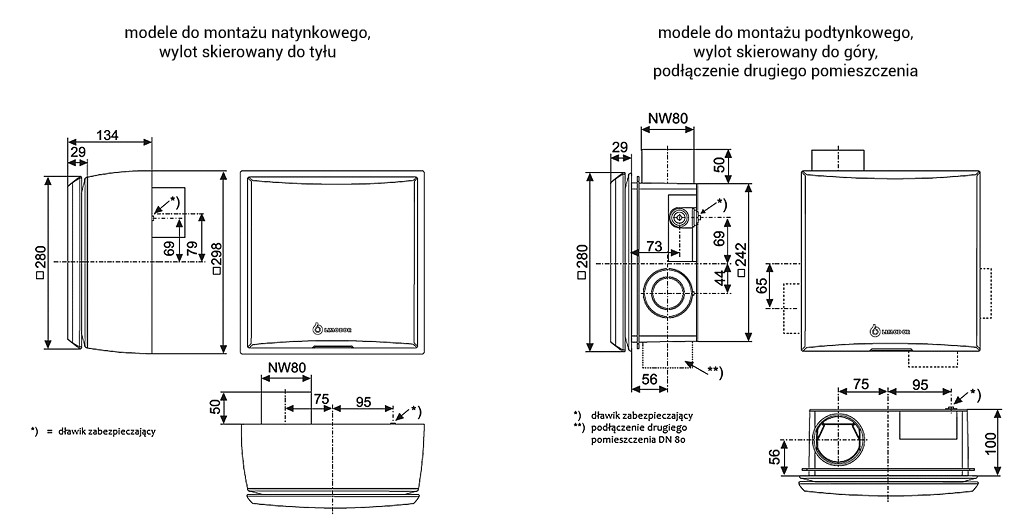

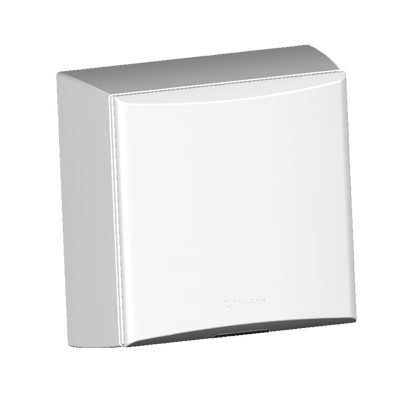

Modele do montażu natynkowego, wylot skierowany do tyłu

Typ ilość biegów Q max
[m3/h]		 Δp max
[Pa]		 różnica ciśnień
[Pa]		 P max
[W]		 I max
[A]		 RPMmax
[1/min]		 L wA
[dB(A)]		 L pA *
[dB(A)]
LF/M 60 1 60 270 133 11 0,075 1600 41 37
LF/M 60/40 2 60/40 270 133 11/6 0,075 1600/1050 41/35 37/31
LF/M 60/30 2 60/30 270 133 11/6 0,075 1600/850 41/31 37/27
LF/M 100 1 100 280 55 23 0,110 2200 51 47
LF/M 100/30 2 100/30 280 61 23/6 0,110 2200/850 51/31 47/27
LF/M 100/40 2 100/40 280 55 23/6 0,110 2200/1050 51/35 47/31
LF/M 100/60/30 3 100/60/30 280 61 23/11/6 0,110 2200/1600/850 51/41/31 47/37/27
LF/M 100/60/40 3 100/60/40 280 55 23/11/6 0,110 2200/1600/1050 51/41/35 47/37/31

* – pomiar według DIN 18017-3, pkt. 6.2.4 oraz ÖNORM S 5031 w oparciu o 10 m2 powierzchni absorpcyjnej



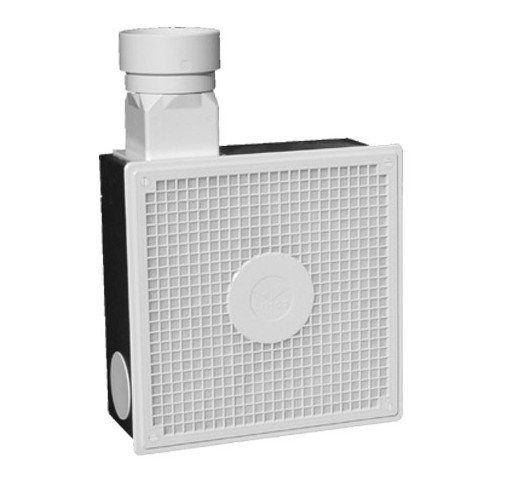

Modele do montażu podtynkowego, wylot skierowany do góry, podłączenie drugiego pomieszczenia

Typ ilość biegów Q max
[m3/h]		 Δp max
[Pa]		 różnica ciśnień
[Pa]		 P max
[W]		 I max
[A]		 RPMmax
[1/min]		 L wA
[dB(A)]		 L pA *
[dB(A)]
LF/M 100 1 100 250 61 23 0,110 2200 42 38

* – pomiar według DIN 18017-3, pkt. 6.2.4 oraz ÖNORM S 5031 w oparciu o 10 m2 powierzchni absorpcyjnej
