VKH Roof ventilator

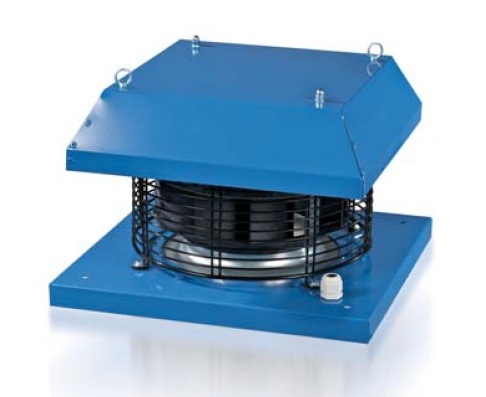

VKH roof fans with horizontal air discharge are used in exhaust systems of various types of rooms.

The casing is made of steel with a polymer coating.

The fans use two, four and six-pole, single or three-phase asynchronous motors with an external rotor with backward curved blades.

The fan is mounted directly on the roof surface or on an insulated or damp roof base set directly above the ventilation duct.

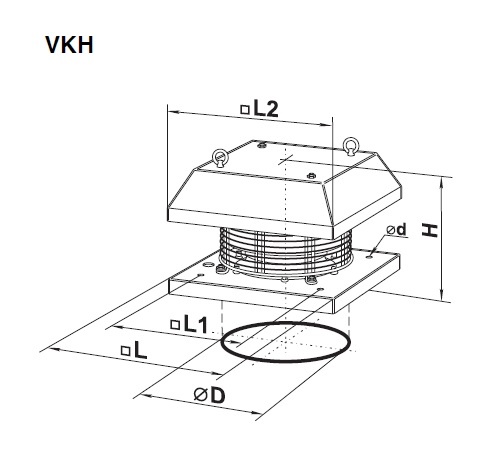

Type	Sizes [mm]						Weight [kg]
Type	ØD	Ød	H	L	L1	L2	Weight [kg]
VKH 2E 220	245	10	228	338	245	338	6,9
VKH 2E 225	210	10	228	338	245	338	7,1
VKH 2E 250	286	10	265	400	330	365	10,1
VKH 2E 280	286	10	265	400	330	365	10,2
VKH 4E 310	286	10	300	438	330	400	10,2
VKH 4D 310	286	10	300	438	330	400	10,2
VKH 4E 355	438	12	348	598	450	550	15,6
VKH 4D 355	438	12	325	598	450	550	15,6
VKH 4E 400	438	12	348	598	450	550	21,0
VKH 4E 450	438	12	400	668	450	640	22,7
VKH 4D 400	438	12	348	598	450	550	22,0
VKH 4D 450	438	12	400	668	450	640	22,7
VKH 6E 500	438	12	465	668	450	640	26,6

2, 4, 6 – poles

E – single phase

D – triple phase

	VKH 2E 220	VKH 2E 225	VKH 2E 250	VKH 2E 280	VKH 4E 310	VKH 4D 310
Voltage [V]	230	230	230	230	230	400
Power [W]	85	135	155	225	120	110
Amperage [A]	0,38	0,6	0,7	1,0	0,54	0,32
Efficiency [m³/h]	700	900	1300	1780	1820	1950
Speed [min -1]	2700	2650	2600	2700	1370	1400
Noise level [dB(A)/3 m]	49	49	65	66	45	53
Max working temp. [°C]	55	55	50	50	85	65
Protection class	IP X4	IP X4	IP X4	IP X4	IP X4	IP X4

	VKH 4E 355	VKH 4D 355	VKH 4E 400	VKH 4D 400	VKH 4E 450	VKH 4E 450	VKH 6E 500
Voltage [V]	230	400	230	400 Y	230	400 Y	230
Power [W]	245	170	480	385	640	470	385
Amperage [A]	1,12	0,52	2,4	0,7	3,1	0,82	1,82
Efficiency [m³/h]	2800	2350	3400	3800	3850	4300	4700
Speed [min -1]	1420	1400	1400	1430	1350	1430	880
Noise level [dB(A)/3 m]	46	53	52	52	53	53	47
Max working temp. [°C]	50	70	80	60	50	50	50
Protection class	IP X4	IP X4	IP X4	IP X4	IP X4	IP X4	IP X4
