air conditioner units: wall mounted

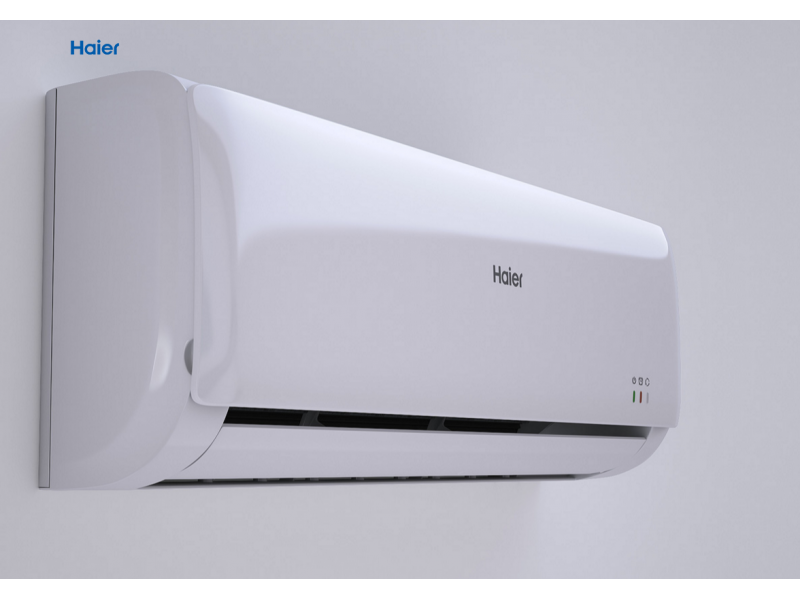

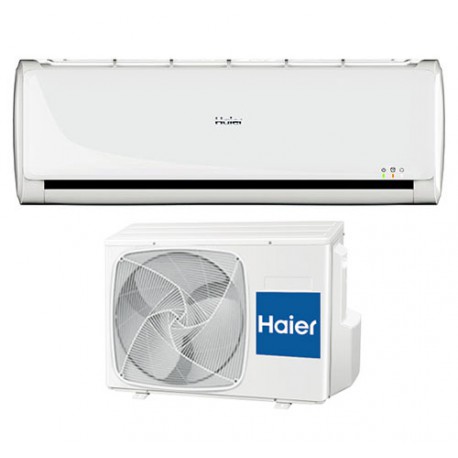

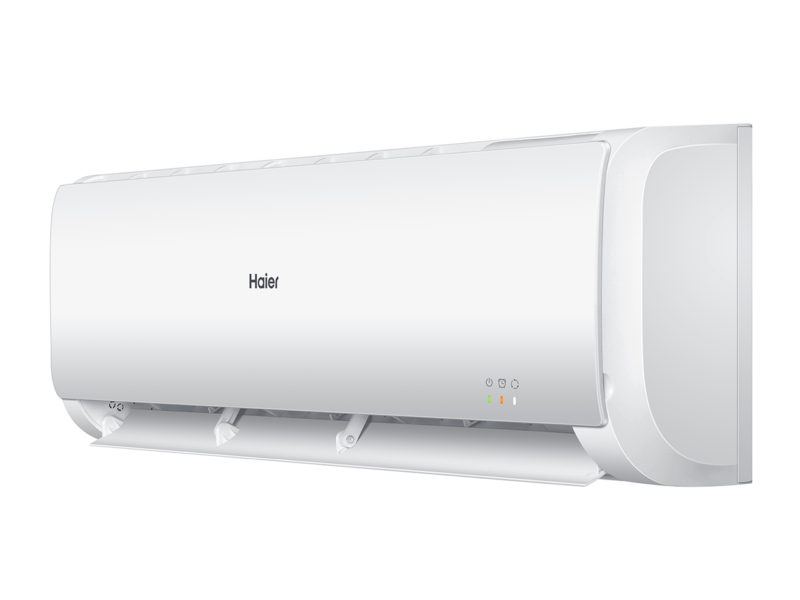

Haier Tundra
SUPER QUIET
Optimize the noise control technology, such as the compressor frequency
adjustment, fan speed control and air flue design decreasing the noise level even
lowest to 20dB(A) with the specialized QUIET setting. (refer to 9k)
INTELLIGENT AIR
Airflow automatically upward when cooling or downward when heating to spread
air automatically throughout the large room while without blowing directly to
human body.
COMFORTABLE SLEEP
The setting temperature and the indoor noise can be adjusted to a more comfortable
level when you set the “sleep mode” during night sleep.
| Model | AS09TA2HRA | AS12TA2HRA | AS18TD2HRA | AS24TD2HRA | ||
| cooling efficiency | W | 2,6 | 3,6 | 5,0 | 6,6 | |
| heating efficiency | W | 2,8 | 3,7 | 6,0 | 7,4 | |
| SEER | 4,0 | 4,0 | 4,0 | 4,0 | ||
| SCOP | 3,61 | 3,61 | 3,72 | 3,61 | ||
| Classes | cooling | A++ | A++ | A++ | A++ | |
| heating | A+ | A | A | A | ||
| Air flow | inside unit | m3/h | 500 | 550 | 900 | 1100 |
| Noise | cooling (Q/L/M/H) | db(A) | 20/28/37/40 | 28/35/37/40 | 28/35/37/40 | 28/36/38/42 |
| heating (Q/L/M/H) |
db(A) | 20/26/30/36 | 20/28/32/37 | 28/35/37/40 | 28/36/38/42 | |
| Inside unit sizes | width x depth x heigh | mm | 795 x 187 x 265 | 795 x 187 x 265 | 938 x 187 x 265 | 860 x 308 x 730 |
| Weight | inside/outside unit | kg | 8,2 | 8,2 | 9,6 | 45,5 |
