Wall Mounted Artcool Gallery LG

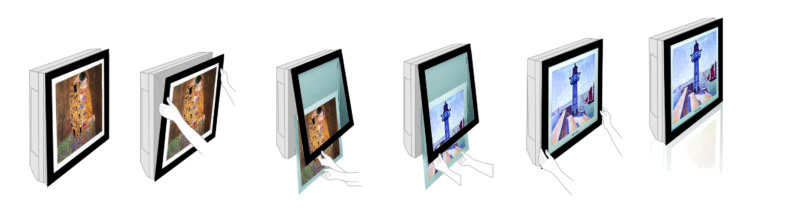

The slim, contemporary styling of the Art Cool™ Gallery Inverter models will appeal to today’s discerning customer. Available in 9,000 and 12,000 BTU/h, models come with a frame that allows the customer to modify and personalize the unit with their own artwork or photography – the ultimate in custom design plus with energy-efficient Inverter technology.
These indoor units, combined with small footprint outdoor units, provide both physical comfort and a stylish aesthetic.
- Personalize with artwork or photography
- Mounts elegantly on the wall and delivers contemporary styling
- Available in 9000 and 12,000 Btu/h capacities that operate with Multi V air and water-source units
| JEDNOSTKA WEWNĘTRZNA | MA09AH1.NF1 | MA12AH1.NF1 | |||
| Efficiency | Cooling/Heating | Nom. | kW | 2,6/2,9 | 3,5/3,9 |
| Power consumption | Nom. | W | 40 | 40 | |
| Operating current | Nom. | A | 0,1 | 0,1 | |
| Power | ø/V/Hz | 1/220-240/50 | 1/220-240/50 | ||
| Air flow | High/Medium/Low | m³/min | 7,7/5,9/4,4 | 8,9/7,3/5,6 | |
| Sound pressure level | Cooling | High/Medium/Low | dB(A) | 38/32/27 | 44/38/32 |
| Sound level | Cooling | Max | dB(A) | 52 | 54 |
| Dehumidification Process | l/h | 1,2 | 1,4 | ||
| Sizes | SxWxG | mm | 600×600×145 | 600×600×145 | |
| Weight | kg | 15 | 15 | ||
| Pipe connections | Fluid | mm (inches) | ø 6,35 (1/4) | ø 6,35 (1/4) | |
| Gas | mm (inches) | ø 9,52 (3/8) | ø 9,52 (3/8) | ||
