air handling units: harmann

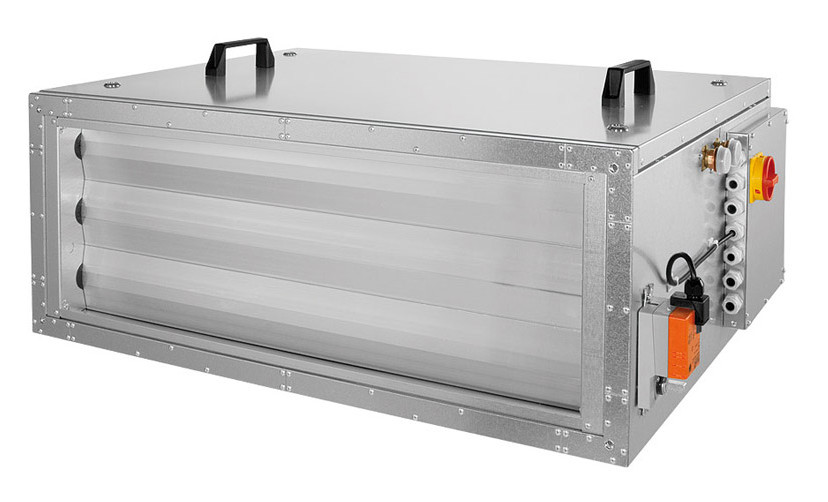

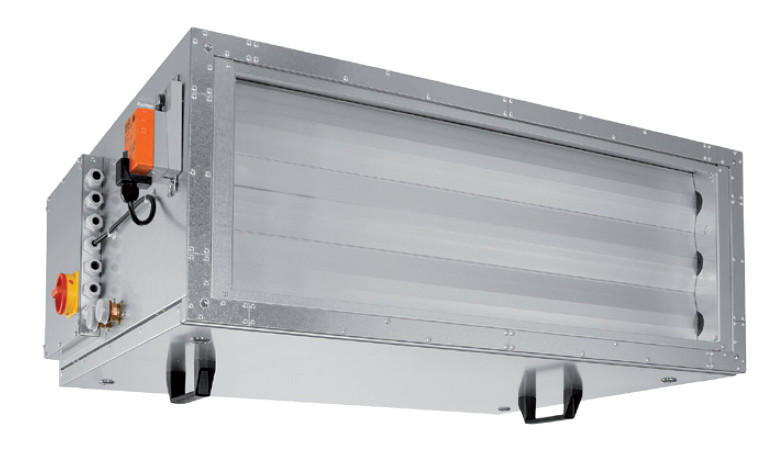

Air supply unit SL

AHU with moving heating / cooling elements

Construction and equipment
The housing of the SL units is made entirely of galvanized steel sheet. Thermal and acoustic insulation with mineral wool 30 mm thick and density 88 kg / m. The compact housing of the SL control panel allows ceiling mounting. Moving heating / cooling elements used in this model make it easier to adapt the unit to the required assembly side.
Depending on the model and options, the unit is equipped with EU5 and EU7 class pocket filters (optionally for the G04, H04 series control panels), while the heating / cooling elements may be: water heater, water cooler or freon cooler.

Fans
In SL type ventilation units, there are two types of duct fans with single-phase motors: radial fans (marked with the letter “G”) and diagonal type JETTEC fans (marked with the letter “H”).

Drive and control

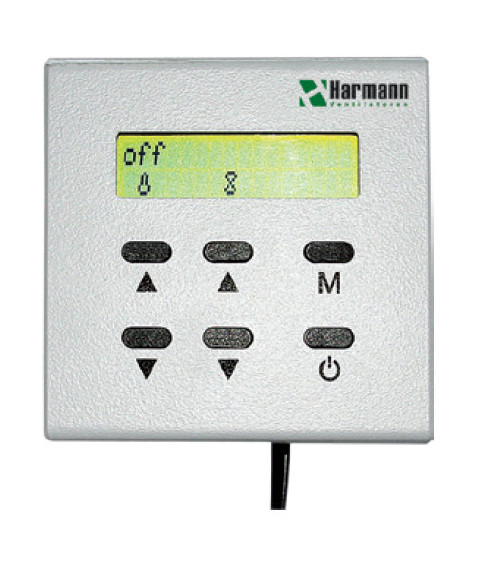

Single-phase motors 230V, 50Hz. Control of the control panel operation in the version with the controller takes place by means of a control panel with a built-in temperature sensor. The control panel is fully wired. The control board of the automation was installed in an internal cassette, allowing quick access to individual connections.
The automation also includes:
– filter contamination status sensor
– multiblade damper with actuator
– antifreeze protection
– room or supply air temperature sensor
Versions without automation are also available.

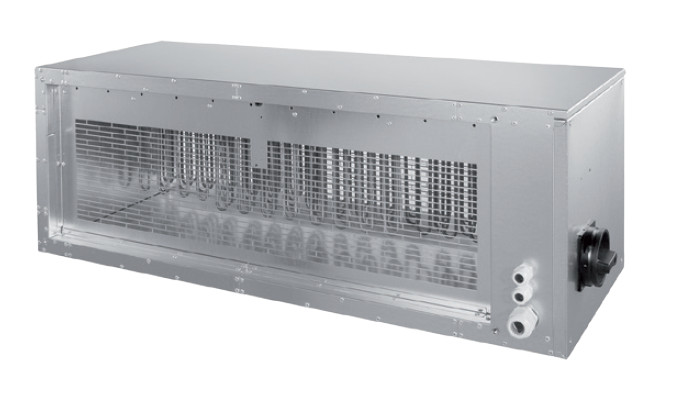

Heater
The control panel can be equipped with a water heater. The thermostats controlling the antifreeze protection and the supply air temperature are included in the set with the central unit. It is available in three sizes, 9, 18 and 27 kW heating power. The heater has a built-in temperature controller.

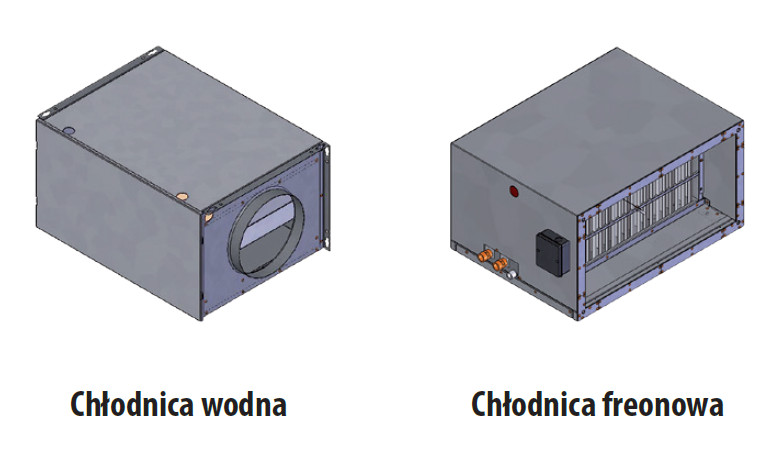

The control panel can be equipped with an ice water or a freon cooling system (Dxcoil)

Degree of protection: IPX4
Insulation class: F

The most important features:

4 types of central unit equipment
9 variants of implementation
integrated automation with control panel (models marked with the letter “J”)
efficiency up to 10,000 m3 / h
quiet and reliable work

Units with throttle without actuator and without automation

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]		 cat. nom
SL 6130 G01 01 3220 680 1440 – – 230 6,6 60 53 51 11654700
SL 6130 H01 01 2370 530 290 – – 230 1,7 57 50 51 11654600
SL 9130 G01 01 3730 750 2040 – – 230 9,6 60 53 73 11655800
SL 9130 H01 01 4750 580 570 – – 230 3,4 58 51 73 11655300
SL 9140 H01 01 6924 720 1090 – – 230 6,5 60 53 88 11665500
SL 12140 H01 01 9922 914 1890 – – 230 11 66 59 79 11978200



Centrals with throttle with actuator, F5 filter and water heater

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G02 01 2905 664 1270 3RR – 230 5,9 59 52 68
SL 6130 G02J 01 2905 664 1270 3RR – 230 5,9 59 52 71
SL 6130 H02 01 2000 552 280 2RR – 230 1,6 54 47 68
SL 6130 H02J 01 2000 552 280 2RR – 230 1,6 54 47 71
SL 9130 G02 01 3917 750 1790 3RR – 230 8,5 57 50 96
SL 9130 G02J 01 3917 750 1790 3RR – 230 8,5 57 50 99
SL 9130 H02 01 3882 563 580 2RR – 230 3,4 58 51 96
SL 9130 H02J 01 3882 563 580 2RR – 230 3,4 58 51 99
SL 9140 H02 01 5494 680 1090 3RR – 230 6,5 63 56 114
SL 9140 H02J 01 5494 680 1090 3RR – 230 6,5 63 56 116
SL 12140 H02 01 7995 870 1900 3RR – 230 11 65 58 115
SL 12140 H02J 01 7995 870 1900 3RR – 230 11 65 58 117



Centrals with throttle with actuator with return spring, F5 filter and water heater

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G02J 02 2905 664 1270 3RR – 230 5,9 59 52 71
SL 6130 H02J 02 2000 552 280 2RR – 230 1,6 54 47 71
SL 9130 G02J 02 3917 750 1790 3RR – 230 8,5 57 50 99
SL 9130 H02J 02 3882 563 580 2RR – 230 3,4 58 51 99
SL 9140 H02J 02 5494 680 1090 3RR – 230 6,5 63 56 116
SL 12140 H02J 02 7995 870 1900 3RR – 230 11 65 58 117



Centrals with throttle with actuator, F5 filter, water heater and water cooler

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G03 01 2576 672 1100 3RR 4RR 230 5,2 58 51 85
SL 6130 G03J 01 2576 672 1100 3RR 4RR 230 5,2 58 51 88
SL 9130 G03 01 3570 740 1620 3RR 4RR 230 8,3 56 49 120
SL 9130 G03J 01 3570 740 1620 3RR 4RR 230 8,3 56 49 123
SL 9130 H03 01 3243 560 540 2RR 3RR 230 3,3 60 53 120
SL 9130 H03J 01 3243 560 540 2RR 3RR 230 3,3 60 53 123
SL 9140 H03 01 4636 680 1040 3RR 4RR 230 6,3 65 58 138
SL 9140 H03J 01 4636 680 1040 3RR 4RR 230 6,3 65 58 140
SL 12140 H03 01 7125 883 1930 3RR 4RR 230 11 65 58 150
SL 12140 H03J 01 7125 883 1930 3RR 4RR 230 11 65 58 150



AHUs with throttle with actuator with return spring, F5 filter, water heater and water cooler

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G03J 04 2576 672 1100 3RR 4RR 230 5,2 58 51 88
SL 9130 G03J 04 3570 740 1620 3RR 4RR 230 8,3 56 49 123
SL 9130 H03J 04 3243 560 540 2RR 3RR 230 3,3 60 53 123
SL 9140 H03J 04 4636 680 1040 3RR 4RR 230 6,3 65 58 140
SL 12140 H03J 04 7125 883 1930 3RR 4RR 230 11 65 58 150



Centrals with throttle with actuator, F5 filter, water heater and freon cooler

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G03 02 2585 660 1100 3RR 4RR 230 5,2 58 51 85
SL 6130 G03J 02 2585 660 1100 3RR 4RR 230 5,2 58 51 88
SL 9130 G03 02 3544 740 1620 3RR 4RR 230 8,3 56 49 120
SL 9130 G03J 02 3544 740 1620 3RR 4RR 230 8,3 56 49 123
SL 9130 H03 02 3243 560 540 2RR 4RR 230 3,3 60 53 120
SL 9130 H03J 02 3243 560 540 2RR 4RR 230 3,3 60 53 123
SL 9140 H03 02 4636 680 1040 3RR 4RR 230 6,3 65 58 138
SL 9140 H03J 02 4636 680 1040 3RR 4RR 230 6,3 65 58 140
SL 12140 H03 02 7125 883 1930 3RR 4RR 230 11 65 58 150
SL 12140 H03J 02 7125 883 1930 3RR 4RR 230 11 65 58 150



Centrals with throttle with actuator with return spring, F5 filter, water heater and freon cooler

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G03J 03 2585 660 1100 3RR 4RR 230 5,2 58 51 88
SL 9130 G03J 03 3544 740 1620 3RR 4RR 230 8,3 56 49 123
SL 9130 H03J 03 3243 560 540 2RR 4RR 230 3,3 60 53 123
SL 9140 H03J 03 4636 680 1040 3RR 4RR 230 6,3 65 58 140
SL 12140 H03J 03 7125 883 1930 3RR 4RR 230 11 65 58 150



Centrals with throttle with actuator, F5 filter, water heater, water cooler and F7 filter

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G04 01 2030 650 1000 3RR 4RR 230 4,8 58 51 105
SL 6130 G04J 01 2030 650 1000 3RR 4RR 230 4,8 58 51 108
SL 9130 G04 01 3030 750 1440 3RR 4RR 230 7,8 56 49 135
SL 9130 G04J 01 3030 750 1440 3RR 4RR 230 7,8 56 49 138
SL 9140 H04 01 3600 680 990 3RR 4RR 230 5,9 65 58 153
SL 9140 H04J 01 3600 680 990 3RR 4RR 230 5,9 65 58 155



AHUs with throttle with actuator with return spring, F5 filter, water heater, water cooler and F7 filter

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G04J 04 2030 650 1000 3RR 4RR 230 4,8 58 51 108
SL 9130 G04 04 3030 750 1440 3RR 4RR 230 7,8 56 49 138
SL 9140 H04J 04 3600 680 990 3RR 4RR 230 5,9 65 58 155



Centrals with throttle with actuator, F5 filter, water heater, freon cooler and F7 filter

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G04 02 2020 650 1000 3RR 4RR 230 4,8 58 51 105
SL 6130 G04J 02 2020 650 1000 3RR 4RR 230 4,8 58 51 108
SL 9130 G04 02 3020 750 1440 3RR 4RR 230 7,8 56 49 135
SL 9130 G04J 02 3020 750 1440 3RR 4RR 230 7,8 56 49 138
SL 9140 H04 02 3570 680 990 3RR 4RR 230 5,9 65 58 153
SL 9140 H04J 02 3570 680 990 3RR 4RR 230 5,9 65 58 155



AHUs with throttle with actuator with return spring, F5 filter, water heater, freon cooler and F7 filter

Type Q max
[m3/h]		 Δp max
[Pa]		 P max
[W]		 heater cooler U
[V]		 I max
[A]		 L wA
[dB(A)]		 L pA
[dB(A)]		 m
[kg]
SL 6130 G04J 03 2020 650 1000 3RR 4RR 230 4,8 58 51 108
SL 9130 G04 03 3020 750 1440 3RR 4RR 230 7,8 56 49 138
SL 9140 H04J 03 3570 680 990 3RR 4RR 230 5,9 65 58 155
