air handling units: komfovent
DOMEKT REGO 250 PE

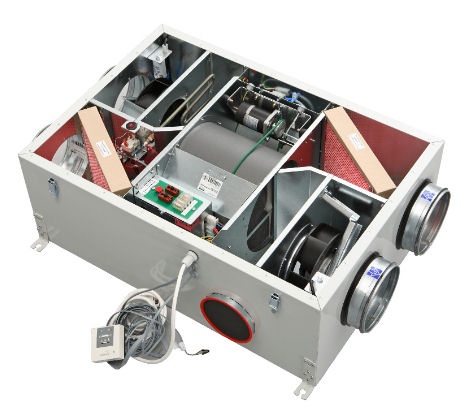

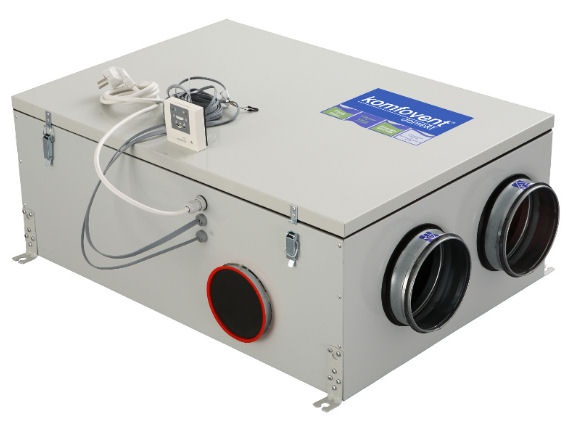

The REGO 250P ventilation unit is designed for ventilation of rooms up to 100 m2, for example small houses, flats, offices, conference rooms. Its rotating heat exchanger ensures a return of up to 80% of heat.
The height of the device, which is only 310 mm, enables installation in, for example, the suspended ceiling space. Possibility of horizontal assembly – to the ceiling, and vertical – mounting to the wall.
| Unit | Domekt R 250 F | ||
| Version | false ceiling | ||
| Air heater | electric | ||
| Heat exchanger type | rotary | ||
| Filters dimensions | mm | 278x258x46-M5 | |
| Control system | C6.1/C6.2 | ||
| Specification | jedn. | REGO 250P-EC |
| Air flow | m3/h | 200 |
| Power | V/Hz | 230/50/1 faza |
| Ventilator power | W | 2 x 77 |
| Rated current | A | 5,70 |
| Electric heater | kW | 1,0 |
| Efficiency of the heat exchanger | % | 80 |
| Return of the energy of the rotary heat exchanger | kW | 2,30 |
| Dimensions (Height x Width x Length) | mm | 550 x 310 x 890 |
| Supply air filter | mm | 278 x 258 x 46-F7 |
| Exhaust air filter | mm | 278 x 258 x 46-F7 |
| Dimensions of air connections | mm | 4×160 / 1×125 |
| Weight | kg | 41 |
| Thickness | mm | 25 |
|
RAL 7035 |
||
