air handling units: vasco

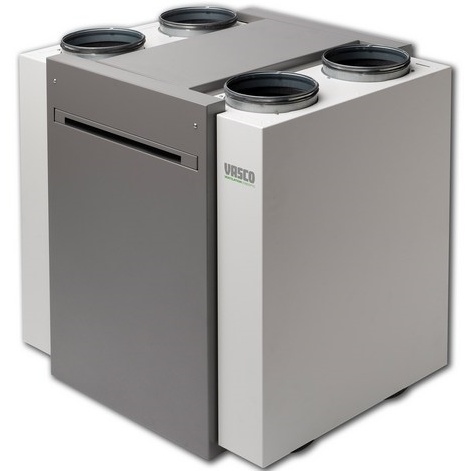

Recuperator D300/D400/D500

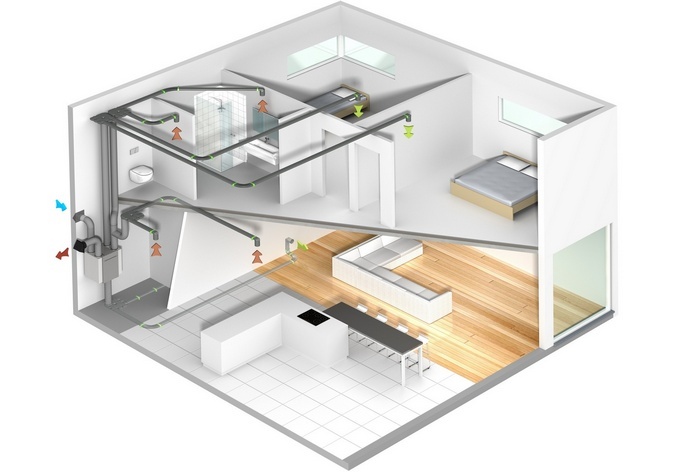

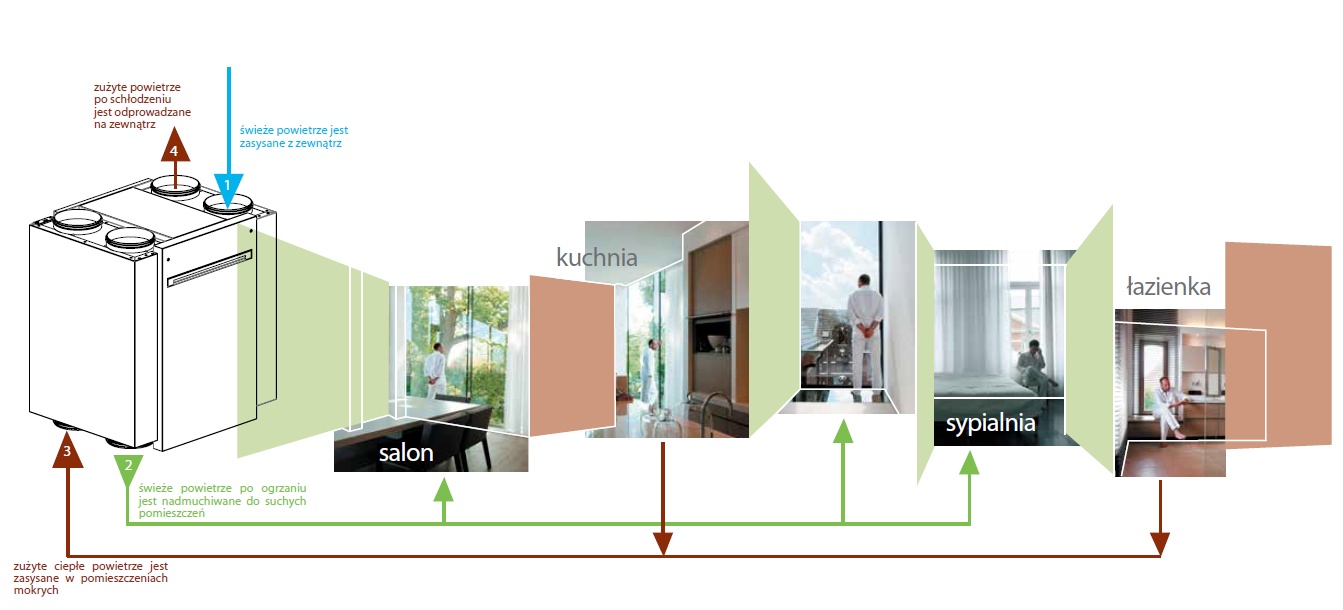

The ventilation unit with VASCO heat exchanger ensures proper ventilation of the whole house in a quiet and energy-saving way.

The steel casing of the device reduces the noise to a minimum – the inner surface of the walls is covered with a sound-absorbing material that also has fire-resistant properties (polyurethane foam with a polyester coating).

Equipped with a cross-flow counter-flow heat exchanger with a capacity of over 90%. Automatic protection against freezing in the winter and built-in, automatically controlled night bypass in the summer guarantee effective operation throughout the year.

Dust filters were placed in a drawer, thanks to which access to them and their exchange became very easy. The built-in filter contamination alarm reminds you to replace them (filter life of approx. 1.5 years).

Fans powered by DC motors with electronic commutation (EC).

The device is supplied with 1 piece of the EasyClik RF switch (three-position controller). For greater comfort, you can use several controllers (wireless, do not require electric power) in various places around the house.

Wall mounting, reversible device (left / right), internal channels from above and below.

Accessories:

– electric heater for outside air to D330 E (625 Watt)

– electric heater for outside air for D400 EP (1250 Watts)

– EASYCLICK RF (additional) – wireless three-position switch, with time-shift function, does not require electric power supply



E – option of using an electric heater for outside air

P – certificate of compliance for passive houses issued by the Institute of Passive Houses in Darmstadt

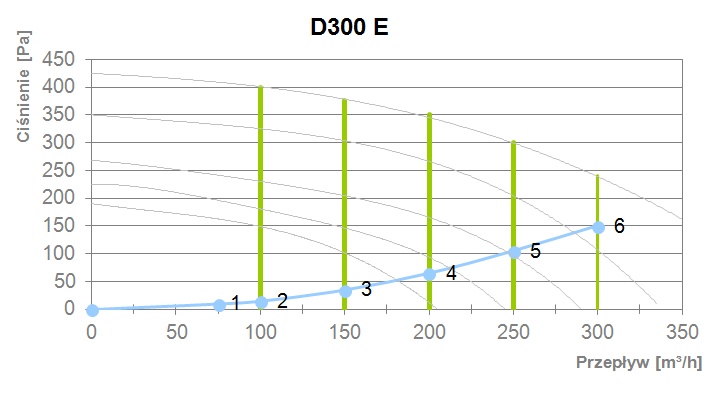

VASCO D300 E
1 2 3 4 5 6
Efficiency [m3/h] 75 100 150 200 250 300
Pressure [Pa] 10 15 35 65 105 150
Power consumption [W] 2 4 15 36 69 120
Amperage [A] 0,02 0,04 0,15 0,35 0,65 1,02
Voltage [V] 230 230 230 230 230 230

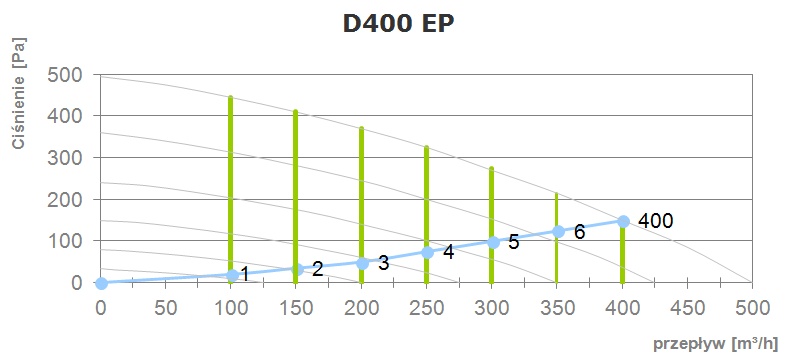

VASCO D400 (EP)
1 2 3 4 5 6 7
Efficiency [m3/h] 100 150 200 250 300 350 400
Pressure [Pa] 20 35 50 75 100 125 150
Power consumption [W] 17 31 51 81 120 174 236
Amperage [A] 0,14 0,26 0,43 0,66 0,95 1,35 1,80
Voltage [V] 230 230 230 230 230 230 230

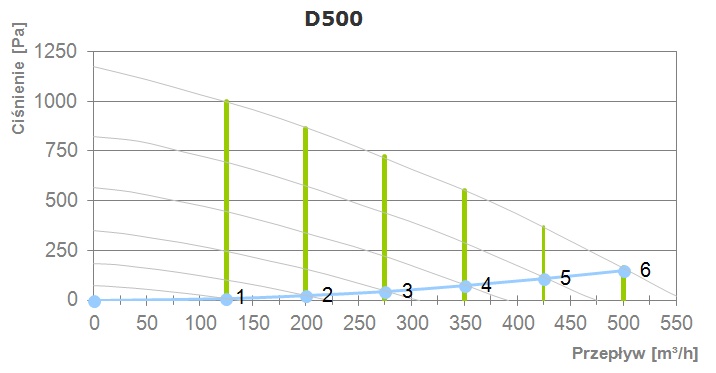

VASCO D500
1 2 3 4 5 6
Efficiency [m3/h] 125 200 275 350 425 500
Pressure [Pa] 10 25 45 75 110 150
Power consumption [W] 5 22 56 115 206 336
Amperage [A] 0,04 0,18 0,46 0,91 1,54 2,43
Voltage [V] 230 230 230 230 230 230
