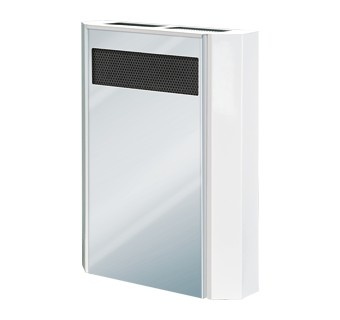

Central unit MICRA 60
Compact air handling unit with heat recovery for individual rooms. The control panel provides effective ventilation in a room up to 24m2, with simultaneous heat recovery in the winter and cooling of the air in the summer.
The housing is made of galvanized steel with a decorative polished stainless steel plate, polyethylene foam insulation covered with aluminum foil with a thickness of 15 mm.
Product features:
– effective ventilation of individual rooms
– plate, counter-current heat exchanger made of aluminum with recuperation efficiency up to 78%
– low voltage (12V) fans on low power EC motors
– integrated automation with 3 operating modes
– quiet operation (22-29 dBA ~ 3m)
– built-in G4 class filters
– designed for continuous operation
| MICRA 60 | |||
| Modes | 1 | 2 | 3 |
| Voltage [V] | 100-240/50-60 Hz | ||
| Power [W] | 4,2 | 9,6 | 15,4 |
| Amperage [A] | 0,02 | 0,04 | 0,07 |
| Efficiency [m3/h] | 30 | 45 | 60 |
| Rotor speed [min-1] | 1165 | 1720 | 2685 |
| Noise level [dB(A)~3m] | 22 | 25 | 29 |
| Protection class | IP 22 | IP 22 | IP 22 |
