rectangular ducts and fittings: climaver boards
Climaver Star
NEW 2016

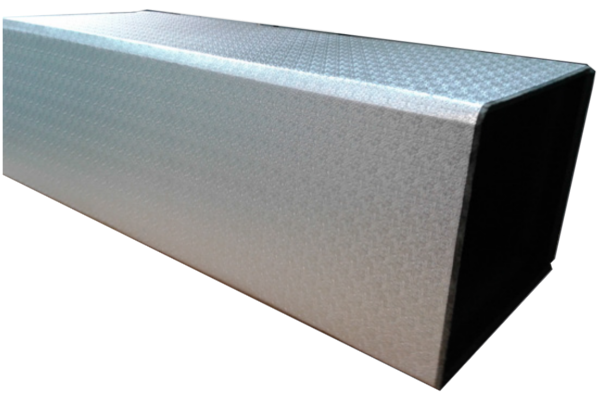

Plate with insulation for self-building ventilation ducts
Climaver Star is intended for outdoor use. Due to the use of high-density mineral wool, high thermal insulation is maintained (equivalent to a 50 mm insulating mat)
Climaver Star is a fully waterproof panel, coated on the outside with reinforced aluminum, lined with Neto fabric, resistant to mechanical cleaning.
Thanks to quick and easy assembly, Climaver Star is the ideal solution for installing self-supporting air distribution channels outside the building, even on the construction site.
The most important features
- resistance to aging
- high thermal insulation
- optimal acoustic properties
- resistant to aggressive cleaning methods
- excellent tightness thanks to the tongue and groove system
- LEED and BREEAM certification
| Thickness | 40 mm |
| Width | 1210 mm |
| Length | 3000 mm |
| Stifness class | R5 |
| Reaction to fire Euroclass |
strona wewn.: A2-s1,d0 strona zewn.: B-s1, d0 |
| Max. temp. | 100°C |
| Min. temp. | -30°C |
| Max pressure | 800 Pa |
| Max underpressure | -800 Pa |
| Air speed | 20 m/s |
| The class of tightness | D |
| Diffusion resistance of the external coating | 150 m2*h*Pa/mg |
| Max humidity | 98% |
