air conditioner units: cassette
4-sided H-inverter LG
UT24H/UT36H/UT42H/UT48H
The Split line was the first to adopt solutions from advanced VRF systems, based on simultaneous temperature and pressure control. The use of an additional sensor in the new LG aggregates, which directly analyzes and controls the pressure and temperature of the refrigerant, has improved the equipment parameters in terms of precision and work efficiency.
H-inverter Split series cassette air conditioners are dedicated to office rooms, restaurants, hotels, and conference rooms.

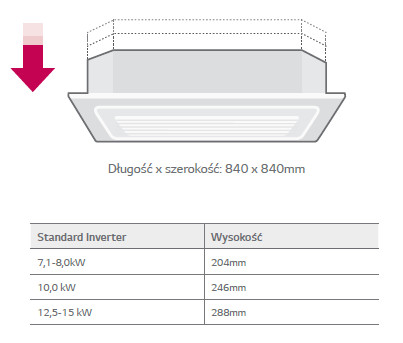

Thanks to the reduced dimensions of the casing, the possibilities of installing the air conditioner in different spaces have been extended.

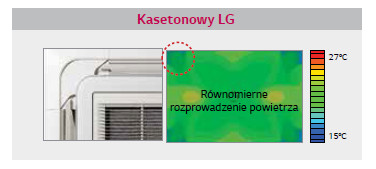

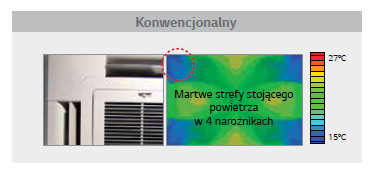

The high ceiling mode provides cooling and heating for the entire volume of rooms up to 4.2 m high. Improved blinds ensure even distribution of air, preventing the formation of so-called. dead zones.

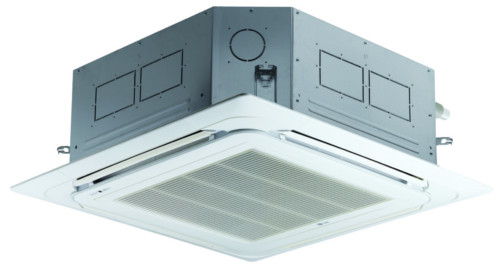

H-Inverter panel air conditioners use individual blind control motors, which gives the possibility of independent control of each of the four vents. The panels are fitted with easily removable corners, which facilitate the installation of the cassette, as well as service control of refrigeration connections and condensate drainage.
The new design of the air outlet reduces the effect of sticking the air stream to the ceiling, thus preventing it from getting dirty.

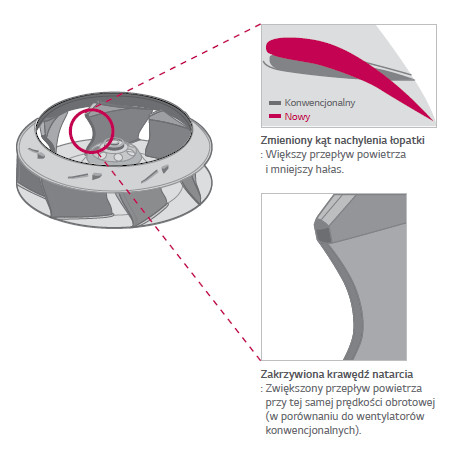

A modern 3D fan used in LG air conditioners, thanks to the innovative design increases the air flow while reducing the emitted noise by up to 3dB (A)
The most important features:
- BLDC compressor with a brushless DC motor
- BLDC fan motor
- voltage level control
- Wide Louver Plus louvres (increase in heating capacity of the outdoor unit by 11% and COP by 6% compared to conventional fins)
- optimization of refrigerant distribution
- a compressor equipped with two sensors: temperature and pressure
- intelligent load control
- wide range of work (outside temperature in cooling mode -15 ~ +48 st.C, outdoor temperature in heating mode -20 ~ +18 st C)
- quiet operation thanks to the new grill and fan design
- silent night operation of the aggregate by setting the switch on the PCB
- forced cooling mode
- Dry Contact outdoor unit
- weekly programmer
- Peak power control
- mode lock
- standby mode
LG commercial air conditioners are the certainty of innovative solutions, high quality workmanship and the highest level of comfort of use.
| Inside unit model | UT24H.NN1 | UT36H.NM4 | UT42H.NM4 | UT48H.NM4 | |
| Cooling min./nom./maks. [kW] | 2,8 / 7,0 / 8,4 | 4,5 / 9,5 / 13,0 | 5,0 / 12,1 / 14,5 | 5,5 / 13,4 / 16,0 | |
| Heating min./nom./maks. [kW] | 3,2 / 8,0 / 9,4 | 5,0 / 10,8 / 13,7 | 5,5 / 13,5 / 16,5 | 6,1 / 15,5 / 18,0 | |
| Power [Ø/V/Hz] | 1 / 220-240 / 50 | 1 / 220-240 / 50 | 1 / 220-240 / 50 | 1 / 220-240 / 50 | |
| SEER | 5,81 | 6,80 | – | – | |
| SCOP | 4,11 | 4,60 | – | – | |
| Air flow high / medium / low [m3/min] |
21,0 / 18,0 / 16,0 | 32,0 / 26,1 / 20,2 | 33,0 / 28,0 / 21,0 | 33,0 / 28,0 / 22,0 | |
| Sound power level, cooling, max [dB(A)] |
59 | 62 | 62 | 62 | |
| Inside unit sizes [Width x Height x Depth] | 840 x 246 x 840 | 840 x 288 x 840 | 840 x 288 x 840 | 840 x 288 x 840 | |
| Weight [kg] | 23,5 | 28,0 | 28,0 | 28,0 |
