air conditioner units: ducted

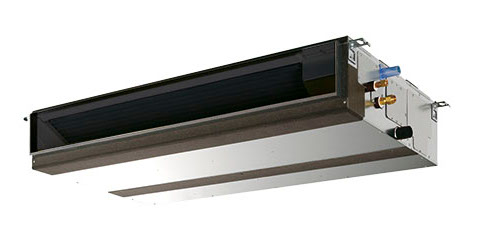

Mitsubishi duct unit PEAD-RP
Channel unit Single Split, Standard Inverter, PEAD-RP
The channel units of the Mr. series Slim is ideally suited wherever the installation space is limited, e.g. for inter-ceiling installation.
In all models, the same height of 250 mm is maintained (reduced in relation to the previous model). The wide range of pressures ensures the freedom to expand the system of ducts, branches and air outlet configurations, and allows you to customize the installation for applications in various conditions.
The devices are equipped with a built-in condensate pump to simplify condensate drainage. The delivery height depends on the type of indoor unit.
Automatic fan control provides the optimal amount of air depending on the power demand. The rotation mode adapts automatically to the conditions inside the room.
The device can be equipped with a Wi-Fi card and remotely controlled using the MELCloud software available for smartphones, tablets and computers. Downloadable software from the site http://www.melcloud.com
As a standard, the devices are factory-filled with R410A refrigerant.
| Inside unit | PEAD-RP35JAQ | PEAD-RP50JAQ | PEAD-RP60JAQ | PEAD-RP71JAQ | PEAD-RP100JAQ | PEAD-RP125JAQ | PEAD-RP140JAQ | |
| Cooling power (kW) | 3,6 (1,6-4,5) | 5,0 (2,3-5,6) | 6,1 (2,7-6,7) | 7,1 (3,3-8,1) | 9,5 (4,9-11,4) | 12,5 (5,5-14,0) | 13,4 (6,2-15,3) | |
| Heating power (kW) | 4,1 (1,6-5,2) | 6,0 (2,5-7,3) | 7,0 (2,8-8,2) | 8,0 (3,5-10,2) | 11,2 (4,5-14,0) | 14,0 (5,0-16,0) | 16,0 (5,7-18,0) | |
| SEER | Cooling | 5,6 | 5,5 | 5,8 | 5,6 | 5,5 | 4,9 | 4,7 |
| SCOP | Heating | 4,0 | 4,3 | 4,1 | 3,9 | 4,2 | 3,9 | 4,0 |
| Energy efficiency class cooling / heating | A+/A+ | A/A+ | A+/A+ | A+/A | A/A+ | -/- | -/- | |
| Air flow (m3/h) | Low | 600 | 720 | 870 | 1050 | 1440 | 1770 | 1920 |
| High | 840 | 1020 | 1260 | 1500 | 2040 | 2520 | 2760 | |
| Static pressure (Pa) | 35/50/70/100/150 | 35/50/70/100/150 | 35/50/70/100/150 | 35/50/70/100/150 | 35/50/70/100/150 | 35/50/70/100/150 | 35/50/70/100/150 | |
| Noice level dB(A) |
Low | 23 | 26 | 25 | 26 | 29 | 33 | 34 |
| High | 30 | 35 | 33 | 34 | 38 | 40 | 43 | |
| Dimensions (mm) |
Width | 900 | 900 | 1100 | 1100 | 1400 | 1400 | 1600 |
| Depth | 732 | 732 | 732 | 732 | 732 | 732 | 732 | |
| Height | 250 | 250 | 250 | 250 | 250 | 250 | 250 | |
| Weight (kg) | 26 | 28 | 33 | 33 | 41 | 43 | 47 | |
| Type | Description |
| PAC-YT52CRA | Wired pilot |
| PAR-31MAA | Wired pilot Deluxe |
| PAR-SL97A-E | Wireless pilot (nadajnik) |
| PAR-SA9CA-E | Wireless pilot (receiver) |
