air conditioner units: cassette

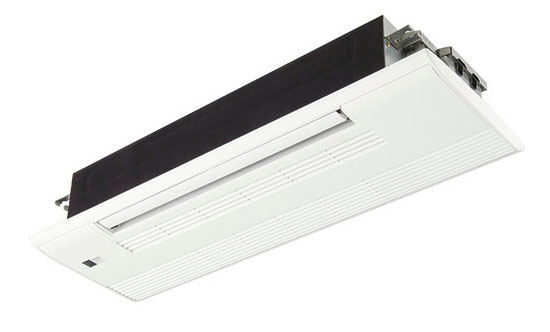

Mitsubishi MLZ-KA
MLZ-KA
A cassette unit with a one-sided air discharge ideally suited to rooms where the light source is placed in the middle, and space on the walls has been used for other purposes (wardrobes, shelves).
Where the interior design is most important, it is worth using a coffer unit, which, thanks to its small size and ceiling mounting, will perfectly adapt to any style

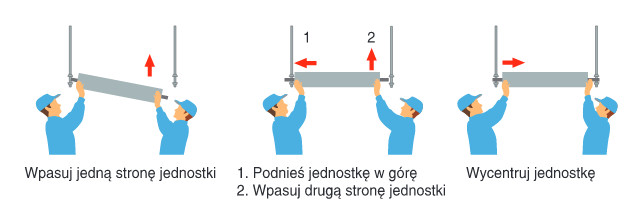

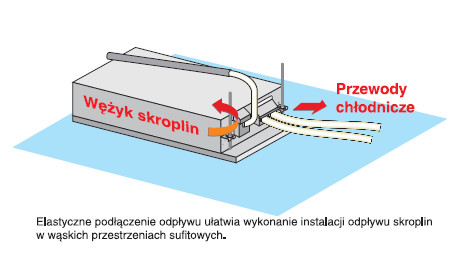

The unit’s construction is only 180 mm high. This guarantees easy installation even in situations where low inter-ceiling spaces limit the mounting surface. In addition, the unit has been fitted with elements to facilitate assembly (including a built-in condensate pump) and to reduce the time required for its execution.

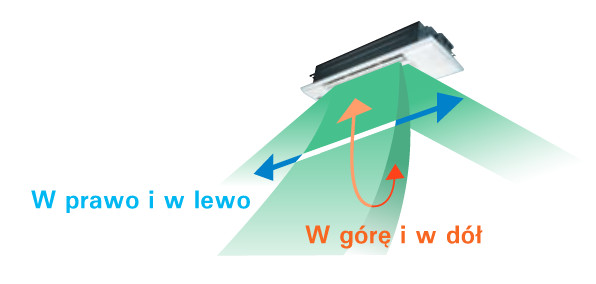

The operation of the blind in the cassette has been fully automated. With the remote control, you can control the air outlet by adjusting the airflow direction left, right, up and down. Thanks to this, the drafts problem is solved.
The MLZ series of cassette units is ideal for small inter-ceiling spaces.
| Inside unit | MLZ-KA25VA | MLZ-KA35VA | MLZ-KA50VA | |
| Panel | MLP-440W | MLP-440W | MLP-440W | |
| Cooling power (kW) | 2,5 | 3,5 | 5,0 | |
| Heating power (kW) | 3,3 | 4,0 | 6,0 | |
| Air flow in cooling mode (m3/h) | Low | 432 | 438 | 498 |
| High | 528 | 564 | 684 | |
| Noise level dB (A) |
Low | 29 | 31 | 34 |
| High | 35 | 38 | 43 | |
| Dimensions (mm)* | Width | 1102 | 1102 | 1102 |
| Depth | 360 | 360 | 360 | |
| Height | 180 | 180 | 180 | |
| Panel dimensions (mm)** | Width | 1200 | 1200 | 1200 |
| Depth | 414 | 414 | 414 | |
| Height | 34 | 34 | 34 | |
| Weight (kg) | 15 | 15 | 15 | |
* required height for building
** visible height of the mask
Accessories
| Type | Description |
| MAC-171FT-E | The enzyme filter neutralizing allergens |
| MAC-3004CF-E | Catechin filter |
