AC units by manufacturer: lennox

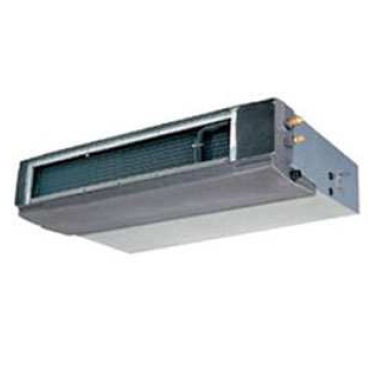

INHM CONDUCTAIR Split Lennox

INHM 18 NI, INHM 24 NI, INHM 36 NI

CONDUCTAIR is one of the most extensive LENNOX series of air conditioners. It includes cooling devices and heat pumps for connecting to ducts.

The indoor units are compact. They have been designed for installation in a limited space. The low noise level is achieved thanks to the complete insulation of the indoor unit.

Optionally, it is possible to approach the return air from the bottom (standard – from the back).

The most important features:

  • same dimensions of the panel and flange – easy replacement of the return side of the air
  • standard air connection
  • condensate pump up to 750 mm height optional
  • PTC heating tape in the aggregate
  • automatic defrost
INHM 18 NI INHM 24 NI INHM 36 NI
Pdesignc – cooling kW 5,3 7,2 10,5
Pdesignh – heating kW 5,3 8 10,5
SEER W/W 6,4 6,7 5,1
SCOP W/W 3,8 3,8 3,8
Power: 50 Hz V-Ph-Hz 220~240-1-50
Work current – cooling A 7,51 10,02 5,68
Work current – heating A 6,68 9,66 5,54
Air flow – indoor unit m3/h 1400/1100/1000 1700/1400/1250 2270/1890/1650
Air flow – outdoor unit m3/h 2500 3500 5500
Noise level – indoor unit dB (A) 45 46 43
Noise level – outdoor unit dB (A) 60 60 63
Indoor unit dimensions WxDxH (mm) 920x635x270 920x635x270 1200x865x300
Outdoor unit dimensions WxDxH (mm) 845x320x700 900x315x860 1120x435x1100
Indoor unit weight kg 28/31,5 28/31,5 44/52,5
Outdoor unit weight kg 46/50 59/63 77/88
Temperature range adjustment oC -15~50/-15~30
