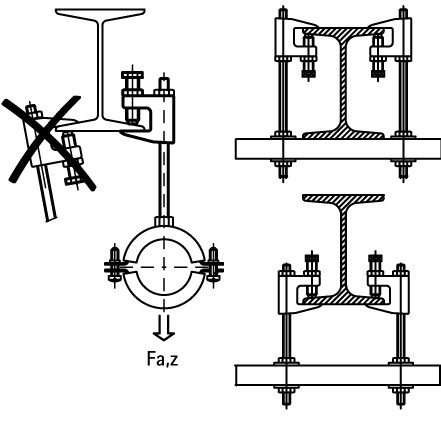

for a solid fixing to steel construction without the need for welding or drilling
according to VdS-regulations an additional safety strap should be used when supporting pipes above DN65
bolt with hexagon head according to DIN 933 strength class 8.8, screw point with cup ring according to EN ISO 4753 and lock nut
material: beam clamp made of cast iron; bolt of hardened steel, nut of steel, zinc plated
see also: BIS Safety Strap (page K 20 06)

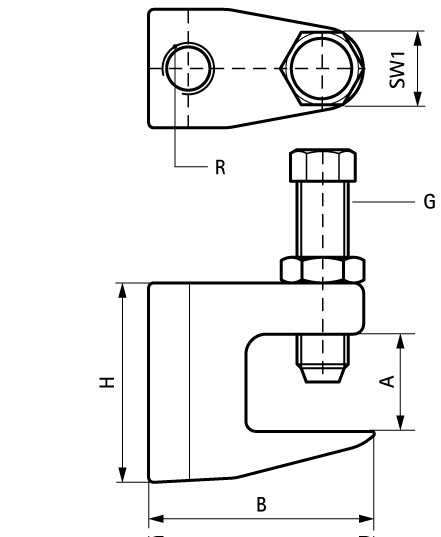

Part No.	Code	A(mm)	R	G	B(mm)	H(mm)	SW1(mm)	Fa,z(N)	FM	UL	VdS	Pack 1
6003006	TK10-M6	≤23	M6	M10	50	45	17	2,500	–	UL	–	50
6003208	TKN8-M8	≤18	M8	M8	38	35	13	1,200	–	UL	VdS	50
6003008	TK10-M8	≤23	M8	M10	50	45	17	2,500	–	UL	VdS	50
6003010	TKN10-M10	≤20	M10	M10	44	42	17	2,500	FM	UL	VdS	50
6003310	TK16-M10	≤28	M10	M12	58	58	19	2,500	FM	UL	VdS	25
6003012	TK12-M12	≤26	M12	M10	58	54	17	3,500	FM	UL	VdS	25
6003016	TK16-M16	≤28	M16	M12	58	58	19	5,500	FM	UL	VdS	25
6003905	TKN8-D9	≤18	Ø 9 mm	M8	38	35	13	1,200	–	UL	VdS	50
6003908	TK10-D9	≤23	Ø 9 mm	M10	50	45	17	2,500	–	UL	VdS	50
6003910	TKN10-D11	≤20	Ø 11 mm	M10	44	42	17	2,500	FM	UL	VdS	50
6003911	TKN10-D11-B	≤20	Ø 11 mm	M10	44	42	17	2,500	FM	–	VdS	10
6003912	TK12-D13	≤26	Ø 13 mm	M10	58	54	17	3,500	FM	UL	VdS	25

assembly materials: connecting elements

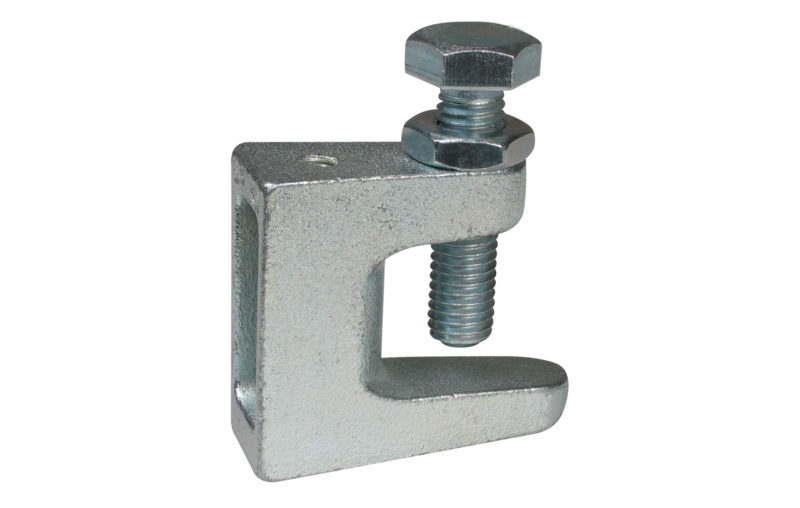

BIS Beam Clamp Model C
