assembly materials: connecting elements
hammered anchors and jigs Walraven

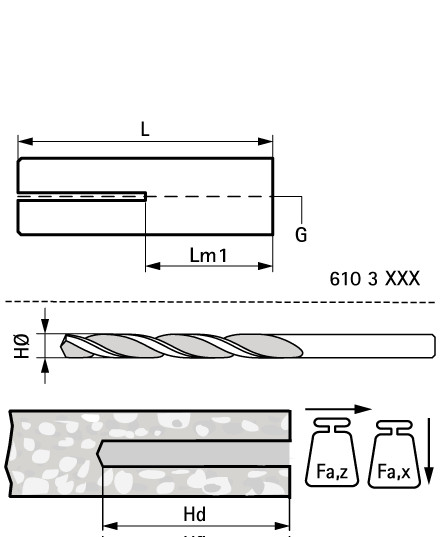

| Nr kat. | Model | G | L | Lm1 | HØ | Hd | T (max.) | Fa,z | Fa,x | ETA | FM | Pud. |
| (mm) | (mm) | (mm) | (Nm) | (N) | (N) | |||||||

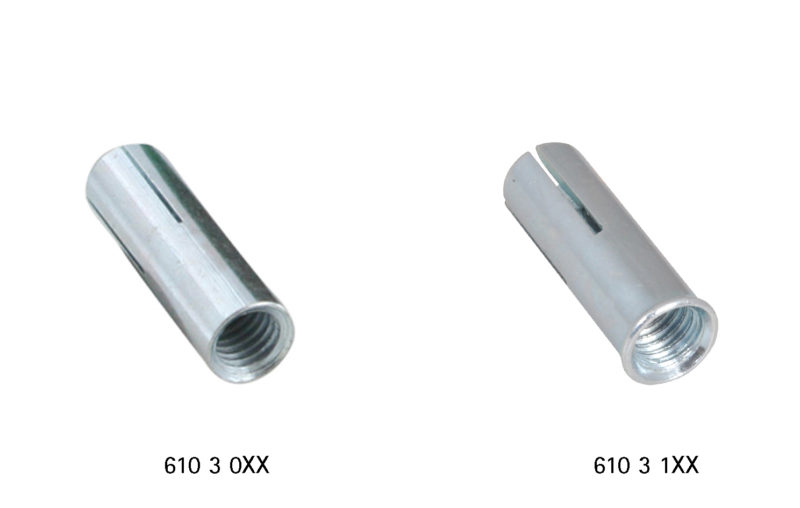

| 610 3 006 | Drop-in anchor | M6 | 25 mm | 11 | 8 | 30 | 4,5 | 1 520 | 1 520 | ETA | FM | 100 |
| 610 3 008 | Drop-in anchor | M8 | 30 mm | 13 | 10 | 32 | 11,0 | 3 000 | 3 000 | ETA | FM | 100 |
| 610 3 010 | Drop-in anchor | M10 | 40 mm | 15 | 12 | 42 | 22,0 | 4 570 | 4 570 | ETA | FM | 100 |
| 610 3 012 | Drop-in anchor | M12 | 50 mm | 20 | 15 | 53 | 38,0 | 6 430 | 6 430 | ETA | FM | 50 |
| 610 3 016 | Drop-in anchor | M16 | 65 mm | 25 | 20 | 70 | 98,0 | 13 310 | 13 310 | ETA | FM | 25 |
| 610 3 106 | Drop-in anchor lipped | M6 | 25 mm | 11 | 8 | 30 | 4,5 | 1 520 | 1 520 | ETA | FM | 100 |
| 610 3 108 | Drop-in anchor lipped | M8 | 30 mm | 13 | 10 | 32 | 11,0 | 3 000 | 3 000 | ETA | FM | 100 |
| 610 3 110 | Drop-in anchor lipped | M10 | 40 mm | 15 | 12 | 42 | 22,0 | 4 570 | 4 570 | ETA | FM | 100 |
| 610 3 112 | Drop-in anchor lipped | M12 | 50 mm | 20 | 15 | 54 | 38,0 | 6 430 | 6 430 | ETA | FM | 50 |
| 610 3 116 | Drop-in anchor lipped | M16 | 65 mm | 25 | 20 | 70 | 98,0 | 13 310 | 13 310 | ETA | FM | 25 |
| 691 8 008 | JIG | M8 | – | – | – | – | – | – | – | ETA | FM | 25 |
| 691 8 010 | JIG | M10 | – | – | – | – | – | – | – | ETA | FM | 25 |
| 690 2 012 | JIG | M12 | – | – | – | – | – | – | – | ETA | FM | 1 |
| 690 2 016 | JIG | M16 | – | – | – | – | – | – | – | ETA | FM | 2 |
