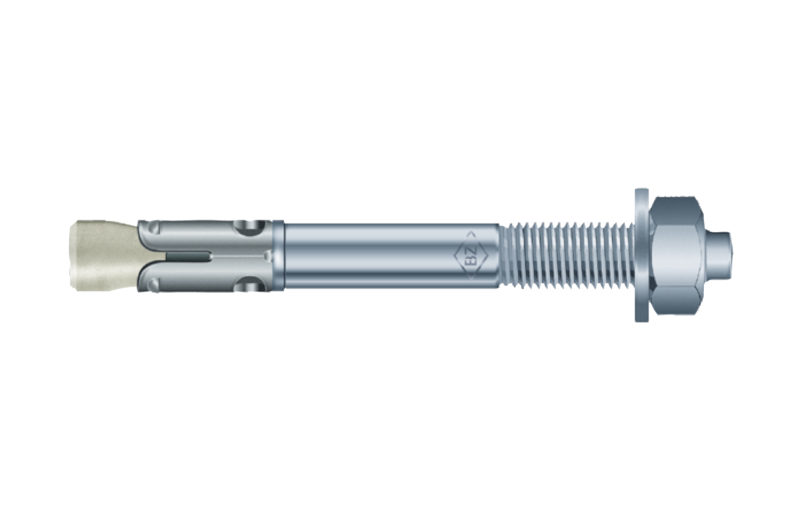

WTB1 Throughbolt Anchor
- high performance in cracked and non-cracked concrete
- possibility of through fixing
- suitable for use with Walraven rail systems
- innovative zinc flake coating preventing corrosion

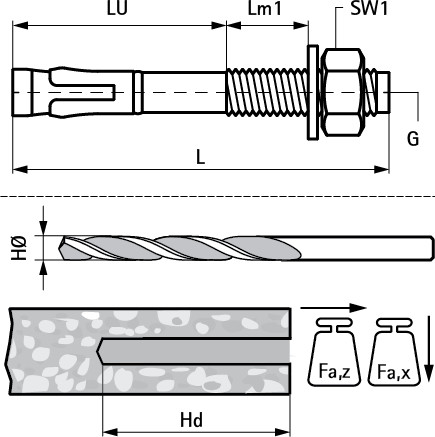

| Part No. | Code | D(mm) | L | Hnom(mm) | Hnom,r(mm) | HØ(mm) | Hd(mm) | Hdr2(mm) | T fix(mm) | T fix,r(mm) | T (max.)(Nm) | V Rks(N) | N Rks(N) | Pack 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 609831080 | WTB1 8×80 | 8 | 80 mm | 47 | 32 | 8 | 55 | 40 | 15 | 30 | 10.0 | 10,100 | 9,000 | 100 |
| 609831081 | WTB1 8×100 | 8 | 100 mm | 47 | 32 | 8 | 55 | 40 | 35 | 50 | 10.0 | 10,100 | 9,000 | 100 |
| 609831082 | WTB1 8×115 | 8 | 115 mm | 47 | 32 | 8 | 55 | 40 | 50 | 65 | 10.0 | 10,100 | 9,000 | 100 |
| 609831100 | WTB1 10×95 | 10 | 95 mm | 59 | 39 | 10 | 69 | 49 | 15 | 35 | 20.0 | 16,000 | 12,000 | 50 |
| 609831101 | WTB1 10×115 | 10 | 115 mm | 59 | 39 | 10 | 69 | 49 | 35 | 55 | 20.0 | 16,000 | 12,000 | 50 |
| 609831102 | WTB1 10×130 | 10 | 130 mm | 59 | 39 | 10 | 69 | 49 | 50 | 70 | 20.0 | 16,000 | 12,000 | 50 |
| 609831120 | WTB1 12×120 | 12 | 120 mm | 68 | 48 | 12 | 80 | 60 | 25 | 45 | 40.0 | 23,300 | 20,000 | 50 |
| 609831121 | WTB1 12×135 | 12 | 135 mm | 68 | 48 | 12 | 80 | 60 | 40 | 60 | 40.0 | 23,300 | 20,000 | 50 |
| 609831160 | WTB1 16×140 | 16 | 140 mm | 85 | 65 | 16 | 100 | 80 | 20 | 40 | 100.0 | 43,000 | 35,000 | 25 |
