air-heaters: accessories

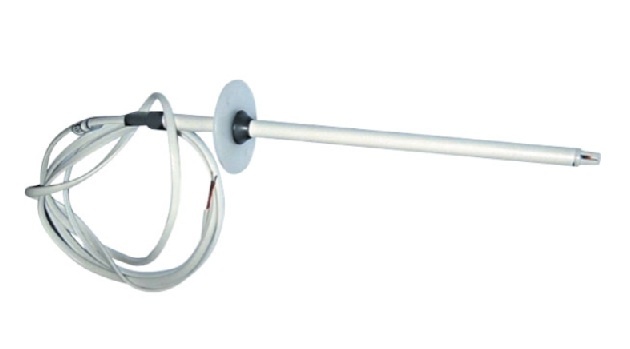

TJK10K Duct temperature sensor
TJK10K sensors are used in ventilation, air conditioning and heating systems to measure the temperature in the channel behind the heater. They can cooperate with various types of electric heater controllers as main sensors or as a limit of the maximum or minimum value of the supply air temperature.
A duct temperature sensor equipped with an NTCK10 thermistor (10KΩ resistance at 25 ° C) is providing the excellent stability of temperature characteristics. The measuring element was built in a special tube made of plastic. The depth of sensor assembly in the duct can be adapted to the needs due to the movable mounting flange.
– diameter – 7.5
– length – 1500 (200-tube)
– weight [g] – 40
– cable length [m] – 1.5
– degree of protection – IP20
