ventilating equipment: air intakes/exhausters

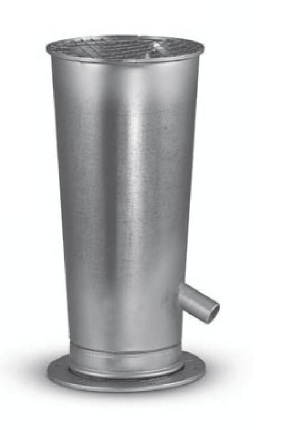

type D roof intake/exhaust
Supply and exhaust in low and medium pressure installations as the end of circular ventilation ducts, to outside air.
The body is made of steel. The base is finished with a galvanized steel flange.
Made of galvanized or acid-resistant sheet.

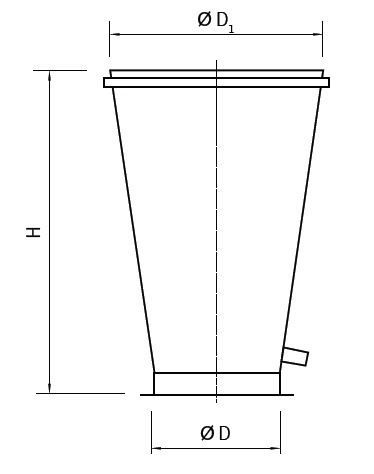

| ØD [mm] | ØD1 [mm] | H [mm] |
| 200 | 250 | 600 |
| 250 | 325 | 750 |
| 315 | 410 | 945 |
| 400 | 520 | 1200 |
| 500 | 650 | 1500 |
| 630 | 820 | 1890 |
| 800 | 1040 | 2400 |
