ventilating equipment: air intakes/exhausters

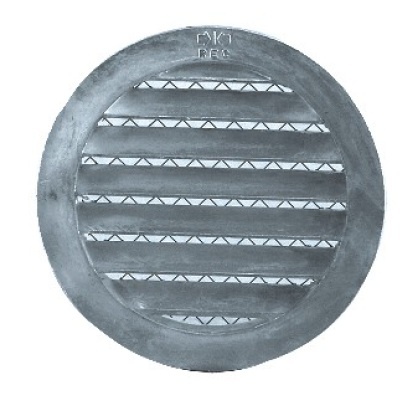

KWO Wall intake / exhaust
The canopy is adapted for mounting inside and outside the building. The grille is made of aluminum, has a stainless mesh on the inside. At the customer’s request, any color from the RAL palette.

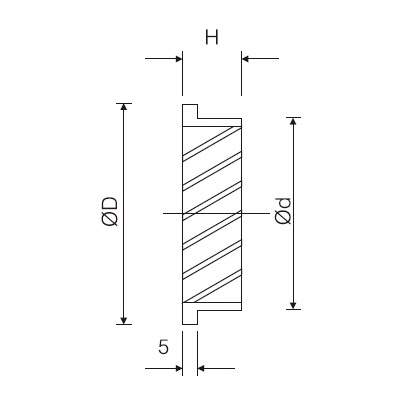

| Ød [mm] | ØD [mm] | H [mm] | masa [g] |
| 80 | 96 | 15 | 100 |
| 100 | 125 | 20 | 235 |
| 125 | 150 | 20 | 325 |
| 160 | 185 | 20 | 390 |
| 200 | 225 | 20 | 580 |
| 250 | 275 | 20 | 970 |
| 315 | 350 | 20 | 1895 |
| 400 | 435 | 35 | 3000 |
| 500 | 540 | 40 | 4500 |
