ventilating equipment: connection couplings

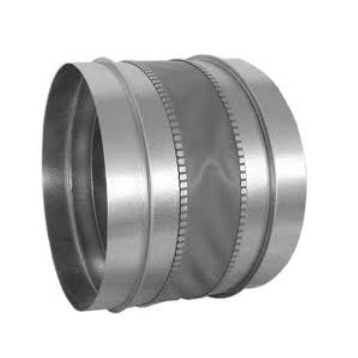

Circular flexible connectors pipes
The flexible connectors are mainly designed to eliminate the transfer of vibrations from the fan to the ventilation system.
Elastic connectors form 2 mounting frames, joined together with a vibration isolating material. The part made of galvanized steel sheet is made of nipple.

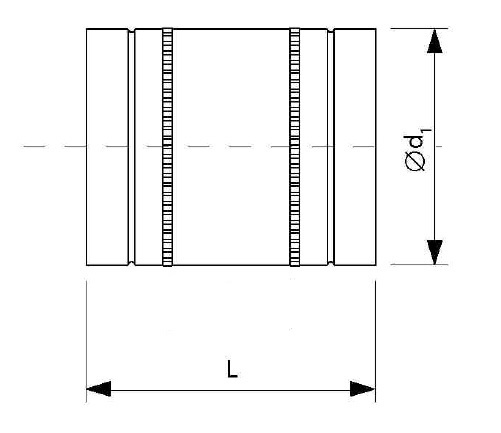

| Ød, nom [mm] | L [mm] | weight [kg] |
| 80 | 165 | 75 |
| 100 | 165 | 75 |
| 125 | 165 | 75 |
| 140 | 165 | 75 |
| 150 | 165 | 75 |
| 160 | 165 | 75 |
| 180 | 165 | 75 |
| 200 | 165 | 75 |
| 224 | 165 | 75 |
| 250 | 240 | 100 |
| 280 | 240 | 100 |
| 300 | 240 | 100 |
| 315 | 240 | 100 |
| 355 | 240 | 100 |
| 400 | 240 | 100 |
| 450 | 240 | 100 |
| 500 | 240 | 100 |
| 560 | 240 | 100 |
| 600 | 240 | 100 |
| 630 | 240 | 100 |
| 710 | 240 | 100 |
| 800 | 240 | 100 |
