flexible ducts: unisulated

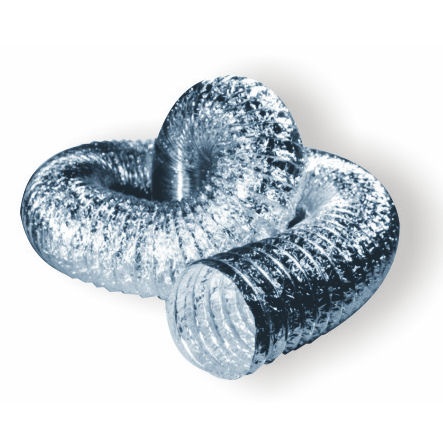

ALUDEC CLASSIC unisulated duct
High quality, flexible ducts made of 5-ply aluminum-polyester laminate. They are characterized by high resistance to mechanical damage. Reinforced with a steel wire spiral.
- 10-meter sections, squeezed in a cardboard box with a length of 0.4 m (diameter 102-315 mm),
- small package volume results in low transport and storage costs,
- easy to assemble, no special tools required,
Duct have the Polish Hygienic Certificate HK / B / 0846/02/2004.
A product of the renowned Dutch company DEC International.
SPECIFICATIONS
| temperature range: | -30 °C to 200 °C |
| operating pressure: | max. +2500 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 0.58 x ∅ |
| diameter range: | 76 – 508 mm |
| standard length: | 10 mtr |
CONSTRUCTION
| number of layers: | 5 |
| whereof aluminium: | 3 à 15 micron |
| whereof polyester: | 2 à 12 micron |
| total thickness: | 69 micron (without adhesive) |
| wire spacing: | 18 mm |
| appearance: | aluminium |
