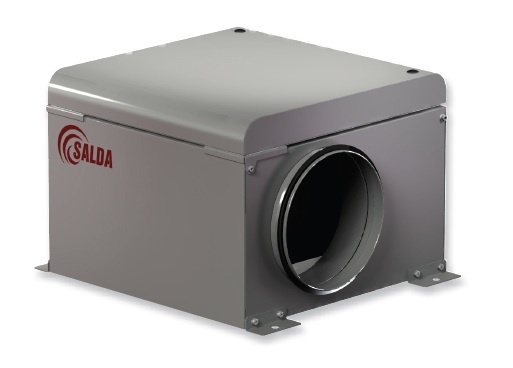

AKU Sound-insulated fan
Acoustically insulated duct fans used for supplying or extracting air in ventilation and air conditioning systems. Mounted on round ducts. They can be installed in all positions. Not intended for use with contaminated air, aggressive or explosive gases. Compact with easy access to the rotor for cleaning through the openable cover. In addition, the insulated fan box reduces the noise level to the environment.
Impeller: with forward curved blades in galvanized steel
Motor: with moving stator, with built-in thermal protection or lead-out contacts from windings and maintenance-free bearings.
Enclosure: for fans with 30mm insulation, galvanized steel housing, for fans with 50mm insulation, aluminum housing.
Sound insulation: mineral wool, 50mm and 30mm thick.

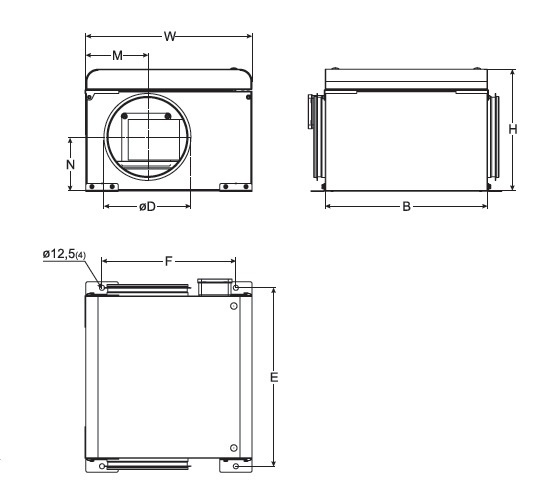

| Type | Sizes | |||||
| B | W | H | M | N | ØD | |
| AKUp 125 M | 392 | 400 | 300 | 150 | 151 | 125 |
| AKUp 125 D | 392 | 400 | 300 | 150 | 151 | 125 |
| AKUp 160 M | 392 | 400 | 300 | 170 | 151 | 160 |
| AKUp 160 D | 392 | 400 | 300 | 170 | 151 | 160 |
| AKUk 200 M | 444 | 444 | 420 | 222 | 250 | 200 |
| AKUp 200 D | 392 | 400 | 300 | 190 | 166 | 200 |
| AKUp 250 D | 694 | 694 | 420 | 268 | 220 | 250 |
| AKUk 250 D | 444 | 444 | 420 | 222 | 250 | 250 |
| AKUp 315 M | 694 | 694 | 420 | 236 | 234 | 315 |
| AKUp 315 D | 768 | 768 | 500 | 255 | 278 | 315 |
| AKUp 400 D | 768 | 768 | 500 | 295 | 268 | 400 |
