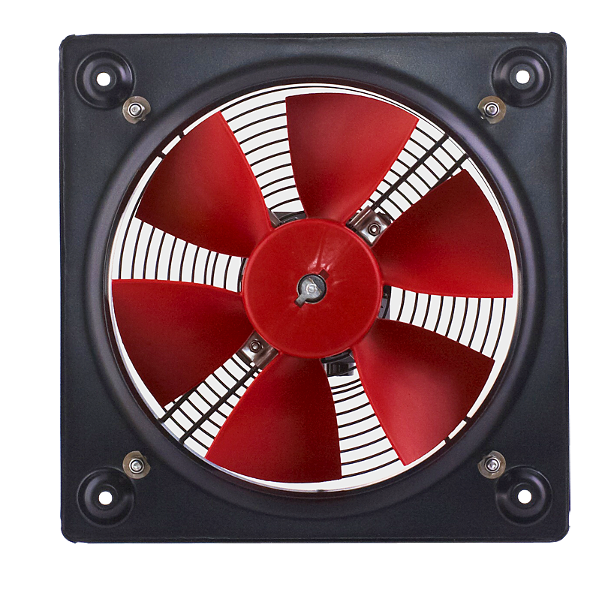

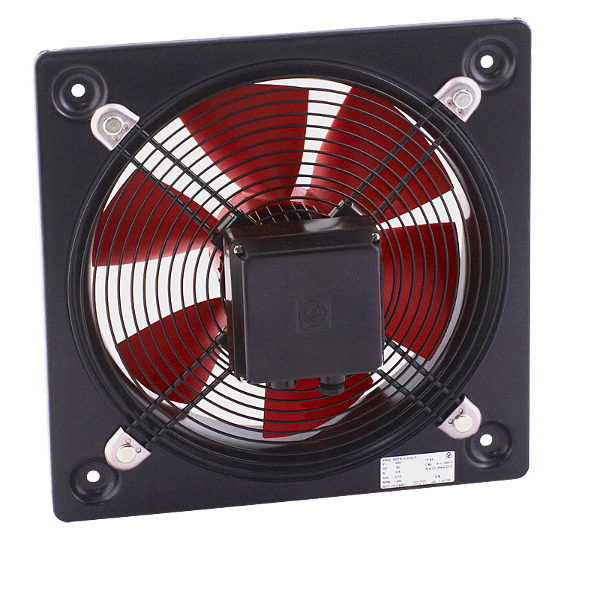

Axial fan COMPACT HCFT/B, HCBT/B

Wall axial fan for utility and industrial rooms

Axial fans series COMPACT are designed for general ventilation of rooms such as: wholesalers, halls, warehouses, car parks, breeding rooms. They are also used in air-conditioning devices.

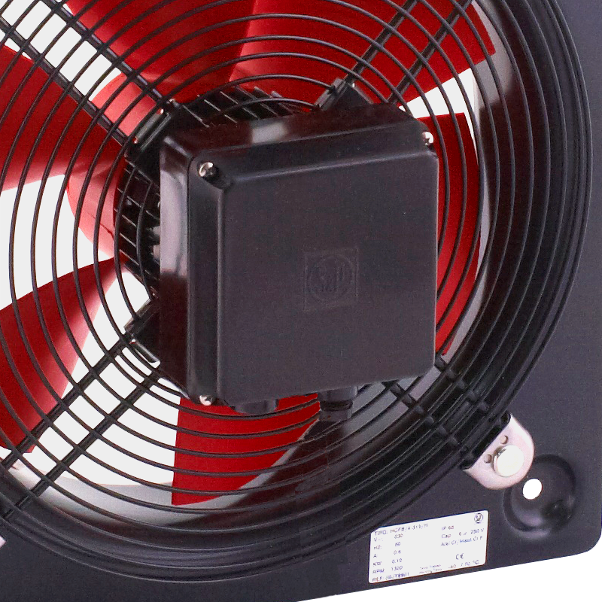

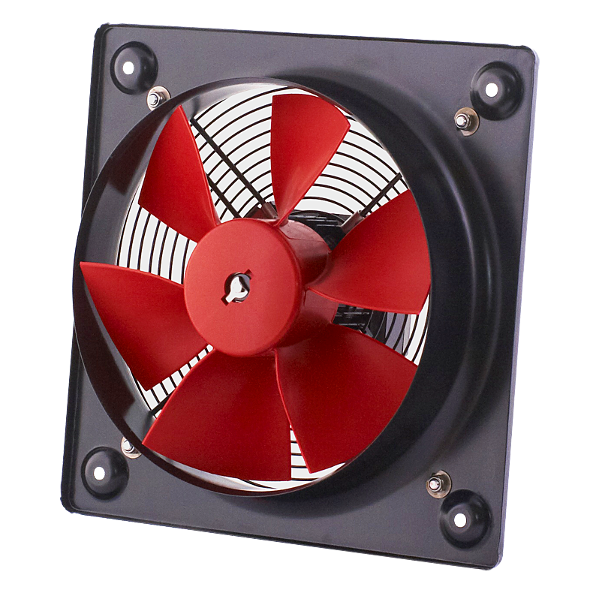

Construction
The COMPACT’s unique, compact design allows it to be mounted in any position. Impellers made of UV-resistant thermoplasts reinforced with glass fiber (HCFT / HCFB) or aluminum (HCBT / HCBB), dynamically balanced in accordance with ISO 1940. Extruded steel casing covered with black epoxy paint.

Engine
The fans of the COMPACT series are equipped with an asynchronous three-phase or single-phase motor, made in accordance with the UNE-113, IEC 34-1 standards. The engine is designed to work in a relative humidity of up to 95%. It has thermal protection of the winding against overload (except for bipolar models and 800, 900 and 1000) and is normally adapted to voltage speed control (details in technical data). Three-phase models are adapted for frequency converter control.

Standard COMPACT fans are equipped with a safety net, except for 800, 900 and 1000 models (net available on request)

Insulation class: F
Degree of protection: IP65

Name Pole Nominal
Voltage [V]		 Speed
r.p.m.		 P max [W] I
max [A]		 Q
max [m3/h]		 P static [Pa] Weight
[kg]		 Temp. min [°C] Temp. max [°C]
HCFB/6-315/HA 230 990 80 0.4 1560 31 7 -40 70
HCGB/2-315/LA 230 2690 374 1.6 3240 200 7 -40 70
HCGB/2-355/JA 230 2720 383 1.6 3550 205 8 -40 70
HCGT/2-315/GA 3x230V 230 2660 437 2.3 3650 210 7 -40 70
HCGT/2-315/GA 3x400V 400 2660 437 1.3 3650 210 7 -40 70
HCFT/4-250/HA 3x230V 230 1365 73 0.3 1110 44 5 -40 70
HCFT/4-250/HA 3x400V 400 1365 73 0.2 1110 44 5 -40 70
HCBT/4-250/HA 3x230V 230 1330 81 0.3 1120 38 5 -40 70
HCBT/4-250/HA 3x400V 400 1330 81 0.2 1120 38 5 -40 70
HCFB/4-250/HA 230 1380 77 0.3 1090 42 5 -40 70
HCBB/4-250/HA 230 1325 84 0.4 1130 41 5 -40 70
HCFT/4-315/HA 3x230V 230 1340 124 0.5 2170 61 7 -40 70
HCFT/4-315/HA 3x400V 400 1340 124 0.3 2170 61 7 -40 70
HCBT/4-315/HA 3x230V 230 1320 162 0.7 2370 67 7 -40 70
HCBT/4-315/HA 3x400V 400 1320 162 0.4 2370 67 7 -40 70
HCFB/4-315/HA 230 1340 125 0.6 2220 64 7 -40 70
HCBB/4-315/HA 230 1295 140 0.7 2310 64 7 -40 70
HCFT/4-355/HA 3x230V 230 1380 164 1.4 3370 78 8 -40 70
HCFT/4-355/HA 3x400V 400 1380 164 0.8 3370 78 8 -40 70
HCBT/4-355/HA 3x230V 230 1370 182 0.8 3480 93 8 -40 70
HCBT/4-355/HA 3x400V 400 1370 182 0.5 3480 93 8 -40 70
HCFB/4-355/HA 230 1415 168 0.8 3450 83 8 -40 70
HCBB/4-355/HA 230 1385 193 0.9 3560 97 8 -40 70
HCFT/4-400/HA 3x230V 230 1370 250 1.7 4740 95 9 -40 70
HCFT/4-400/HA 3x400V 400 1370 250 1 4740 95 9 -40 70
HCBT/4-400/HA 3x230V 230 1320 288 1.1 4880 110 9 -40 70
HCBT/4-400/HA 3x400V 400 1320 288 0.6 4880 110 9 -40 70
HCFB/4-400/HA 230 1420 271 1.2 4890 102 9 -40 70
HCBB/4-400/HA 230 1360 315 1.5 4830 108 9 -40 70
HCFT/4-450/HA 3x230V 230 1380 449 2.6 6640 131 13 -40 70
HCFT/4-450/HA 3x400V 400 1380 449 1.5 6640 131 -40 70
HCBT/4-450/HA 3x230V 230 1350 511 1.6 6310 133 13 -40 70
HCBT/4-450/HA 3x400V 400 1350 511 0.9 6310 133 13 -40 70
HCFB/4-450/HA 230 1380 463 1.9 6650 130 13 -40 70
HCBB/4-450/HA 230 1410 626 2.8 7180 169 13 -40 70
HCFT/4-500/HA 3x230V 230 1460 767 3.5 9750 173 16 -40 70
HCFT/4-500/HA 3x400V 400 1460 767 2 9750 173 16 -40 70
HCBT/4-500/HA 3x230V 230 1390 809 2.7 9030 169 16 -40 70
HCBT/4-500/HA 3x400V 400 1390 809 1.6 9030 169 16 -40 70
HCFB/4-500/HA 230 1400 675 2.9 8810 140 16 -40 70
HCBB/4-500/HA 230 1365 787 3.4 8810 156 16 -40 70
HCFT/4-560/HA 3x230V 230 1405 1051 3.7 12280 171 22 -40 70
HCFT/4-560/HA 3x400V 400 1405 1051 2.1 12280 171 22 -40 70
HCBT/4-560/HA 3x230V 230 1390 1287 4 12760 204 22 -40 70
HCBT/4-560/HA 3x400V 400 1390 1287 2.3 12760 204 22 -40 70
HCFB/4-560/HA 230 1410 1102 4.7 12980 189 22 -40 70
HCBB/4-560/HA 230 1370 1266 5.7 12580 196 22 -40 70
HCFT/4-630/HA 3x230V 230 1425 1582 5 17900 220 25 -40 70
HCFT/4-630/HA 3x400V 400 1425 1582 2.9 17900 220 25 -40 70
HCBT/4-630/HA 3x230V 230 1385 1736 5.4 16840 236 25 -40 70
HCBT/4-630/HA 3x400V 400 1385 1736 3.1 16840 236 25 -40 70
HCFB/4-630/HA 230 1380 1573 7.1 17230 198 25 -40 70
HCBB/4-630/HA 230 1360 1879 8.3 16550 245 25 -40 70
HCFT/6-355/HA 3x230V 230 925 83 0.3 2260 34 8 -40 70
HCFT/6-355/HA 3x400V 400 925 83 0.2 2260 34 8 -40 70
HCBT/6-355/HA 3x230V 230 900 91 0.3 2270 37 8 -40 70
HCBT/6-355/HA 3x400V 400 900 91 0.2 2270 37 8 -40 70
HCFB/6-355/HA 230 920 81 0.4 2250 33 8 -40 70
HCBB/6-355/HA 230 910 84 0.4 2230 35 8 -40 70
HCFT/6-400/HA 3x230V 230 880 107 0.5 3070 36 9 -40 70
HCFT/6-400/HA 3x400V 400 880 107 0.3 3070 36 9 -40 70
HCBT/6-400/HA 3x230V 230 840 120 0.5 3050 40 9 -40 70
HCBT/6-400/HA 3x400V 400 840 120 0.3 3050 40 9 -40 70
HCFB/6-400/HA 230 885 100 0.4 2980 35 9 -40 70
HCBB/6-400/HA 230 845 112 0.5 3010 37 9 -40 70
HCFT/6-450/HA 3x230V 230 945 179 0.9 4530 65 13 -40 70
HCFT/6-450/HA 3x400V 400 945 179 0.5 4530 65 13 -40 70
HCBT/6-450/HA 3x230V 230 945 184 0.9 4490 65 13 -40 70
HCBT/6-450/HA 3x400V 400 945 184 0.5 4490 65 13 -40 70
HCFB/6-450/HA 230 895 164 0.7 4390 59 13 -40 70
HCBB/6-450/HA 230 880 178 0.8 4400 61 13 -40 70
HCFT/6-500/HA 3x230V 230 920 232 1 6060 66 16 -40 70
HCFT/6-500/HA 3x400V 400 920 232 0.6 6060 66 16 -40 70
HCBT/6-500/HA 3x230V 230 910 261 0.5 6060 72 16 -40 70
HCBT/6-500/HA 3x400V 400 910 261 0.3 6060 72 16 -40 70
HCFB/6-500/HA 230 905 219 1 5820 62 16 -40 70
HCBB/6-500/HA 230 910 276 1.2 5900 81 16 -40 70
HCFT/6-560/HA 3x230V 230 925 337 1.2 8320 78 22 -40 70
HCFT/6-560/HA 3x400V 400 925 337 0.7 8320 78 22 -40 70
HCBT/6-560/HA 3x230V 230 895 421 1.4 8650 87 22 -40 70
HCBT/6-560/HA 3x400V 400 895 421 0.8 8650 87 22 -40 70
HCFB/6-560/HA 230 905 321 1.3 8120 76 22 -40 70
HCBB/6-560/HA 230 905 456 1.9 8880 94 22 -40 70
HCFT/6-630/HA 3x230V 230 920 534 2.1 11400 92 25 -40 70
HCFT/6-630/HA 3x400V 400 920 534 1.2 11400 92 25 -40 70
HCBT/6-630/HA 3x230V 230 910 596 2.3 10950 106 25 -40 70
HCBT/6-630/HA 3x400V 400 910 596 1.3 10950 106 25 -40 70
HCFB/6-630/HA 230 925 510 2.8 11310 88 25 -40 70
HCBB/6-630/HA 230 910 614 3 10580 104 25 -40 70
HCBT/6-710/HA 3x230V 230 950 953 4.7 15330 136 27 -40 70
HCBT/6-710/HA 3x400V 400 950 953 2.7 15330 136 27 -40 70
HCFT/6-710/HA 3x230V 230 955 888 4.5 16160 125 27 -40 70
HCFT/6-710/HA 3x400V 400 955 888 2.6 16160 125 27 -40 70
HCFT/4-710/HA 3x230V 230 1375 2413 7.4 22140 260 27 -40 70
HCFT/4-710/HA 3x400V 400 1375 2413 4.3 22140 260 27 -40 70
HCBT/4-710/HA 3x230V 230 1350 2554 7.6 22300 273 27 -40 70
HCBT/4-710/HA 3x400V 400 1350 2554 4.4 22300 273 27 -40 70
HCFT/4-800/LA 3x230V 230 1420 2308 6.6 22750 390 37 -20 40
HCFT/4-800/LA 3x400V 400 1420 2308 3.8 22750 390 37 -20 40
HCFT/4-800/HA(3kW) 3x230V 230 1450 4344 12.5 33410 450 52 -20 40
HCFT/4-800/HA(3kW) 3x400V 400 1450 4344 7.2 33410 450 52 -20 40
HCBT/4-900/LA-X(3kW) 3x230V 230 1450 3909 12 34270 480 96 -20 40
HCBT/4-900/LA-X(3kW) 3x400V 400 1450 3909 6.9 34270 480 96 -20 40
HCFT/4-900/LA-X(3kW) 3x230V 230 1460 3845 11.3 25550 440 94 -20 40
HCFT/4-900/LA-X(3kW) 3x400V 400 1460 3845 6.5 25550 440 94 -20 40
HCBT/4-900/HA-X(5.5kW) 3x400V 400 1455 7893 13.4 46270 500 112 -20 40
HCFT/4-900/HA-X(5.5kW) 3x230V 400 1460 7090 12.3 45550 420 110 -20 40
HCFT/6-800/L-X 3x230V 230 940 1042 3.5 18310 175 31 -20 40
HCFT/6-800/L-X 3x400V 400 940 1042 2 18310 175 31 -20 40
HCBT/6-800/LA-X(0.75kW) 3x230V 230 940 1025 3.3 17600 198 31 -20 40
HCBT/6-800/LA-X(0.75kW) 3x400V 400 940 1025 1.9 17600 198 31 -20 40
HCFT/6-800/HA 3x230V 230 945 1160 3.8 19960 188 36 -20 40
HCFT/6-800/HA 3x400V 400 945 1160 2.2 19960 188 36 -20 40
HCBT/6-900/LA-X(1.1kW) 3x230V 230 960 1341 4.8 23700 220 88 -20 40
HCBT/6-900/LA-X(1.1kW) 3x400V 400 960 1341 2.8 23700 220 88 -20 40
HCFT/6-900/L-X(1.1kW) 3x230V 230 965 1266 4.7 23160 190 86 -20 40
HCFT/6-900/L-X(1.1kW) 3x400V 400 965 1266 2.7 23160 190 86 -20 40
HCBT/6-900/HA-X(1.5kW) 3x230V 230 955 2289 7.3 32300 210 95 -20 40
HCBT/6-900/HA-X(1.5kW) 3x400V 400 955 2289 4.2 32300 210 95 -20 40
HCFT/6-900/HA-X(1.5kW) 3x230V 230 955 2202 7.1 31720 163 93 -20 40
HCFT/6-900/HA-X(1.5kW) 3x400V 400 955 2202 4.1 31720 163 93 -20 40
HCBT/8-800/LA 3x230V 230 1410 2632 7.3 23290 449 37 -20 40
HCBT/8-800/LA 3x400V 400 1410 2632 4.2 23290 449 37 -20 40
HCFT/4-1000/L-X 3x230V 400 1440 5098 8.2 38800 480 67 -20 40
HCFT/4-1000/L-X 3x400V 230 1440 5098 14.2 38800 480 67 -20 40
HCBT/4-1000/LA 3x230V 230 1415 5048 14.2 39910 535 67 -20 40
HCBT/4-1000/LA 3x400V 400 1415 5048 8.2 39910 535 67 -20 40
HCFT/4-1000/HA 3x400V 400 1450 8053 13.5 47380 520 95 -20 40
HCBT/4-1000/HA 3x400V 400 1440 9227 15.1 49200 580 95 -20 40
HCFT/6-1000/LA 3x230V 230 940 1749 5.7 28970 218 54 -20 40
HCFT/6-1000/LA 3x400V 400 940 1749 3.3 28970 218 54 -20 40
HCBT/6-1000/LA 3x230V 230 940 1855 5.9 28810 233 54 -20 40
HCBT/6-1000/LA 3x400V 400 940 1855 3.4 28810 233 54 -20 40
HCFT/6-1000/HA 3x230V 230 945 2627 8.1 37980 220 62 -20 40
HCFT/6-1000/HA 3x400V 400 945 2627 4.7 37980 220 62 -20 40
HCBT/6-1000/H-X(1.5kW) 3x230V 230 940 2795 8.5 37710 240 62 -20 40
HCBT/6-1000/H-X(1.5kW) 3x400V 400 940 2795 4.9 37710 240 62 -20 40
HCBT/6-800/HA-X(0.75kW) 3x230V 230 935 1309 4.2 20590 205 36 -20 40
HCBT/6-800/HA-X(0.75kW) 3x400V 400 935 1309 2.4 20590 205 36 -20 40
HCBT/4-800/HA-X(3kW) 3x230V 230 1440 4595 12.8 33100 480 52 -20 40
HCBT/4-800/HA-X(3kW) 3x400V 400 1440 4595 7.4 33100 480 52 -20 40

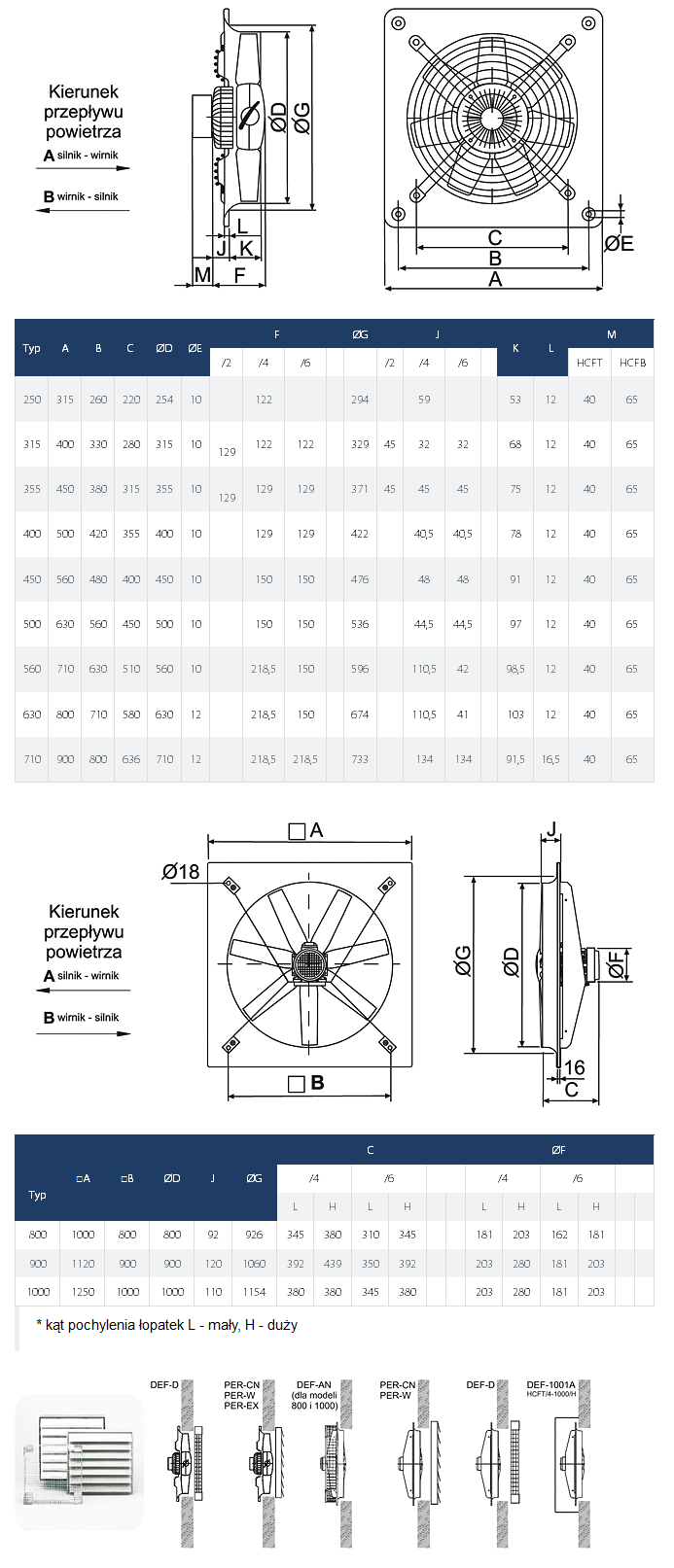

WYMIARY:



wymiary

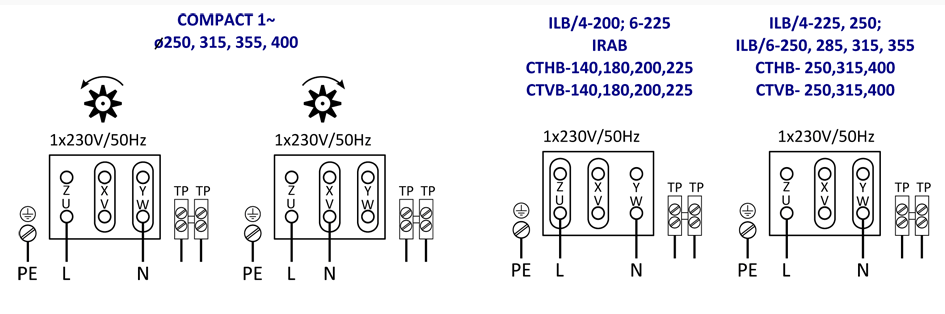

SCHEMAT PODŁĄCZENIA ELEKTRYCZNEGO:
