air handling units: vents

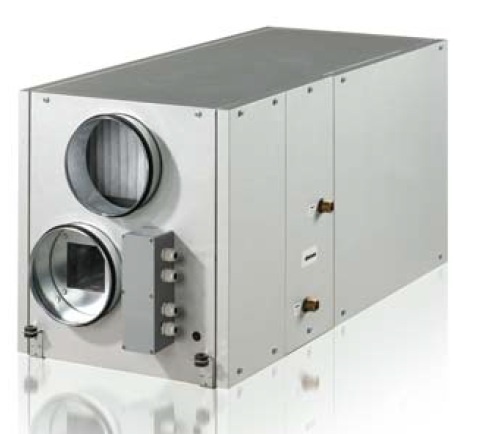

VUT EH, VUT WH
Supply and exhaust ventilation unit with heat recovery and secondary heater, capacity up to 2000 m3 / h, in an insulated housing. Efficiency of recuperation up to 65% (EH) and 68% (WH).
variants:
– VUT EH – models with a secondary electric heater and fans with asynchronous motors.
– VUT WH – models with secondary water heater and fans with asynchronous motors.
The unit is equipped with filters with filtration class G4 (exhaust) and F7 (supply).
The central unit is equipped with an automation system with a control panel, by means of which the user can program the operating time of the control panel, its efficiency and the temperature of the supplied air.
| Type | Efficiency [m3/h] | Max. fan power [W] | Max. temp. [°C] |
| VUT 350 EH | 350 | 2×130 | -25/+40 |
| VUT 500 EH | 500 | 2×150 | -25/+40 |
| VUT 600 EH | 600 | 2×195 | -25/+40 |
| VUT 1000 EH | 1200 | 2×410 | -25/+40 |
| VUT 2000 EH | 2200 | 2×650 | -25/+40 |
| VUT 1000 WH | 1100 | 2×410 | -25/+40 |
| VUT 2000 WH | 2100 | 2×650 | -25/+40 |

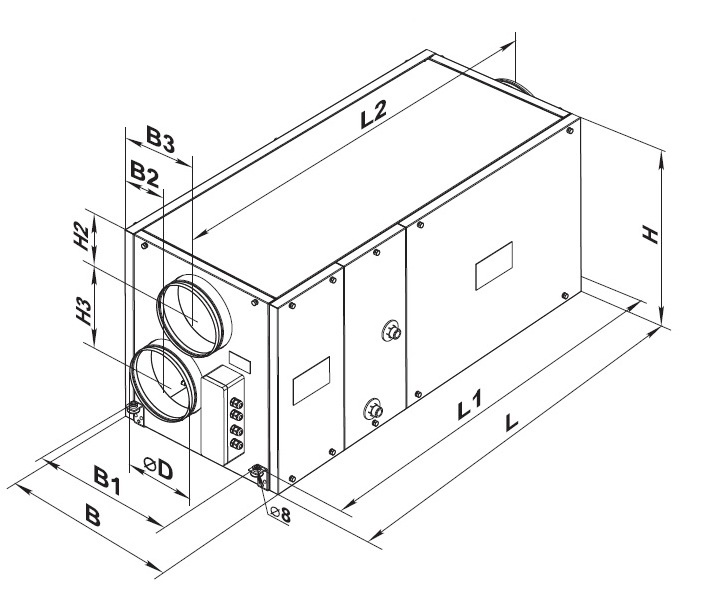

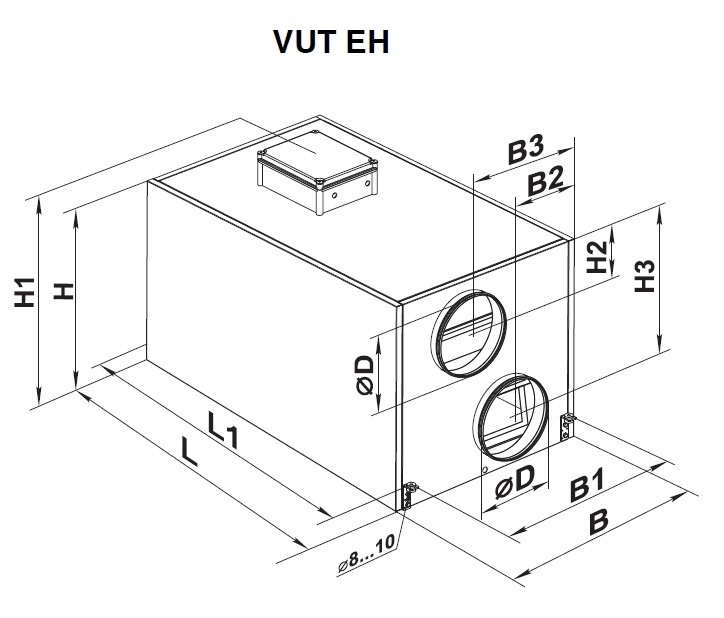

| Type | Sizes [mm] | ||||||||||
| ØD | B | B1 | B2 | B3 | H | H1 | H2 | H3 | L | L1 | |
| VUT 350 EH | 124 | 497 | 403 | 348 | 248 | 554 | – | 111 | 230 | 954 | 996 |
| VUT 500 EH | 149 | 497 | 403 | 348 | 248 | 554 | – | 111 | 230 | 954 | 996 |
| VUT 600 EH | 199 | 497 | 403 | 348 | 248 | 554 | – | 111 | 230 | 954 | 996 |
| VUT 1000 EH | 249 | 613 | 460 | 306 | 386 | 698 | 832 | 154 | 280 | 1071 | 1117 |
| VUT 1000 WH | 249 | 613 | 460 | 306 | 386 | 698 | 832 | 154 | 280 | 1071 | 1117 |
| VUT 2000 EH | 314 | 842 | 581 | 520 | 320 | 814 | 947 | 201 | 595 | 1345 | 1388 |
| VUT 2000 WH | 314 | 842 | 581 | 520 | 320 | 814 | 947 | 201 | 595 | 1345 | 1388 |
