air conditioner units: wall mounted

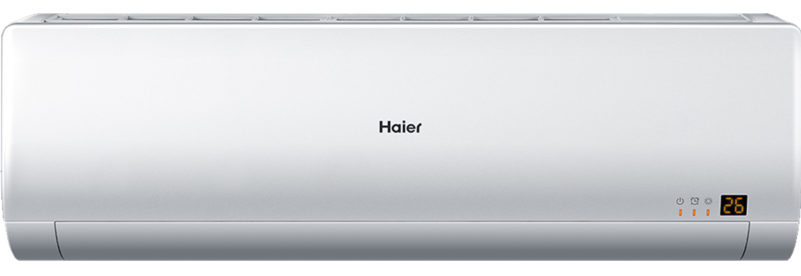

Haier Brezza
AS09NS3HRA, AS12NS3HRA
AS18NS3HRA, AS24NS3HRA
Elegant Brezza air conditioner with Turbo operation mode
The Brezza series is characterized by a high energy class (A ++ / A +) and the ability to transport air up to 12m.
Brezza wall air conditioners are equipped with a dust filter and automatic evaporator cleaning, which helps to keep the heat exchanger clean and prevents the formation of mold, bacteria, dust etc. The built-in Nano-aqua generator ionizes water molecules causing the bacteria to wipe out.
The most important features:
on / off card
providing air over long distances (up to 12 m)
energy class A ++ / A +
turbo mode
automatic cleaning of the evaporator
manufacturer’s warranty 3 years
| Model | AS09NS3HRA | AS12NS3HRA | AS18NS3HRA | AS24NS3HRA | ||
| cooling efficiency | W | 2,7 | 3,6 | 5,2 | 7 | |
| heating efficiency | W | 2,8 | 3,7 | 5,8 | 7,5 | |
| SEER | 6,4 | 6,1 | 6,2 | 6,1 | ||
| SCOP | 4,0 | 4,0 | 4,0 | 4,0 | ||
| Classes | cooling | A++ | A++ | A++ | A++ | |
| heating | A+ | A+ | A+ | A+ | ||
| Air flow | inside unit | m3/h | 600 | 650 | 900 | 1200 |
| Noise | cooling (Q/L/M/H) | db(A) | 20/26/33/38 | 21/27/34/39 | 28/35/40/44 | 30/37/43/47 |
| heating (Q/L/M/H) |
db(A) | 23/26/33/39 | 24/27/34/40 | 33/35/40/45 | 36/38/44/48 | |
| Inside unit sizes | width x depth x height | mm | 855 x 200 x 280 | 855 x 200 x 280 | 997 x 230 x 322 | 1115 x 243 x 336 |
| Weight | inside/outside unit | kg | 10 | 10 | 13 | 16 |
